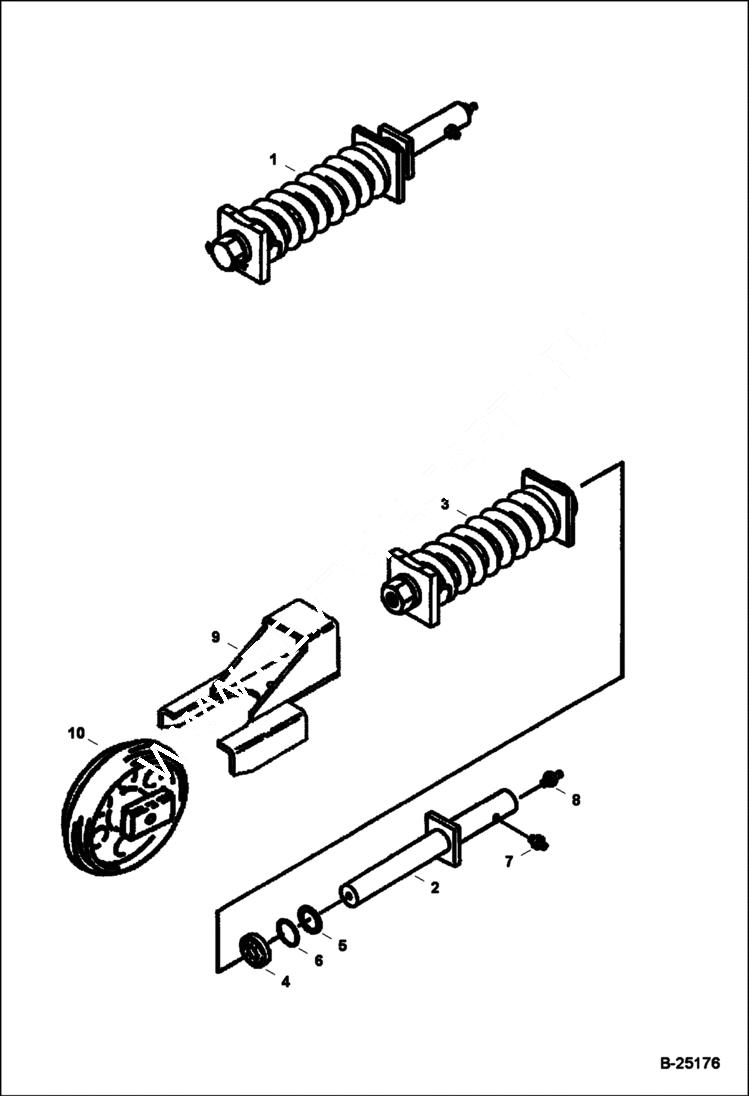

Запчасти Bobcat 220 RECOIL SPRING (Used W/Frame NAP 6539721 Only) UNDERCARRIAGE

1

6534880

SPRING ASSY. Ref. 2-8

2

6587422

SHAFT Was 6534885 - A

3

SPRING ASSY NLA - Order Ref. 1

4

1657085

SEAL

5

80K218

WASHER backup

6

58K218

O RING 10

7

6645812

SCREW, BLEED

8

6655752

FITTING 68,900 kpa (10,000 psi) - DO NOT SUBSTITUTE - Was 12H000015B - A

9

6589583

COVER Was 6533649 - A

10

6589009

IDLER See Illustration FRONT IDLER/ B17874 Was 6533626 - A
