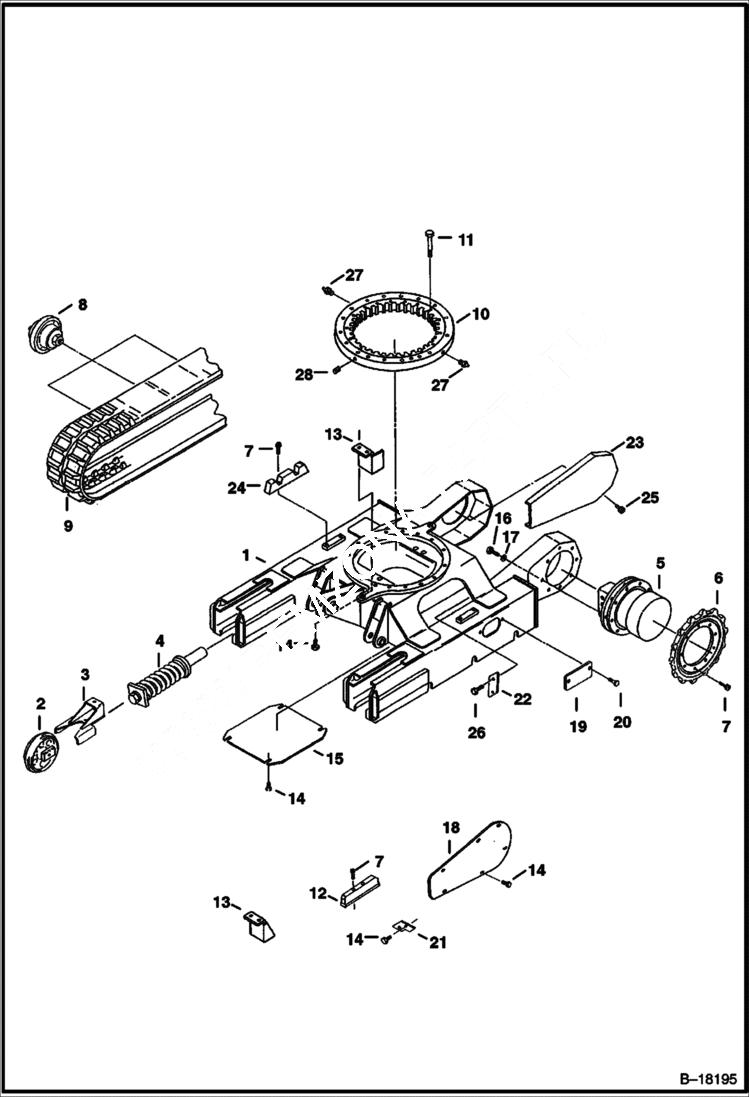

Запчасти Bobcat 220 UNDERCARRIAGE UNDERCARRIAGE

1

FRAME NLA - Order 6596099 (1) & 6589305 (2) - Was 6539721 - A

1

6596099

FRAME Was 6589282 - A

2

6589009

IDLER See Illustration FRONT IDLER/ B17874 Was 6533626 - A

3

6589538

YOKE Was 6533649 - A

4

6534880

SPRING ASSY. See Illustration RECOIL SPRING/ B25176 recoil - Use W/frame NLA 6539721

4

6589499

SPRING ASSY. See Illustration RECOIL SPRING/ B14351 recoil - Use W/frame 6596099

5

MOTOR See Illustration TRAVEL MOTOR/ D1922 See BTIE-049 NLA - travel - Was 6651892 - A

6

6539720

SPROCKET

7

3GM1025

BOLT

8

6533654

ROLLER See Illustration TRACK ROLLER/ C3143 track

9

TRACK, RUBBER See Illustration TRACKS/ NA6209

10

6652015

SWING BEARING W/Ref. 27 & 28 - 110 teeth on swing gear

10

6652969

SEAL BULK/FT swing bearing - bulk sold by the foot - order 5'

11

10CM1045

BOLT

12

6533657

PLATE slide - Use W/frame NLA 6539721

13

6539417

MOUNT for swivel joint 6658956

14

29CM816

SCREW

15

6533655

COVER

16

1CM1030

BOLT

17

6EM100

WASHER

18

6533658

COVER Use W/frame 6539721

19

6533656

COVER

20

29CM1020

BOLT

21

6533874

COVER Use W/frame NLA 6539721

22

6596203

COVER Use W/frame 6596099

23

6589305

COVER Use W/frame 6596099

24

6589639

PLATE slide - Use W/frame 6596099

25

26GM10200

BOLT

26

26GM8016

SCREW

27

6652970

GREASE FITTING Was 6533968 - A

28

6652962

SET SCREW
