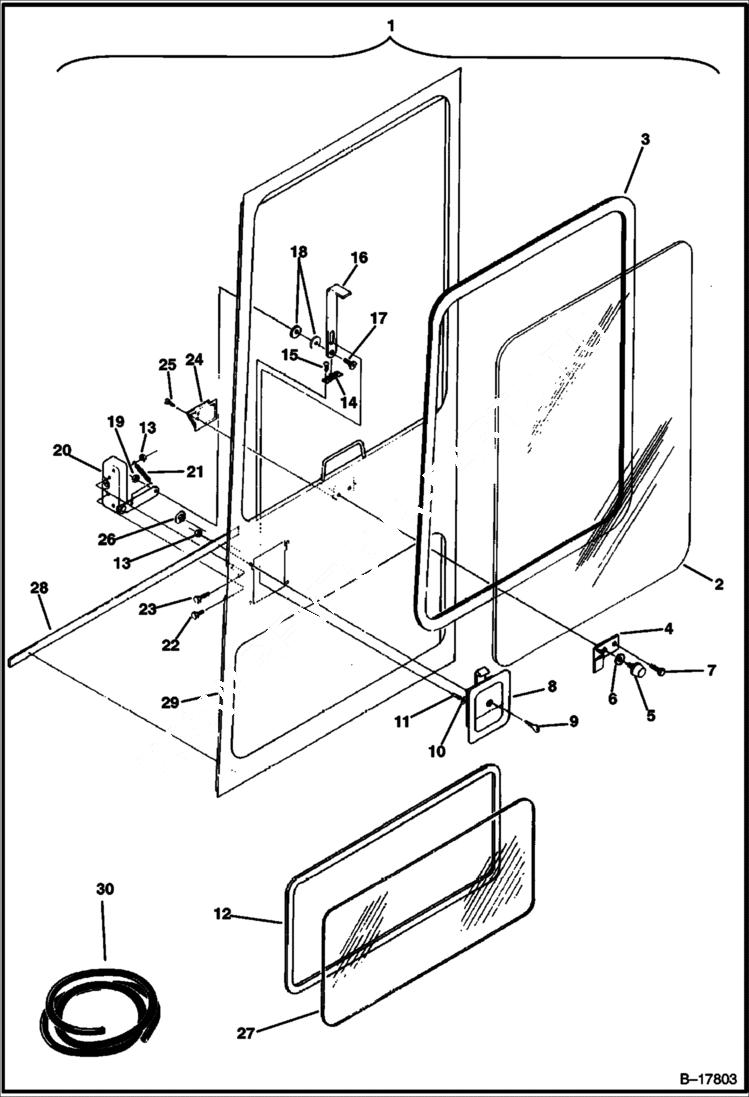

Запчасти Bobcat 220 OPERATOR CAB MAIN FRAME

1

6662022

DOOR assy. - Ref. 2-29

2

6654174

GLASS

3

MOULDING NLA - 108'' long - Order Ref. 30

4

6657097

STRIKER

5

6657098

BUMPER

6

WASHER NLA - Was 6662056 - A

7

6657099

BOLT

8

6661631

LATCH Door - Was 6661629 - D

9

6587458

KEY LL24

10

6E60

WASHER

11

6654154

BOLT striker

12

MOULDING NLA - 72'' (1829 mm) long - Order Ref. 30

13

85D4

NUT 5

14

6648413

BUSHING door

15

6532168

BOLT

16

6654171

CATCH

17

6534900

BOLT

18

6648414

WASHER

19

85D5

NUT 5

20

6648417

LATCH

21

6654147

SPRING

22

17C412

BOLT 5

23

17C418

BOLT

24

6654785

ASH TRAY

25

6654142

SCREW

26

PLUG NLA - Was 6648354 - A

27

6662058

GLASS

28

6654162

SEAL

29

DOOR NSS - Order 6662022 - Was 6654786 - A

30

6648405

SEAL Bulk - Order Per Foot
