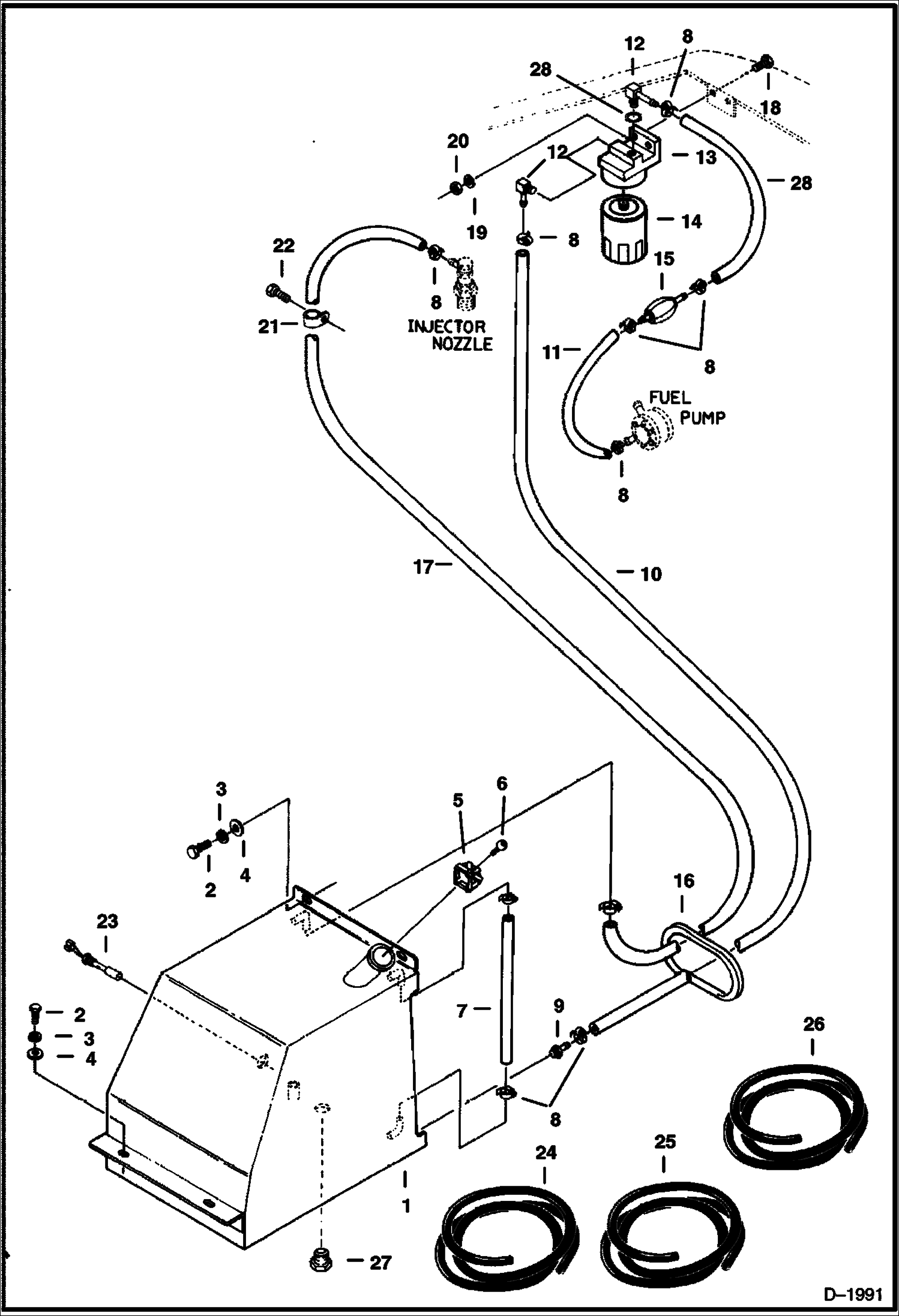

Запчасти Bobcat 220 FUEL SYSTEM ACCESSORIES & OPTIONS

1

6533930

TANK W/Ref. 27

2

1CM1020

BOLT

3

6EM100

WASHER

4

15EM100

WASHER

5

CAP NLA - locking - W/Ref. 6 - Code GC020 - order 661696 - Was 6654373 - A

5

6661696

CAP, FUEL LOCKING locking - order key separately code PK510

6

6654374

KEY

6

6587458

KEY code GC020 - code PK510

7

HOSE NLA - 12-14''(305-356mm) long - Order Ref. 24

8

42HS04

CLAMP, HOSE Was 6515575 - A

9

1317483

NIPPLE

10

HOSE NLA - 37''(940mm) long - Order Ref. 25

11

HOSE NLA - 33''(838mm) long - Order Ref. 25

12

6657083

ELBOW Was 6599488

13

6667353

FILTER ASSY W/Ref. 14 - Was 6657020 - A

13

6658180

PLUG, BLEED

14

6667352

FILTER, FUEL W/SEPARATOR 12 Was 6647773 - A

15

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long - A

16

6512067

GROMMET Was 6533975 - A

17

HOSE NLA - 58'' (1473mm) long - Order Ref. 26 )

18

1CM820

BOLT

19

15EM80

WASHER

20

1DM8

NUT

21

30H30

CLAMP

22

1CM1060

BOLT

23

6534833

SWITCH fuel level

24

DECAL NLA - Warning operational - Order Ref. 22 - WAS 6643360 - A

24

6653483

HOSE bulk - Sold Per Foot

25

6577822

HOSE bulk - sold per foot

26

6578169

HOSE bulk - sold per foot - 0.19'' ID

27

40K8

PLUG

28

79K5

O RING 10 flat boss face

28

99K5

O-RING tapered boss face
