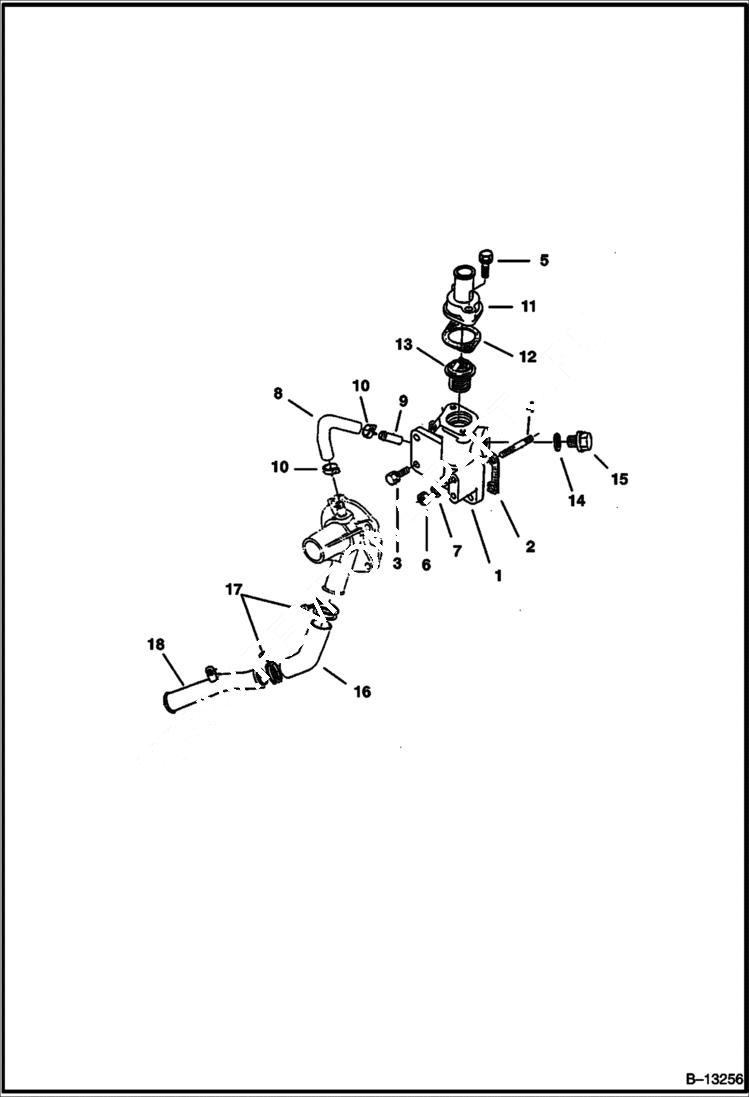

Запчасти Bobcat 220 WATER FLANGE & THERMOSTAT POWER UNIT

1

6649316

FLANGE W/Ref. 9

2

6666777

GASKET See Illustration UPPER GASKET KIT/ C3243 Included W/upper gasket kit - Was 6599110 - A

3

1CM616

SCREW Was 4CM616 - A

4

6652746

STUD

5

4CM635

BOLT

6

1DM6

NUT

7

6EM60

WASHER, SPRING

8

6599133

HOSE

9

6652745

PIPE Press in Type - Was 6649537 - A

10

6680580

CLAMP Was 6652748 - A

11

6599147

OUTLET

13

6599036

THERMOSTAT

14

6653562

GASKET

15

6649536

PLUG

16

6599999

HOSE

17

6599040

BAND, PIPE

18

6657053

PIPE
