Запчасти Bobcat 220 STARTER (Optional Service Starter) (Sealed) ELECTRICAL SYSTEM

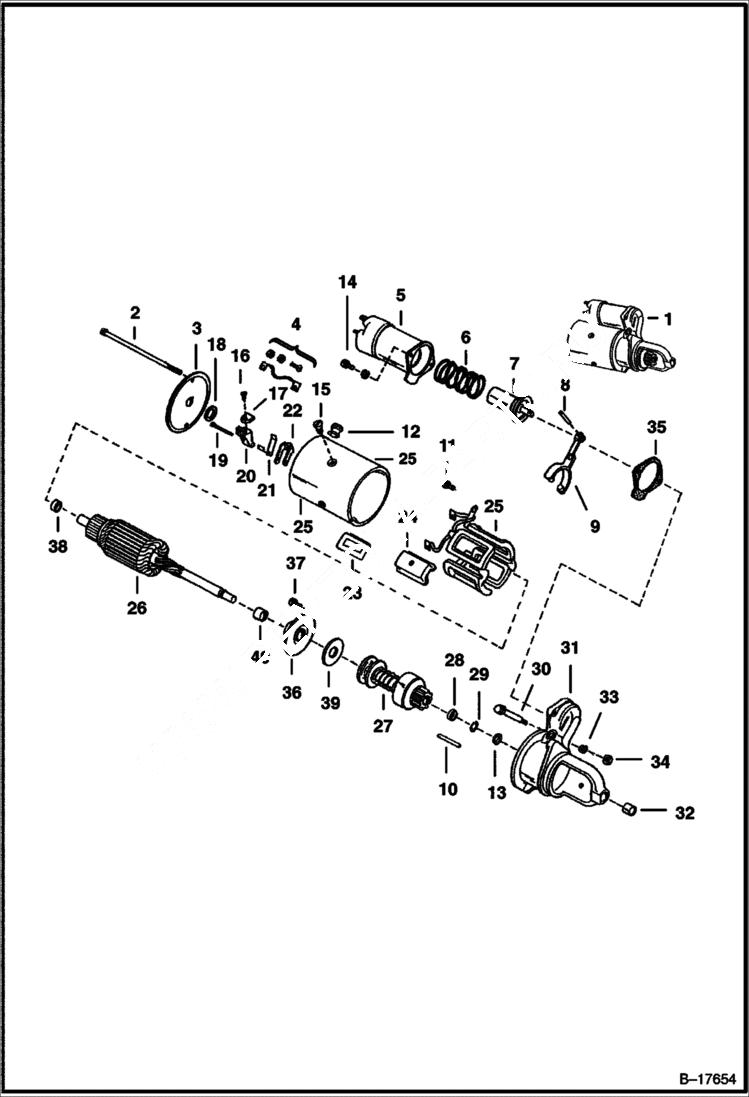

Схема запчастей Bobcat 220 - STARTER (Optional Service Starter) (Sealed) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

STARTER NLA - sealed - Order 6671014 - Was 6658841 - A

2

880609

BOLT

3

999460

FRAME W/Bushing

4

877650

SUPPORT

5

6599449

SOLENOID

6

888968

SPRING

7

6658903

PLUNGER Was 6630417 - A

8

999472

PIN

9

896126

LEVER Was 6658903 - A

10

850313

PIN

11

60G1008

SCREW Was 884572 - A

12

999459

GROMMET

13

850363

COLLAR

14

43G412

SCREW

15

859377

SCREW

16

85G808

SCREW

17

871518

BRUSH Was 871581 - A

18

WASHER NLA - Was 860673B - A

19

871521

PIN

20

6630402

HOLDER Was 871515 - A

21

6656399

SPRING Was 871517B - A

22

880603

HOLDER

23

6656404

INSULATOR

24

POLE SHOE NSS

25

6658901

FIELD COILS Was 6658900 - A

26

6658925

ARMATURE

27

6658902

DRIVE Was 6598231 - A

28

RING NLA - Was 878608 - A

29

942142

SNAP RING

30

884576

BOLT.

31

6631616

DRIVE housing - Was 6658924 - A

32

860669

BUSHING D.E.

33

23E5

L WASHER Was 991218B - A

34

991219

NUT

35

6658926

BOOT

36

6630411

PLATE center bearing

37

907827

SCREW Was 6598741 - A

38

874935

BUSHING

39

6630412

WASHER

Выбрано товаров: 39
