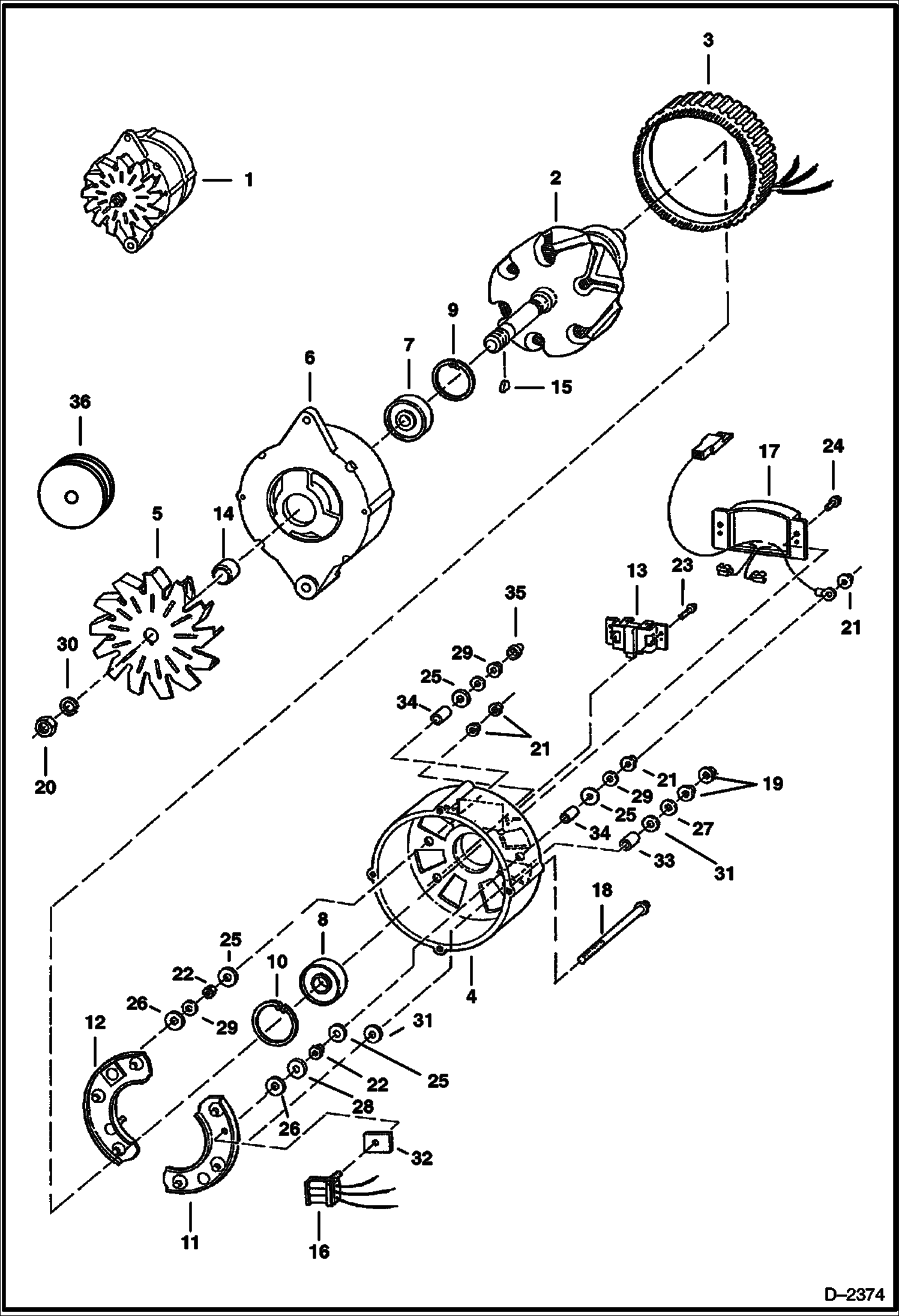

Запчасти Bobcat 220 ALTERNATOR (Prestolite) ELECTRICAL SYSTEM

1

ALTERNATOR NLA - Prestolite, 8AR2015F - Order 6667811 - Was 6652944 - A

1

6667811

ALTERNATOR Prestolite 8AR2160F

2

6669246

ROTOR ASSY

3

6669247

STATOR ASSY

4

6668839

HOUSING Rear

5

6634083

FAN

6

6669245

HOUSING Front - 8AR2015F

6

6668833

HOUSING Front - 8AR2160F

7

1991037

BEARING Front

8

1991038

BEARING Rear

9

6634084

RETAINER Bearings, Front

10

896992

RETAINER Bearings, Rear

11

6668837

DIODE Negative

12

6669248

DIODE, RECTIFIER Positive

13

6669249

BRUSH ASSY 8AR2015F

13

6668841

BUSH 8AR2160F

14

6668832

SPACER Fan & Pulley

15

6J405

KEY

16

6668851

DIODE Trio

17

6668843

REGULATOR Voltage

18

6634091

BOLT Thru

19

6635498

NUT Lock

20

6635526

NUT Pulley

21

6668852

NUT Hex

22

6668845

NUT Hex

23

6668842

SCREW

24

6668840

SCREW

25

6668844

WASHER Washer

26

896990

WASHER Washer

27

6668853

WASHER Flat

28

6635531

WASHER Flat

29

6668854

WASHER Flat

30

6665557

RING, BACK-UP Lock

31

6668846

WASHER Insulator

32

897245

INSULATOR Square

33

6668849

SLEEVE Sleeve

34

6668850

SLEEVE Insulator

35

6668847

CAP Stud

36

6634856

PULLEY 2.86'' (72.6mm) O.D.
