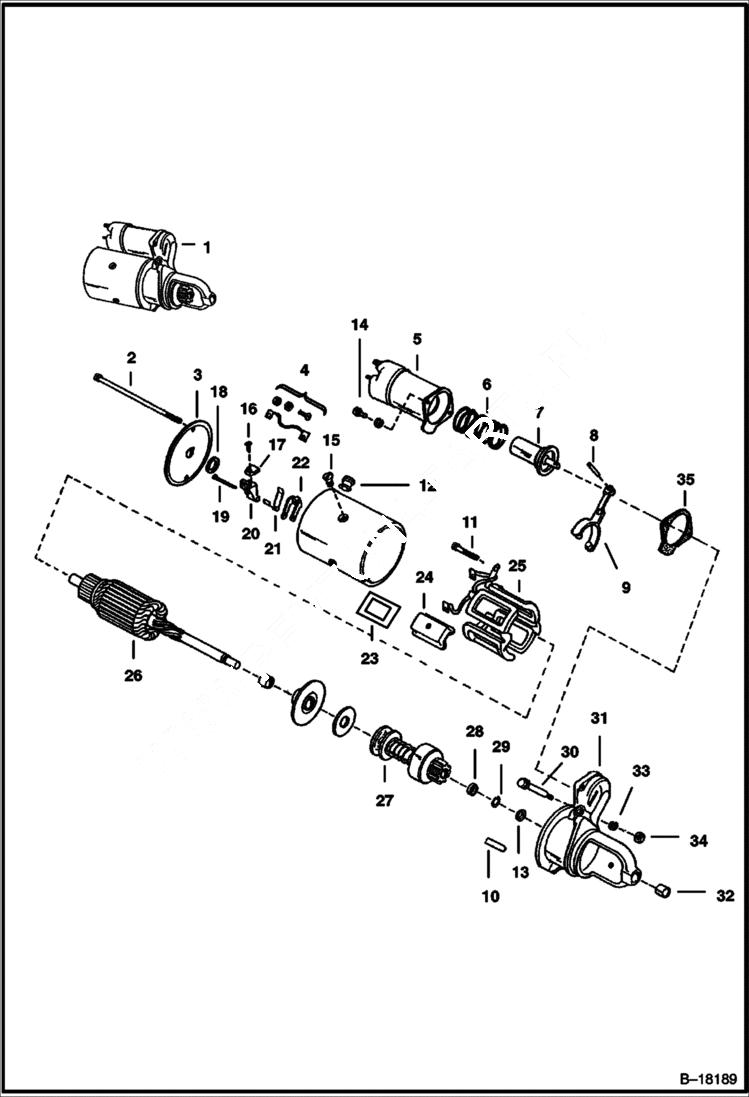

Запчасти Bobcat 220 STARTER ELECTRICAL SYSTEM

1

STARTER NLA - 1992821 - Order 6671014

1

6599152REM

STARTER 1992821 - Remanufactured

1

6671014REM

STARTER 10454417 - Remanufactured

1

STARTER NLA - 10455340 - Order 6671014 - Was 6658835 - A

2

880609

BOLT

3

999460

FRAME W/Bushing

4

877650

SUPPORT

5

6599449

SOLENOID Was 6599559 - A

6

888968

SPRING Was 906910B - A

7

6658903

PLUNGER Was 6630417 - A

8

999472

PIN

9

896126

LEVER

10

850313

PIN

11

6660147

SCREW Was 884572 - A

12

999459

GROMMET

13

850363

COLLAR

14

43G412

SCREW

15

859377

SCREW

16

85G808

SCREW

17

871518

BRUSH

18

WASHER NLA - Was 860673B - A

19

871521

PIN

20

6630402

HOLDER Was 871515 - A

21

6656399

SPRING Was 871517B - A

22

880603

HOLDER

23

INSULATOR NSS - Was 6656404 - A

24

POLE SHOE NSS

25

999458

COIL 1998281

25

6658901

FIELD COILS 10455340 - Was 6658900 - A

26

884569

ARMATURE 1998281

26

6658898

ARMATURE 10455340

27

6598231

DRIVE Was 887714B - A

28

RING NLA - Was 878608 - A

29

942142

SNAP RING

30

884576

BOLT.

31

DRIVE NLA - housing - Was 6598476 - A

32

860669

BUSHING D.E.

33

23E5

L WASHER Was 991218B - A

34

NUT NLA - Was 991219B - A

35

991374

GASKET
