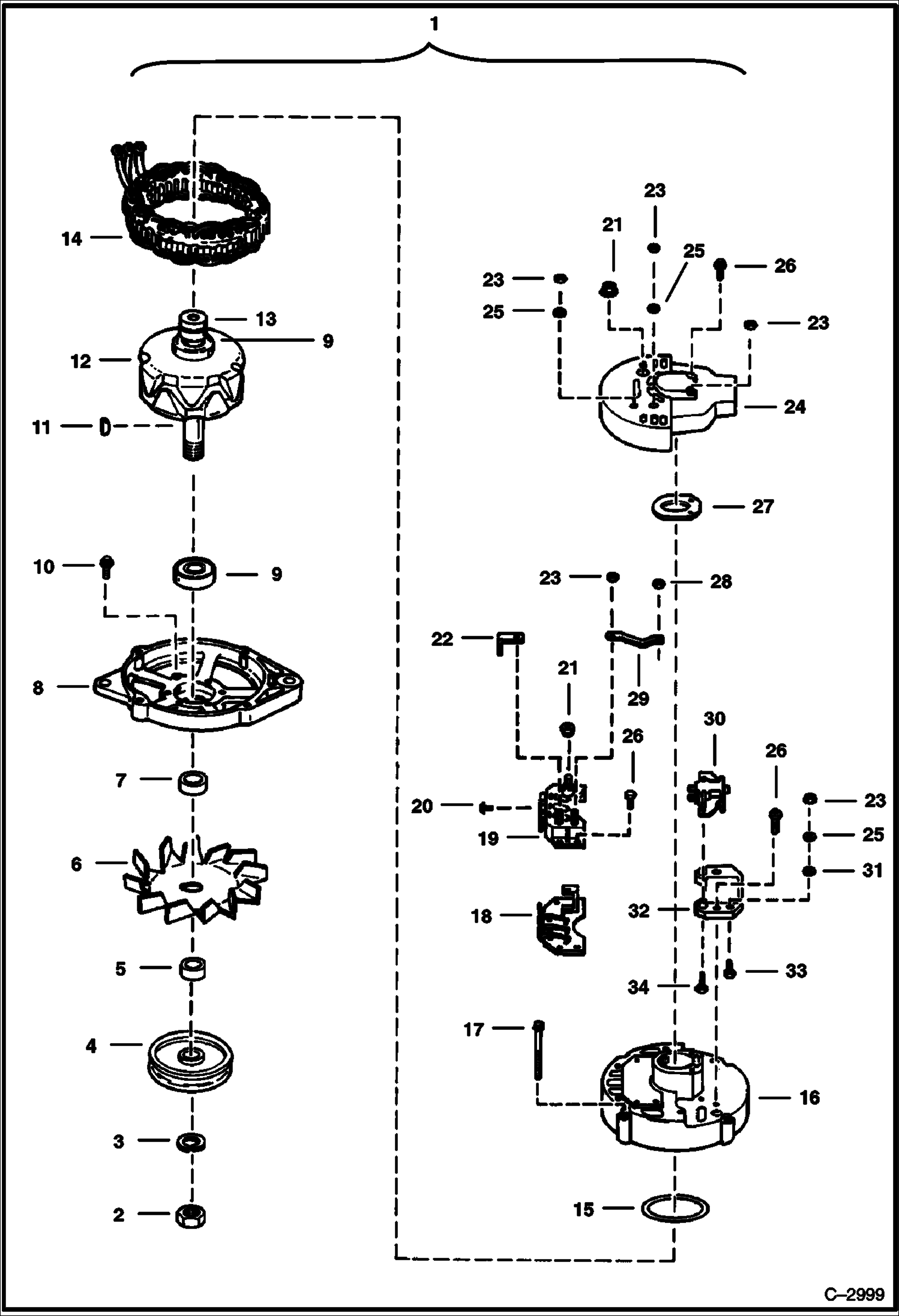

Запчасти Bobcat 220 ALTERNATOR (Motorola) ELECTRICAL SYSTEM

1

ALTERNATOR NLA - Order 6667811 - Motorola

2

6635526

NUT

3

6635557

WASHER

4

6634856

PULLEY 2.86'' (72,6 mm) O.D.

4

6520554

PULLEY 4'' (101,6 mm) O.D.

5

6634950

SPACER

6

6634083

FAN

7

899158

SPACER

8

6632948

HOUSING

9

1991037

BEARING

10

6635528

SCREW

11

6J405

KEY

12

6634399

ROTOR

13

6634857

SLIP RING

14

6634854

STATOR

15

6599626

RETAINER

16

6634855

HOUSING

17

6635455

BOLT

18

6634868

DIODE

19

6634858

DIODE

20

84G1605

SCREW

21

6635498

NUT

22

6634948

STRAP

23

6635515

NUT

24

6634931

COVER

25

6635531

WASHER

26

84G1612

SCREW

27

6634892

GASKET

28

6635522

NUT

29

6634886

STRAP

30

6634891

BRUSH

31

6635564

WASHER

32

6634952

REGULATOR REF. 23, 25, 31 & 33

33

45G812

SCREW

34

6635529

SCREW
