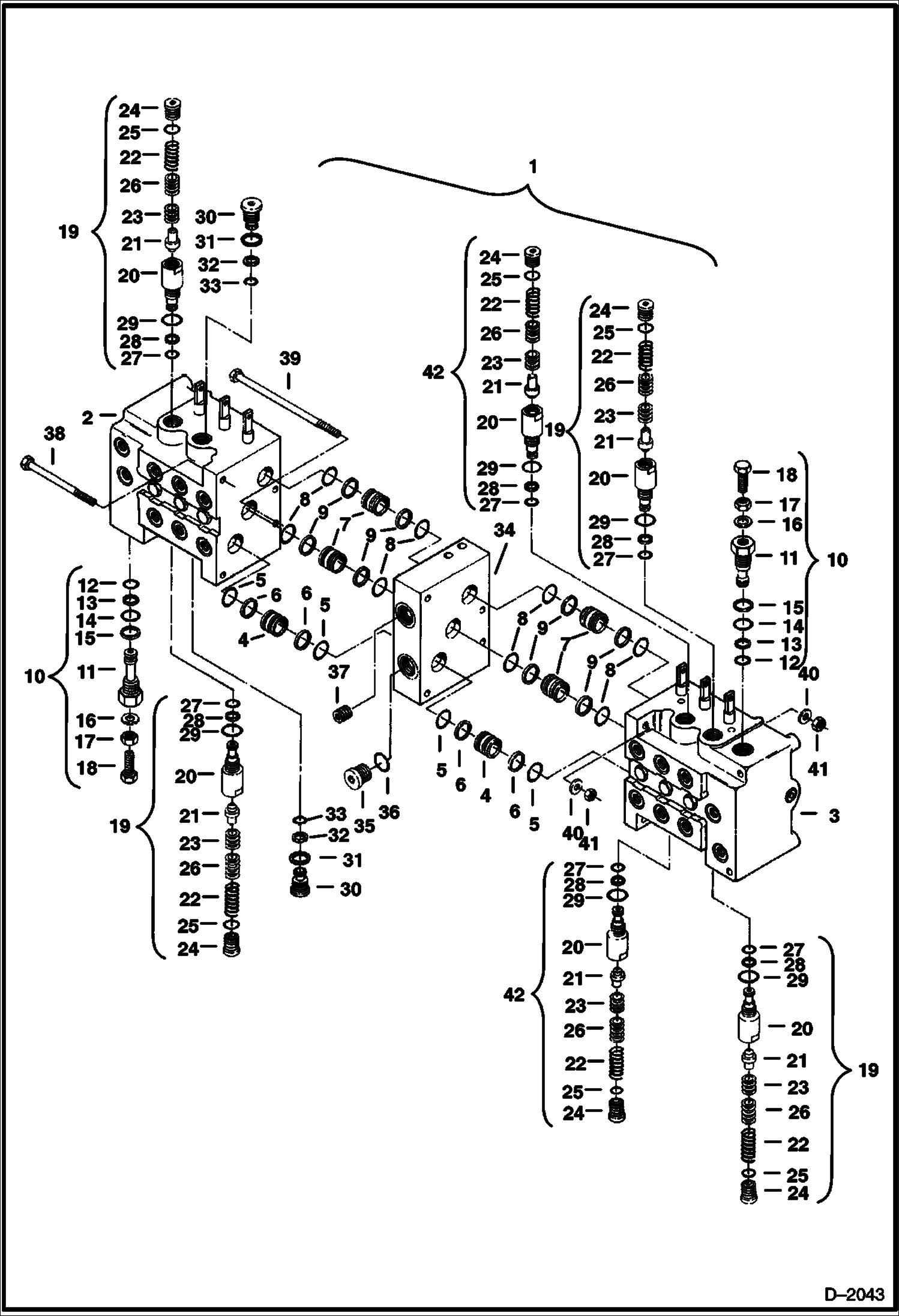

Запчасти Bobcat 220 CONTROL VALVE ASSEMBLY (6 Spool) HYDRAULIC SYSTEM

1

VALVE NLA - assy - W/Ref. 2-22 - Was 6655456 - A

2

6656289

VALVE See Illustration CONTROL VALVE/ D2042

3

6656290

VALVE See Illustration VALVE SECTION/ C3200

4

6656294

TUBE W/Ref. 5 & 6

5

6656441

O-RING

6

6656440

BACK-UP RING

7

6656293

TUBE W/Ref. 8 & 9

8

6656443

O-RING

9

6656442

BACK-UP RING

10

6656295

RELIEF VALVE assy. - W/Ref. 11-18 - 2400 PSI

10

6656281

SEAL KIT W/Ref. 12-18

11

HOUSING NSS

12

O-RING NSS

13

BACK-UP RING NSS

14

O-RING NSS

15

BACK-UP RING NSS

16

RING NSS

17

NUT NSS

18

BOLT NSS

19

6656292

RELIEF VALVE assy. - W/Ref. 20-29 - 2850 PSI

19

6656283

SEAL KIT W/Ref. 25-29

20

HOUSING NSS

21

POPPET NSS

22

SPRING NSS

23

SHIM NSS - .021 inch

24

6656446

PLUG W/Ref. 25

25

6656432

O-RING

26

SHIM NSS - .0035 inch

27

O-RING NSS

28

BACK-UP RING NSS

29

O-RING NSS

30

6656439

RELIEF PLUG assy. - W/Ref. 31-33 - Qty. 2

31

6656437

O-RING

32

6656436

BACK-UP RING

33

6656438

O-RING

34

6656291

HOUSING Was 6656091 - D

35

6656451

PLUG W/Ref. 36

36

6656437

O-RING

37

6656287

PLUG

38

6656285

BOLT

39

6656284

BOLT

40

6656286

WASHER

41

6656288

NUT

42

6658685

RELIEF VALVE Assy. - W/Ref. 20-29 - 3500 PSI - Was 6661388 - A
