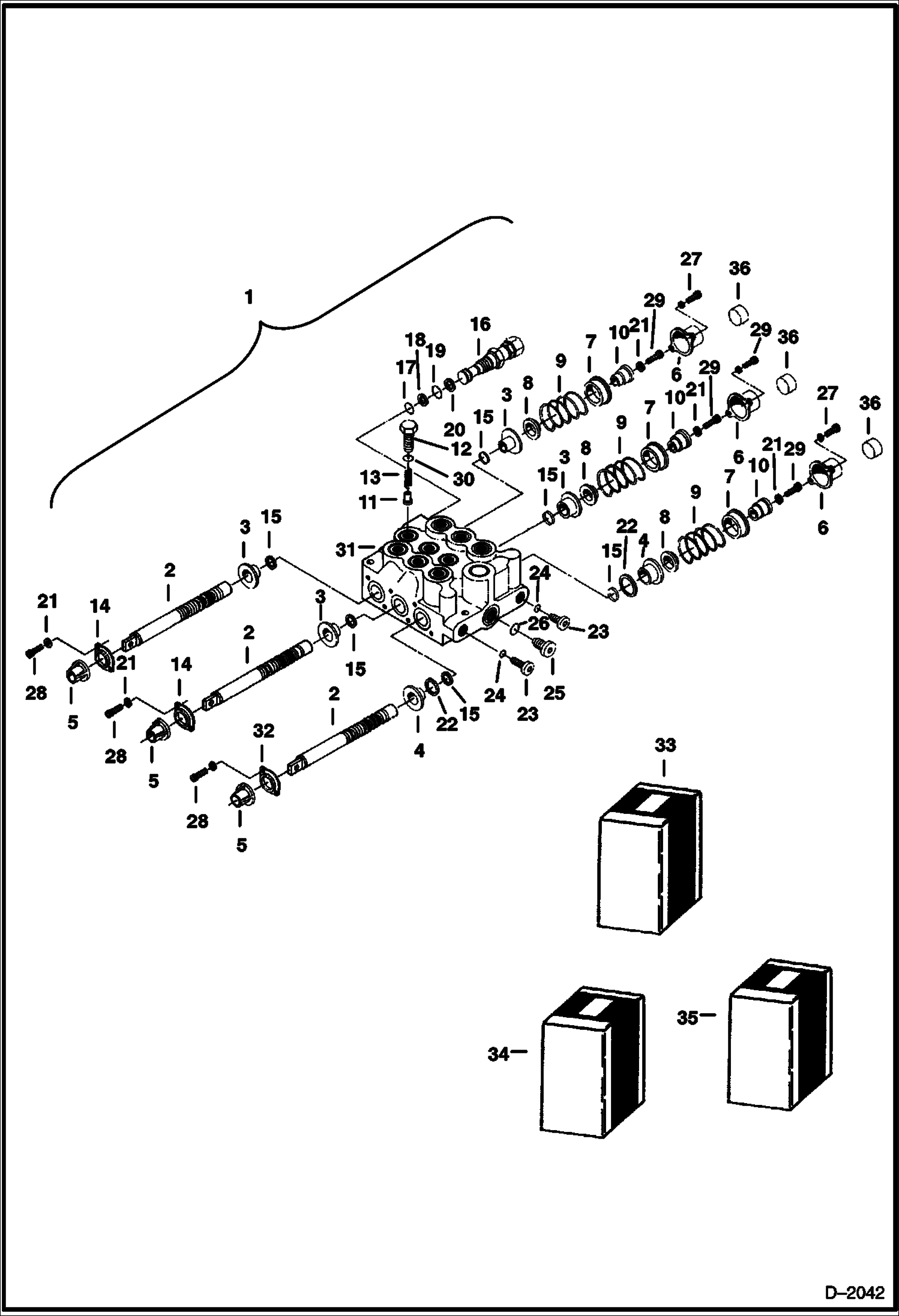

Запчасти Bobcat 220 CONTROL VALVE (3-Spool) (Melroe) (Factory supplied Valve) HYDRAULIC SYSTEM

1

See Illustration CONTROL VALVE/ B17649 NLA - ASSY.-REF. 2-31-VALVE 6588779 - WAS 6588779 - A

2

SPOOL NSS

3

6538466

BUSHING Was 6534576 - A

4

6538471

BUSHING Was 6536398 - A

5

6587763

BOOT Was 6583727 - C

6

BONNET NLA - W/.25flange - order 6587633 , 6662848 & (2) 69G000414B - Was 6592097 - A

6

7101345

BONNET, DETENT HYD VALVE W/.50'' flange - Was 6587633 - C

7

6592100

COLLAR

8

7211397

WASHER, SPRING Was 6587523 - A

9

6587580

SPRING Was 6592106 - A

10

6592109

ADAPTER

11

6592115

SEAT

12

6592116

NUT

13

6592117

SPRING, LOAD CHECK

14

6592123

RETAINER

15

6586280

VALVE See Illustration CONTROL VALVE/ D2042 Was 6536399 - A

15

6665089

SEAL lip seal - Was 6659554 - A

16

VALVE NLA - main - W/Ref. 17-20 - 2300 PS - Pressure preset at factory - Was 6676199 - A

16

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

17

O-RING NSS

18

WASHER NSS - back-up

19

O-RING NSS

20

WASHER NSS - back-up

21

22E4

WASHER

22

25K30102

O RING 10

23

47K5

PLUG W/Ref. 24

24

91F5

O-RING

25

47K7

PLUG W/Ref. 26

26

79K10

O RING 10 Was 91F7 Was 91F7 - A

27

6588164

SCREW Was 69G000412B - B

28

6588165

SCREW Was 73G000410B - B

29

6588166

SCREW Was 74G000416B - B

30

79K8

O RING 10

31

HOUSING NSS

32

6537743

RETAINER

33

6661328

SEAL KIT Relief valve - W/Ref. 17-20 - Was 6592474 - D

34

6816718

SEAL KIT complete - W/Ref. 5, 15, 17, 18, - Was 6596737 - A

35

6816250

KIT, SEAL See BTI374 - for 1 spool - W/Ref. 5, 15 & 27 - Was 6661315 - A

35

6646372

SEAL quad ring seal

36

6662848

CAP Use with Bonnet w/.50'' flange
