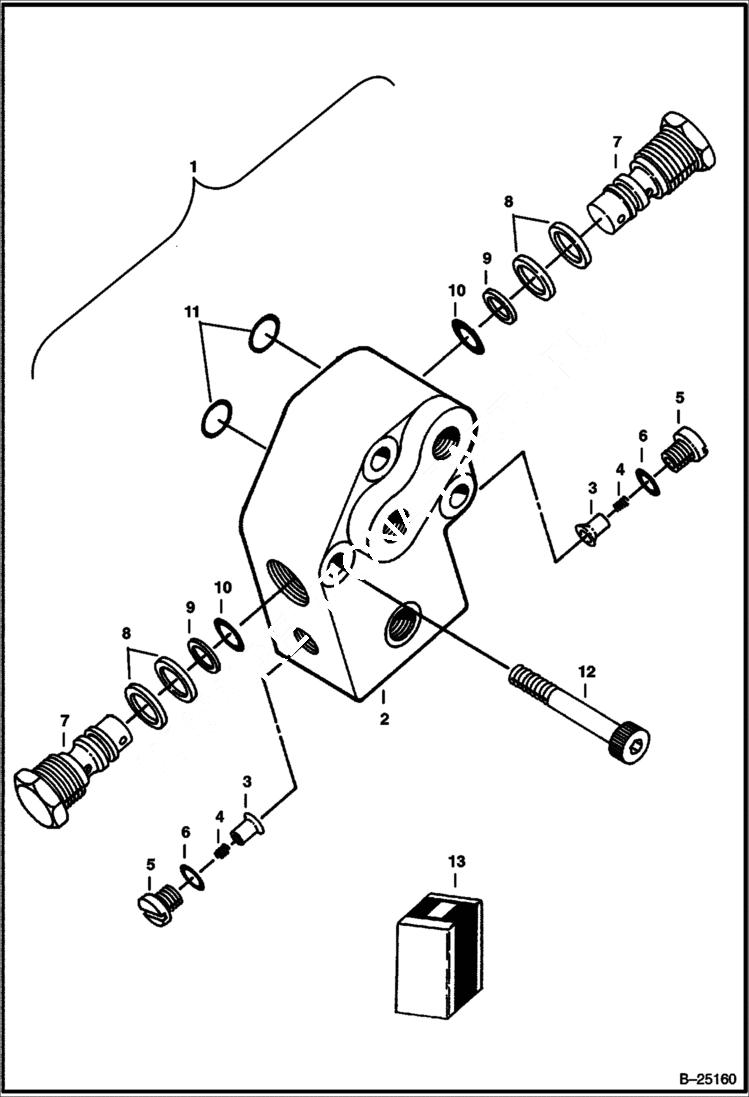

Запчасти Bobcat 220 CROSSOVER RELIEF VALVE HYDRAULIC SYSTEM

1

6656374

VALVE assy. - W/Ref. 2-11 - Was 6656371 - A

2

HOUSING NSS

3

994793

POPPET

4

6510047

SPRING

5

6656375

PLUG W/Ref. 6

6

O-RING NSS

7

6660284

RELIEF VALVE assy. - W/Ref. 8-10 - Was 6656378 - C

8

SEAL NSS

9

BACK-UP RING NSS

10

O-RING NSS

11

25K30022

O RING 10

12

6656376

BOLT

13

6657100

SEAL KIT W/Ref. 6 & 8-10
