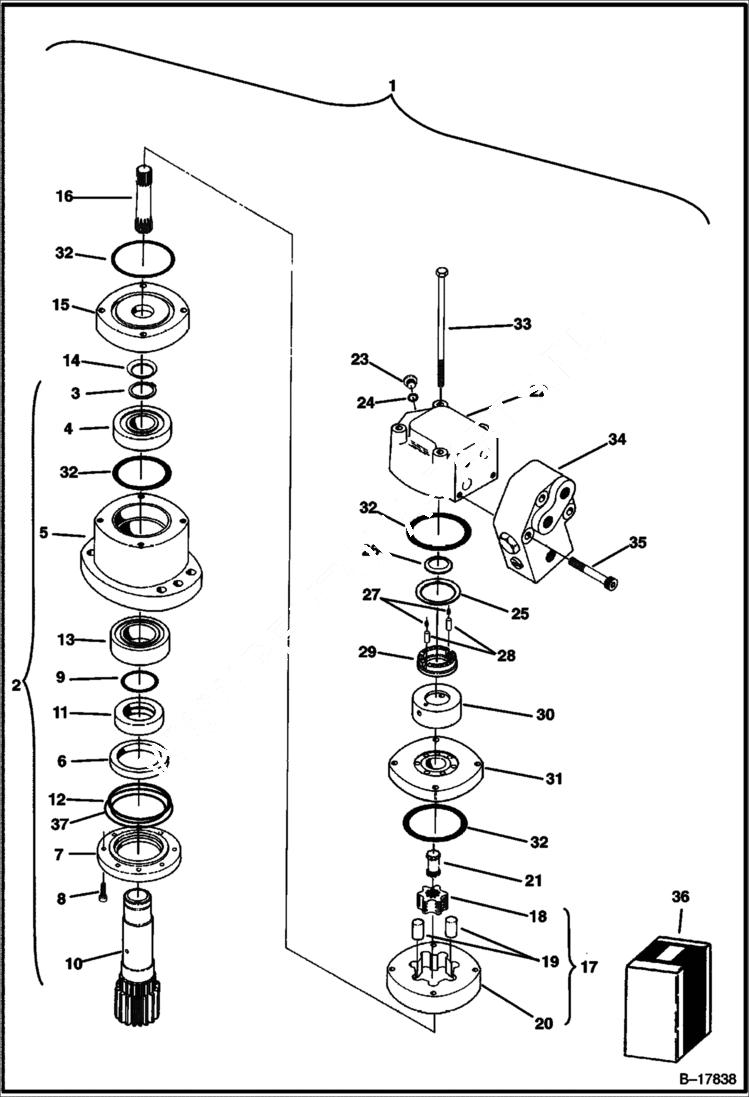

Запчасти Bobcat 220 SWING MOTOR (Model #144 - 1002 - 006) HYDRAULIC SYSTEM

1

SWING MOTOR NLA - assy. - W/Ref. 2-33 - Order 6669539

2

SHAFT See BTIE-013 NLA - assy. - W/Ref. 3-13 - Was 6659995 - A

3

SNAP RING NLA - Order Ref. 2 - Was 6656359 - A

4

BEARING NLA - Order Ref. 2 - Was 6656360 - A

5

HOUSING NLA - Order Ref. 2 - Was 6656361 - A

6

6656362

SEAL WSeal Kit - Ref. 36 - Was NLA - D

7

6656363

RETAINER seal Order Ref. 2 - Was NLA - D

8

21G1010

BOLT Was 6658701 - A

9

O-RING NSS - W/Ref. 36 - Was 6656365 - A

10

SHAFT NLA - Order Ref. 2 - 16 tooth gear - Was 6656366 - A

11

SLEEVE seal - Order Ref. 2 - Was 6657101

12

6513537

O-RING WSeal Kit - Ref. 36 - Was NLA - D

13

BEARING NLA - Order Ref. 2 - Was 6657102 - A

14

SEAL NLA - Order 6690987 - Was 1992098 - A

15

6651956

PLATE

16

6630032

SHAFT

17

6656367

GEROLER assy. - W/Ref. 18-20 - Was 6656362 - D

18

STAR NSS

19

ROLLER NSS

20

RING NSS

21

1992084

DR VALVE

22

6632289

HOUSING

23

1992104

PLUG W/Ref. 24

24

91F3

O-RING WSeal Kit - Ref. 36

25

SEAL NLA - Order Ref. 36 seal kit - Was 6653300 - A

26

1992100

SEAL

27

1992088

SPRING

28

1992102

PIN

29

6630027

BALANCE RING

30

6632288

VALVE

31

6656368

PLATE

32

6662955

SEAL WSeal Kit - Ref. 36 - Was 1992096B - A

33

6632349

BOLT

34

VALVE See Illustration CROSSOVER RELIEF VALVE/ B25160 assy - Was 6656371 - A

35

BOLT See Illustration CROSSOVER RELIEF VALVE/ B25160

36

6658383

SEAL KIT W/Ref. 6, 9, 12, 14, 24, 25, 26 & 32 - Was 6720471 - A

37

6673869

WASHER back-up - W/seal Kit - Ref. 36
