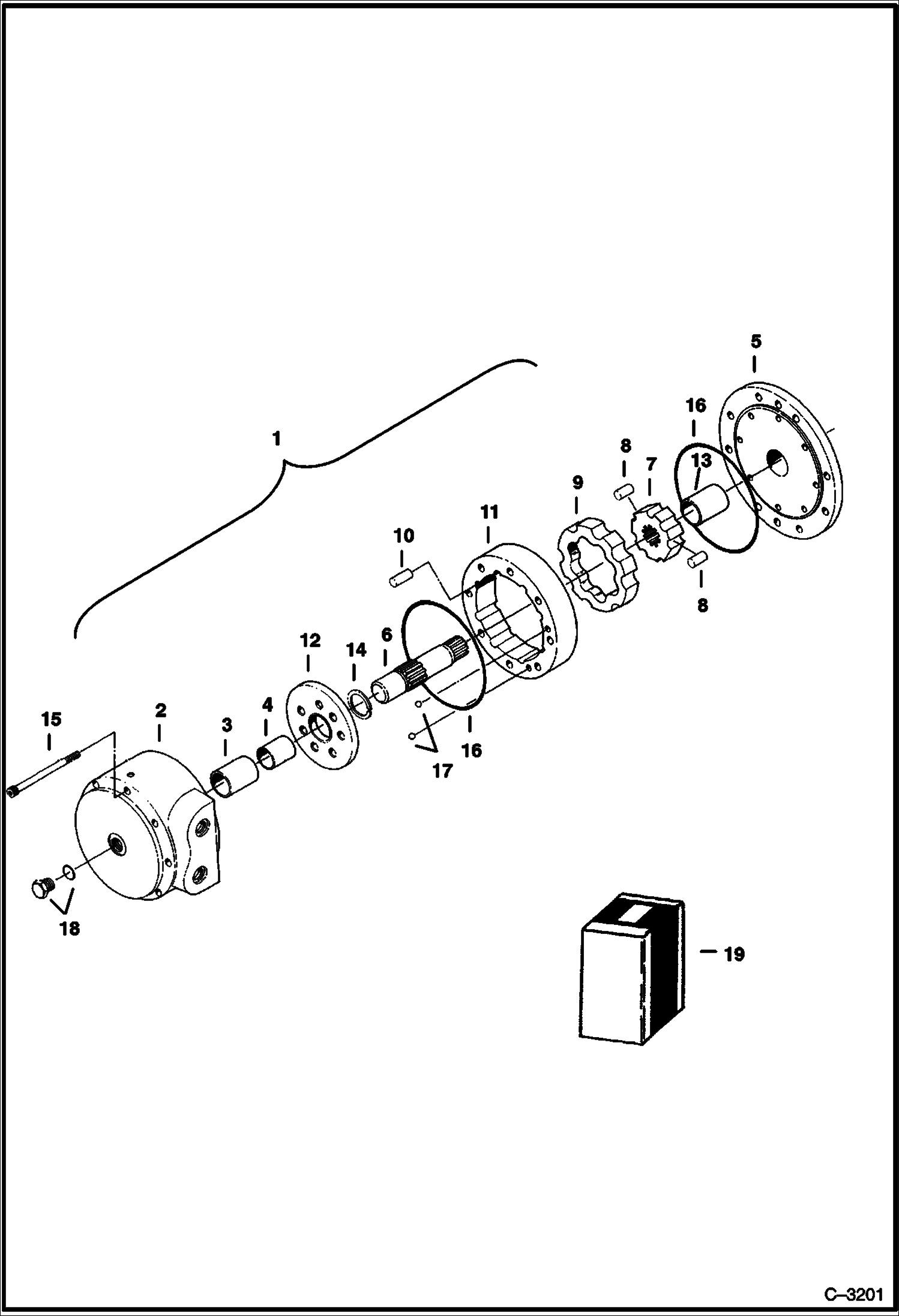

Запчасти Bobcat 220 TRAVEL MOTOR (S/N 508212001-12929) HYDRAULIC SYSTEM

1

MOTOR W/Ref. 2-18 - Was 6656474 - A

2

6657249

HOUSING W/Ref. 3 & 4

3

BUSHING NSS

4

BUSHING NSS

5

6657250

FLANGE

6

6657251

SHAFT

7

ROTOR NSS - Order Ref. 19 - Was 6657252 - A

8

PIN NSS - Order Ref. 19 - Was 6657253 - A

9

GEAR NSS - Order Ref. 19 - Was 6657254 - A

10

PIN NSS - Order Ref. 19 - Was 6657255 - A

11

RING NSS - Order Ref. 19 - Was 6657256 - A

12

PLATE NLA - 6657257 - A

13

6657258

BUSHING

14

6657259

SNAP RING

15

6657260

BOLT

16

6657261

O-RING

17

6657262

BALL

18

6657263

PLUG W/O-ring

19

ROTOR KIT W/Refs. 7, 8, 9, 10 & 11 NLA - W/Refs. 7, 8, 9, 10 & 11 - Was 6657707 - A
