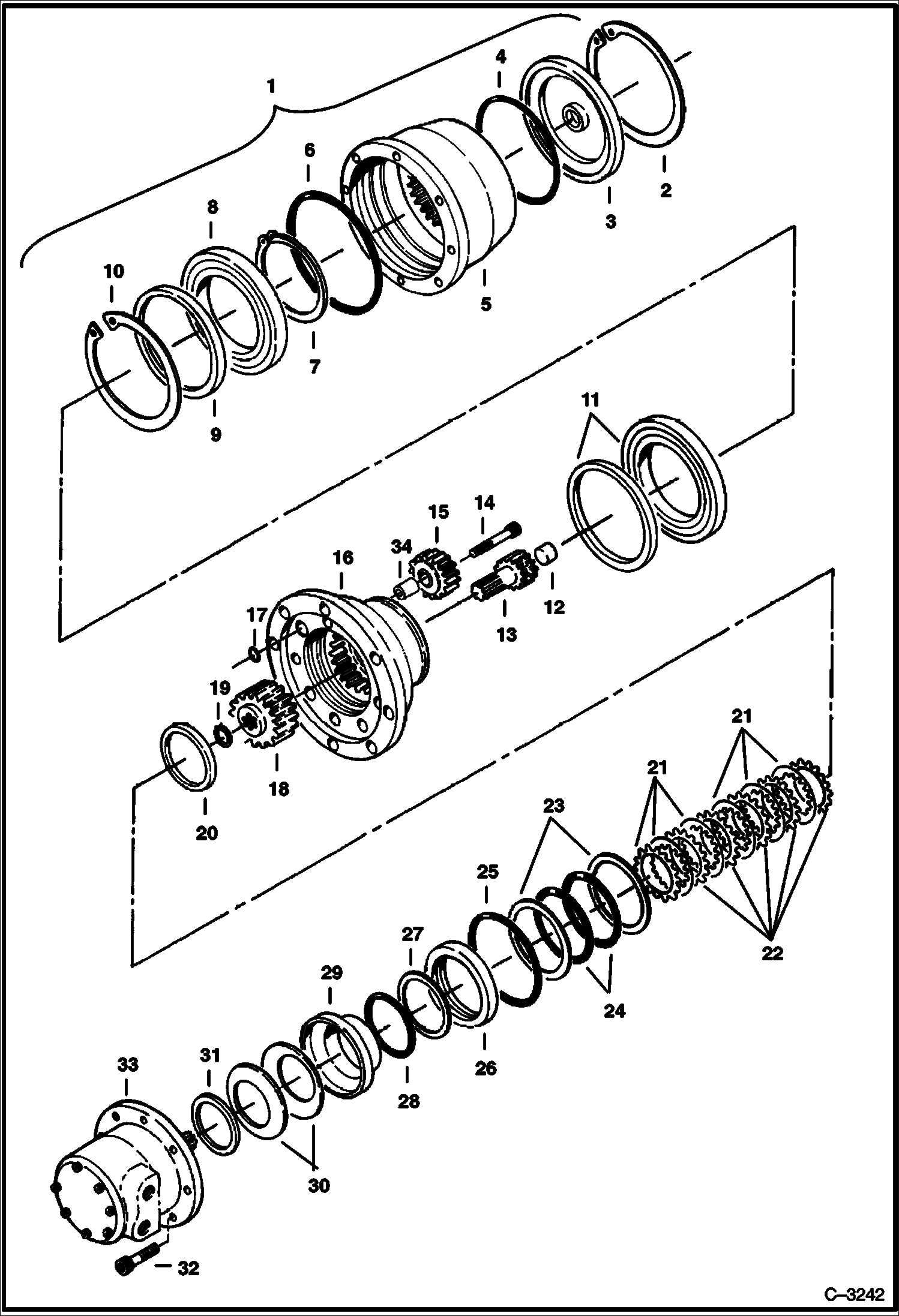

Запчасти Bobcat 220 TRAVEL MOTOR (With Brake) (S/N 508212286-12929) HYDRAULIC SYSTEM

1

TRAVEL MOTOR See BTIE-080 W/Ref. 2-33 - Was 6658535 - A

2

SNAP RING NLA - Was 6656453 NLA - Was 6656453 - A

3

COVER NLA - Was 6656454 - A

4

O-RING NLA - Was 6656455 - A

5

HOUSING NLA - Was 6656456 - A

6

6656457

O-RING

7

6656458

SNAP RING

8

6656459

BEARING

9

6656460

SPACER

10

6656461

SNAP RING

11

6656462

SEAL & BEARING assy - 2 piece - Was 6686215 - D

12

SPACER NLA - Was 6656463 - A

13

6656464

GEAR

14

6656465

BOLT

15

6656466

GEAR ASSY. INCLUDES GEAR, NEEDLE BEARINGS, THRUST WASHERS, SNAP RING & Ref. 34

16

6656467

HOUSING Includes Shaft - Ref. 34

17

6656468

O-RING

18

6658373

GEAR

19

6658367

SNAP RING

20

6658376

BUSHING

21

6658375

DISC internal tooth

22

6658374

DISC external tooth

23

6658377

BACK-UP RING

24

6658378

O-RING

25

6656471

O-RING

26

6658372

PISTON BUSHING

27

6658366

BACK-UP RING

28

6658371

O-RING

29

6658370

PISTON

30

SPRING NLA - control spring - Was 6658369 - A

31

6659251

WASHER Was 6658368 - A

32

6656472

BOLT

33

MOTOR See Illustration TRAVEL MOTOR/ C3201 NLA - Was 6656474 - A

34

SHAFT NLA - pressed into ref. 16 - Order Ref. 16 - Was 6662305 - A
