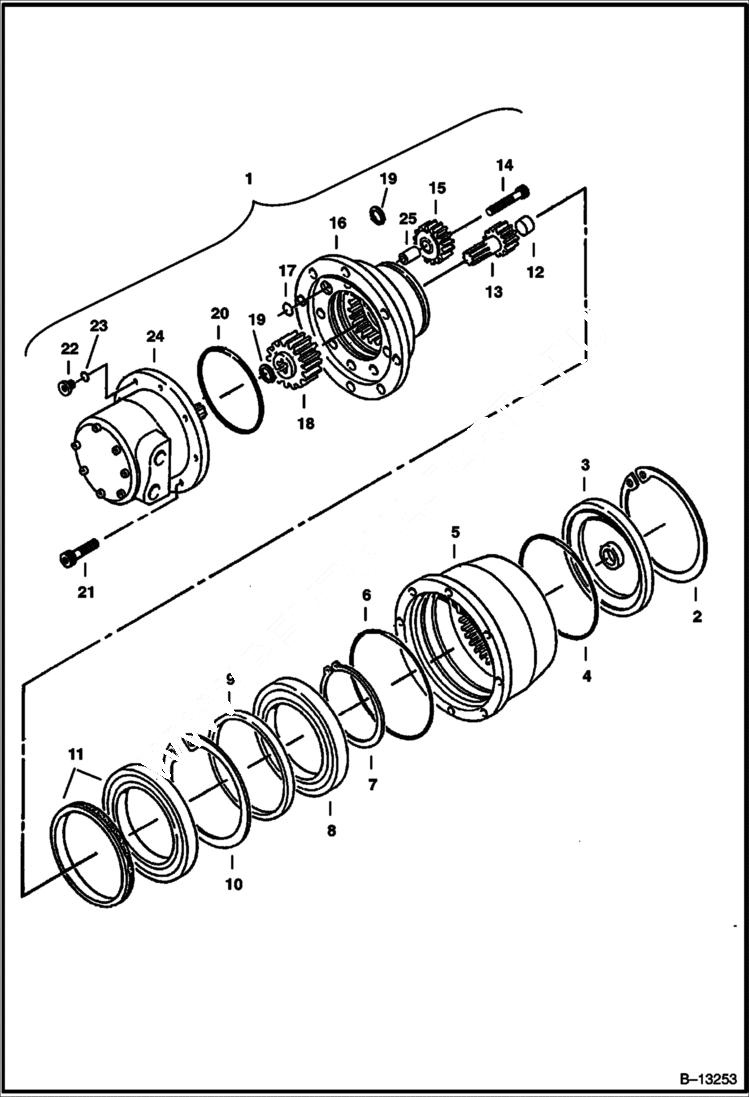

Запчасти Bobcat 220 TRAVEL MOTOR (W/O Brake) (S/N 508212001-12285) HYDRAULIC SYSTEM

1

MOTOR See BTIE-080 Ref. 2-24 - Was 6655458 - A

2

SNAP RING NLA - Was 6656453 NLA - Was 6656453 - A

3

COVER NLA - Was 6656454 - A

4

O-RING NLA - Was 6656455 - A

5

HOUSING NLA - Was 6656456 - A

6

6656457

O-RING

7

6656458

SNAP RING

8

6656459

BEARING

9

6656460

SPACER

10

6656461

SNAP RING

11

6656462

SEAL & BEARING Was 6686215 - D

12

SPACER NLA - Was 6656463 - A

13

6656464

GEAR sun

14

6656465

BOLT

15

6656466

GEAR ASSY. planetary - includes gear, needle, bearings, thrust washer & Ref. 25

16

6656467

HOUSING

17

6656468

O-RING

18

6656469

GEAR coupling - earlier models used geared coupler, later models have smooth couplers

19

6656470

SNAP RING

20

6656471

O-RING

21

6656472

BOLT

22

6656473

PLUG W/Ref. 23

23

79K4

O RING 10

24

MOTOR See Illustration TRAVEL MOTOR/ C3201 NLA - assy - Was 6656474 - A

25

SHAFT NLA - pressed into ref. 16 - Order Ref. 16 - Was 6662305 - A
