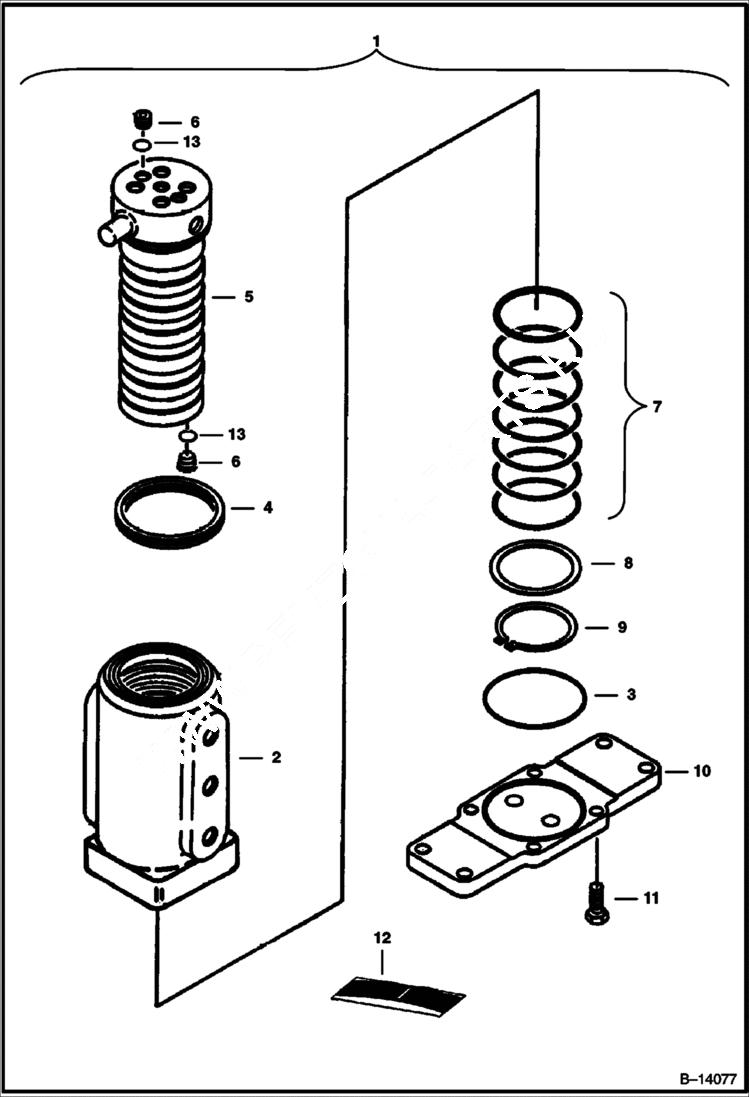

Запчасти Bobcat 220 SWIVEL JOINT (W/Weld On Swivel Stop) HYDRAULIC SYSTEM

1

6803396

SWIVEL JOINT See BTIE-029 W/Ref. 2-11 - Was 6800517 - A

2

6664900

HOUSING

3

O-RING NLA - See Ref. 12

4

SEAL NLA - See Ref. 12

5

6803395

ROTOR also order (7) 6802631 - Was 6664901 - A

6

6664902

PLUG pipe - Use W/6800517

6

6802631

PLUG O-Ring Boss - Use W/6803396

7

SEAL NLA - See Ref. 12

8

6664899

WASHER Thrust

9

6664978

SNAP RING

10

6664898

FLANGE

11

1CM1025

BOLT

12

6664903

SEAL KIT Incl. Refs. 3, 4 & 7

13

99K6

O RING Was 98K6 - A
