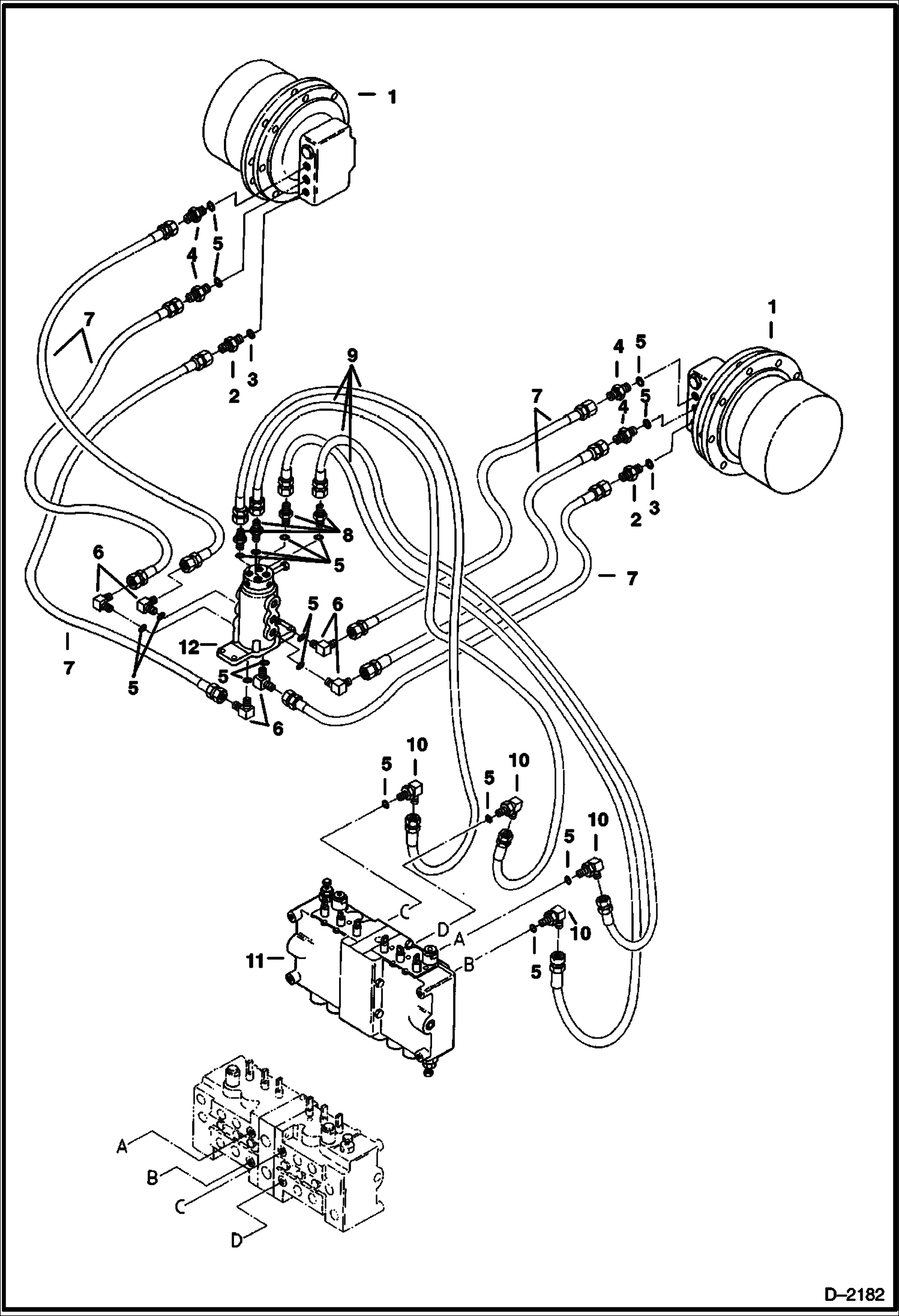

Запчасти Bobcat 220 HYDRAULIC CIRCUITRY (Valve to Travel Motors) (S/N 508212930 & Above) HYDRAULIC SYSTEM

1

MOTOR See Illustration TRAVEL MOTOR/ D1922 See BTIE-049 NLA - travel - Was 6651892 - A

2

6654895

ADAPTER W/Ref. 3

3

79K4

O RING 10

4

6654375

ADAPTER W/Ref. 5

5

79K6

O RING 10

6

6654378

ELBOW Use W/swivel joint 6658956

6

17K5

ELBOW W/Ref. 5 - Use W/swivel joint 6664906

7

6597887

HOSE See BTIE-043 Was 6535444 - A

8

6654377

ADAPTER Use W/swivel joint 6658956

8

15K5

FITTING W/Ref. 5 - Use W/swivel joint 6664906

9

6534014

HOSE

10

17K5

ELBOW W/Ref. 5

11

VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2043 NLA - Was 6655456 - A

12

See Illustration SWIVEL JOINT/ B12744
