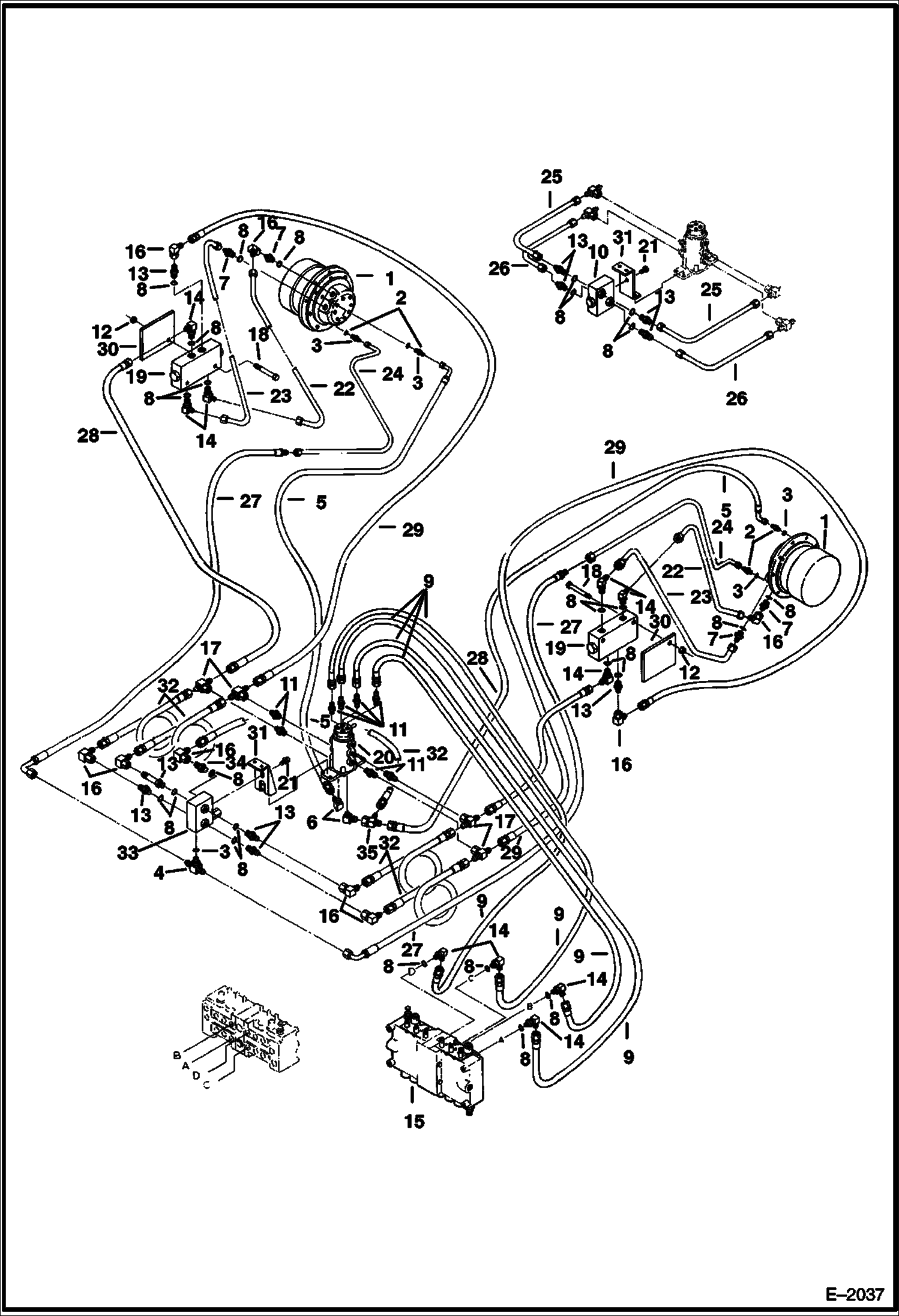

Запчасти Bobcat 220 HYDRAULIC CIRCUITRY (Valve to Travel Motors) (With Brake) S/N 508212286-12929) HYDRAULIC SYSTEM

1

TRAVEL MOTOR See Illustration TRAVEL MOTOR/ C3242 travel - Was 6658535 - A

2

6655811

CONNECTOR W/Ref. 3

3

79K4

O RING 10

4

19K3

FITTING W/Ref. 3

5

6536872

HOSE

6

6654378

ELBOW Use W/swivel joint 6658906

6

17K5

ELBOW W/Ref. 8- Use W/swivel joint 6664906

7

6655810

ADAPTER W/Ref. 8

8

79K6

O RING 10

9

6534014

HOSE

10

VALVE NLA - shuttle - Was 6658351 - A

11

6654377

ADAPTER Use W/swivel joint 6658956

11

15K5

FITTING W/Ref. 8 - Use W/swivel joint 6664906

12

49DM8

NUT Was 39DM00008B - B

13

15K5

FITTING W/Ref. 8

14

17K5

ELBOW W/Ref. 8

15

VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2043 NLA - Was 6655456 - A

16

11K5

FITTING

17

14K5

TEE

18

1CM870

BOLT

19

6655457

VALVE holding

20

SWIVEL JOINT See Illustration SWIVEL JOINT/ B12744 Was 6533937 - A

21

29CM820

SCREW Was 1CM00820B - B

22

6538322

TUBE

23

6538323

TUBE

24

6538324

TUBE

25

TUBE NLA - Order Ref. 16 & 32 - Was 6538326 - A

26

TUBE NLA - Order Ref. 16 & 32 - Was 6538327 - A

27

6538330

HOSE

28

6530892

HOSE

29

6700215

HOSE

30

6538328

SPACER

31

6539417

MOUNT Was 6537034 - A

32

6700336

HOSE

33

6660273

SHUTTLE VALVE

34

16K5

FITTING Order Ref. 8

35

13K5

TEE
