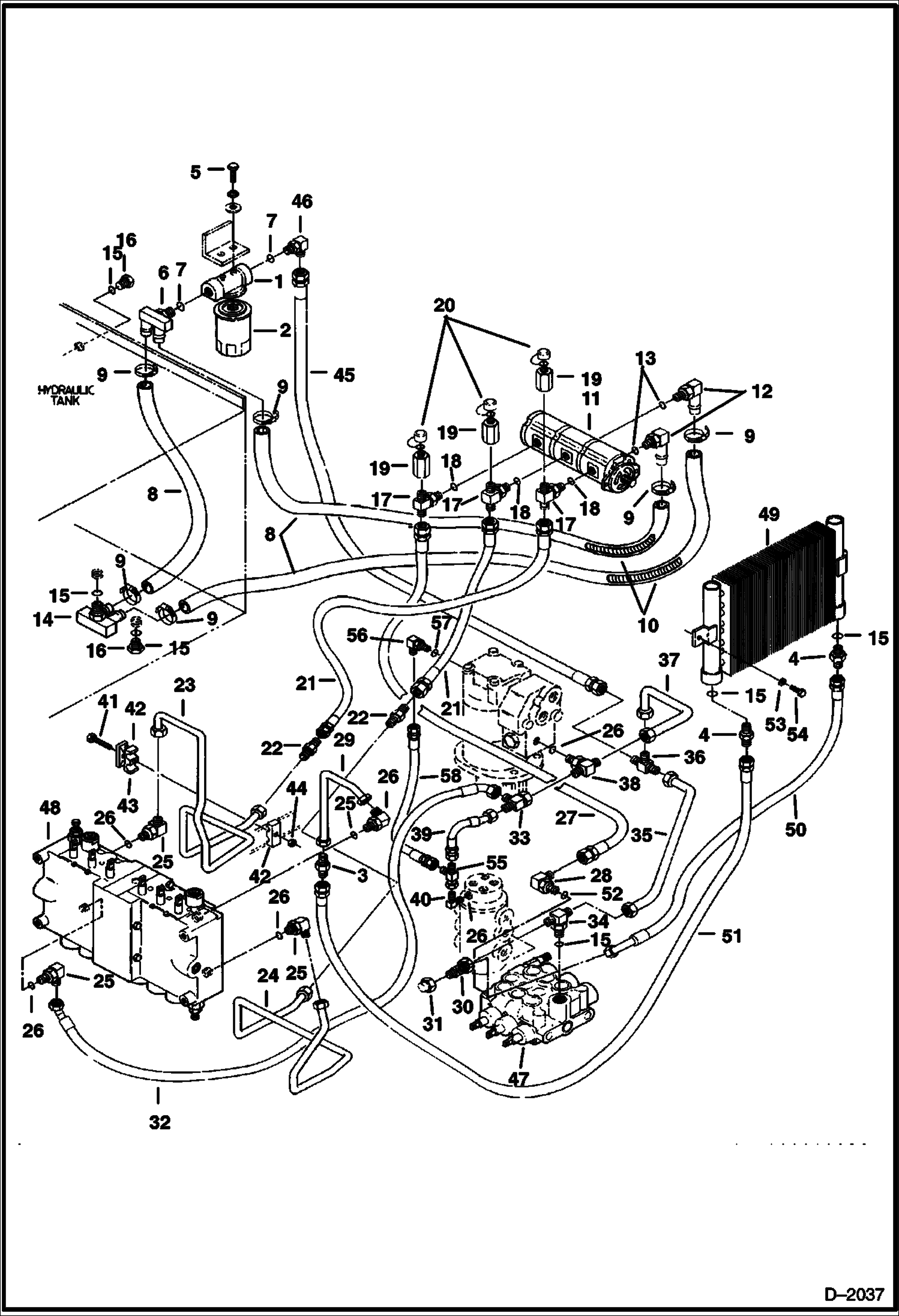

Запчасти Bobcat 220 HYDRAULIC CIRCUITRY (Tank to Pump to Valves) (Standard Control Pattern) HYDRAULIC SYSTEM

1

6654897

FILTER ASSY assy. - W/Ref. 2

2

6653336

ELEMENT

3

87F5

FITTING

4

15KB0812

FITTING, HYD CONNECTOR W/Ref. 15 -Was 755054 - A

5

1C610

BOLT Was 1C000612B - B

6

6537002

ELBOW W/Ref. 7

7

79K16

O RING 10

8

6578170

HOSE .75 (19mm) long I.D. - bulk - sold per foot - Was755622B - A

9

6512374

CLAMP

10

6537025

SPRING

11

PUMP See Illustration GEAR PUMP/ B13263 See BTIE-025

12

6587230

ELBOW W/Ref. 13 - .875'' thread - Was 6657238 - A

12

7235691

FITTING, HYD ELBOW W/Ref. 13 - 1.31'' thread

13

79K10

O RING 10 .875'' ID

13

79K16

O RING 10 1.31'' ID

14

ELBOW NLA - W/Ref. 15 - Was 6537003 - A

15

79K12

O RING 10

16

24K8

PLUG W/Ref. 15

17

19K6

FITTING W/Ref. 18 - .75'' thread

17

19KB810

FITTING, HYD TEE W/Ref. 18 - .875'' thread

18

79K8

O RING 10 .75'' ID

18

79K10

O RING 10 .875'' ID

19

6646635

COUPLER diagnostic

20

6630367

CAP

21

6539490

HOSE Was 6537418 - A

22

87F5

FITTING

23

6536876

TUBE inlet

24

6536875

TUBE inlet

25

17K5

ELBOW W/Ref. 26

26

79K6

O RING 10

27

6701432

HOSE Was 6537005 - D

28

1300913

ELBOW W/Ref. 52

29

6537048

TUBE outlet

30

6536896

TEE

31

36K7

FITTING

32

6577891

HOSE Was 6537419 - A

33

6536895

TEE

34

19K8

TEE W/Ref. 15

35

6537001

TUBE

36

6536897

TEE

37

6536885

TUBE

38

6535461

TEE W/Ref. 26

39

6535448

HOSE

40

6654378

ELBOW Use W/swivel joint 6658956

40

17K5

ELBOW W/Ref. 26 - Use W/swivel joint 6664906

41

1CM890

BOLT Was 1CM00860B - B

42

6655827

CLAMP

43

6592507

PLATE Was 6599521 - A

44

1DM8

NUT

45

6537010

HOSE

46

731016

ELBOW

47

6586280

VALVE See Illustration CONTROL VALVE/ D2042 Was 6536399 - A

48

VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2043 NLA - Was 6655456 - A

49

6656008

OIL COOLER

50

6537078

HOSE

51

6537079

HOSE

52

79K10

O RING 10

53

15EM80

WASHER

54

1CM816

BOLT

55

13K5

TEE

56

17KB0604

ELBOW UNION W/Ref. 57 - Was 6579647 - A

57

79K4

O RING 10

58

6536789

HOSE
