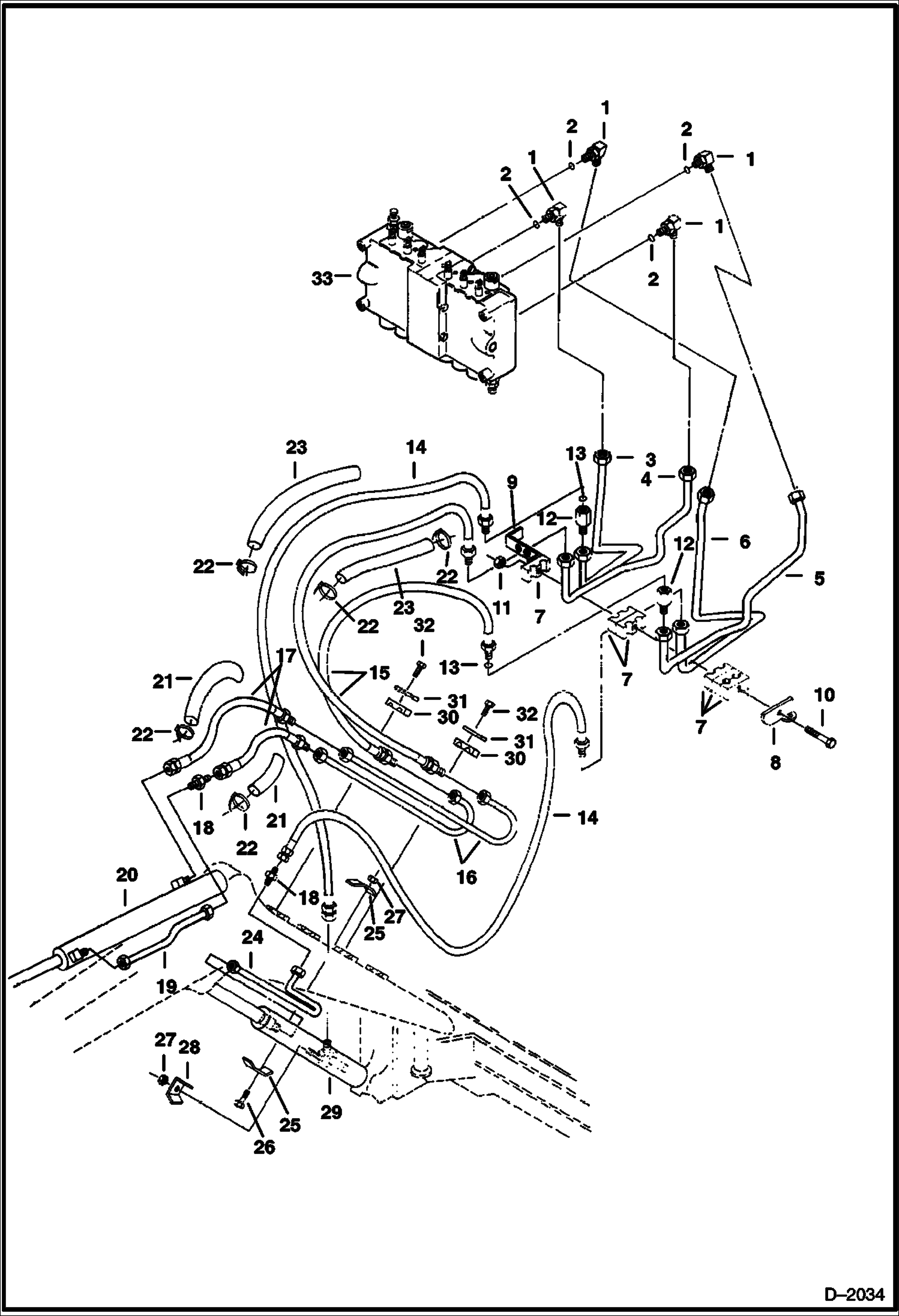

Запчасти Bobcat 220 HYDRAULIC CIRCUITRY (Dipper Arm & Boom) (ISO Control Pattern) HYDRAULIC SYSTEM

1

17K5

ELBOW W/Ref. 2

2

79K6

O RING 10

3

6536861

TUBE boom top

4

6536859

TUBE boom bottom

5

6536858

TUBE arm top

6

6536860

TUBE arm bottom

7

6655827

CLAMP

8

6536886

PLATE

9

6536836

PLATE

10

1CM8130

BOLT

11

1DM8

NUT

12

6656061

RESTRICTOR

13

91F5

O-RING

14

6537041

HOSE

15

6537038

HOSE

16

6534842

TUBE

17

6534836

HOSE

18

87F5

FITTING

19

6535708

TUBE

20

6535709

CYLINDER See Illustration ARM CYLINDER/ C3180

21

6649389

HOSE COVER 1'' (25mm) long I.D. - bulk - sold per foot

22

6610510

TIE

23

6652367

HOSE COVER 1.62'' (41mm) long I.D. - bulk - sold per foot

24

6535778

TUBE

25

CLAMP NLA - Was 6536685 - A

26

1CM1030

BOLT

27

49DM10

NUT Was 39DM-10 - B

28

6562266

CLAMP

29

6535779

CYLINDER See Illustration BLADE CYLINDER/ B18867

30

6578870

CLAMP

31

6535422

COVER Was 6579255 - A

32

17C420

BOLT Was 1CM00420B - B

33

VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2043 NLA - Was 6655456 - A
