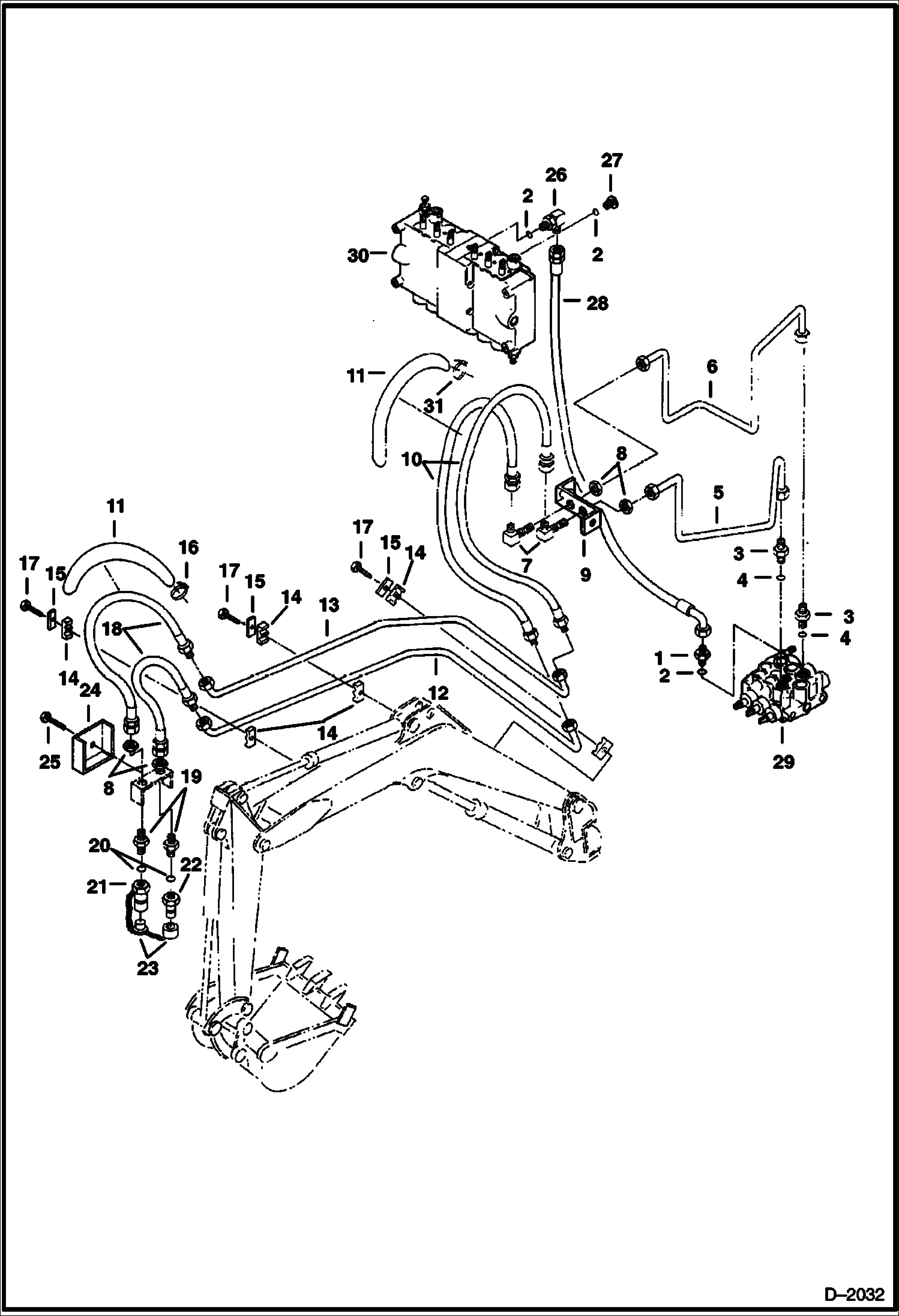

Запчасти Bobcat 220 HYDRAULIC CIRCUITRY (Valve to Auxiliary) (ISO Control Pattern) HYDRAULIC SYSTEM

1

743108

FITTING W/Ref. 2

2

79K8

O RING 10

3

15KB1012

FITTING, HYD CONNECTOR W/Ref. 4 - Was 755055B - A

4

79K12

O RING 10

5

6536882

TUBE

6

6536883

HOSE

7

88F7

ELBOW bulkhead

8

86F7

LOCK NUT

9

6536836

PLATE

10

HOSE NLA - Was 6537036 - A

11

6656155

HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID

12

6536898

TUBE

13

6536899

TUBE

14

6577697

CLAMP Was 6701893 - B

15

6652521

PLATE

16

6610510

TIE

17

1CM520

BOLT

18

6537037

HOSE

19

45K7

CONNECTR bulkhead

20

79K10

O RING 10

21

6598758

COUPLER, POPPET FEMALE straight

22

6598757

COUPLER, POPPET MALE straight

23

6513709

CAP PLUG couplers

24

6536871

COVER

25

1CM1020

BOLT

26

1300059

ELBOW W/Ref. 2

27

24K6

FITTING W/Ref. 2

28

6577697

CLAMP Was 6531893 - B

30

VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2043 NLA - W/Ref. 27 - Was 6655456 - A
