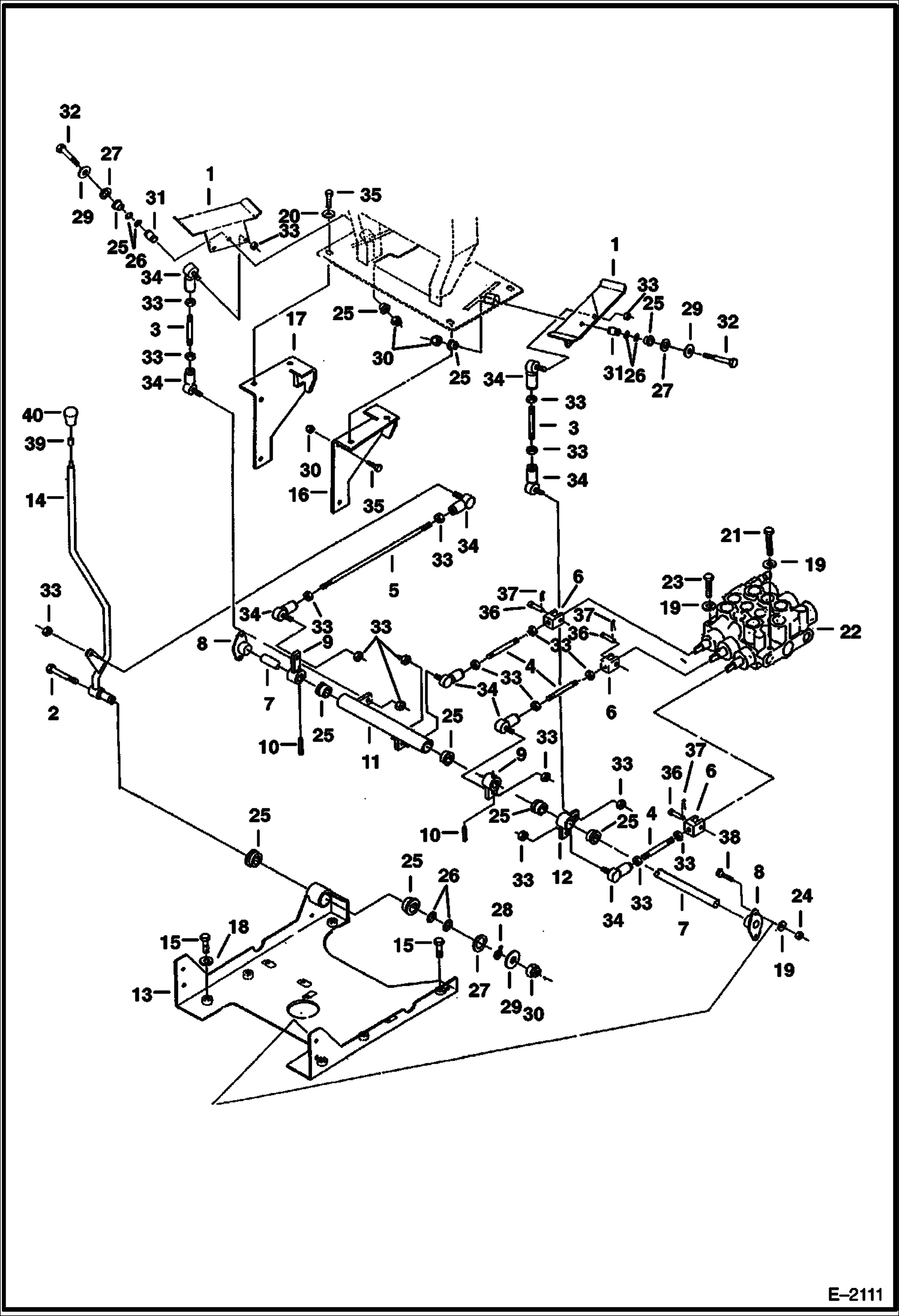

Запчасти Bobcat 220 BLADE, BOOM SWING & AUXILIARY CONTROLS (S/N 508212952 & Above) WORK EQUIPMENT

1

6536547

PEDAL

2

1CM1080

BOLT

3

6536812

ROD

4

6536811

ROD

5

6539923

ROD

6

6536893

YOKE

7

6537516

SHAFT

8

6536818

BEARING

9

6537515

LEVER bellcrank

10

14J2124

ROLLPIN

11

6536835

LEVER bellcrank

12

6536831

LEVER bellcrank

13

6536550

PLATE

14

6539798

LEVER blade

15

1CM1040

BOLT

16

6537421

BRACE

17

6537420

BRACE

18

6EM100

WASHER

19

6EM80

WASHER, SPRING

20

15EM100

WASHER

21

1CM860

BOLT

22

6586280

VALVE See Illustration CONTROL VALVE/ D2042

23

1CM840

BOLT

24

1DM8

NUT

25

6536801

BUSHING

26

58K015

O-RING 10

27

6536802

WASHER

28

6536803

WASHER

29

27E6

WASHER 5

30

49DM10

NUT

31

6536545

SLEEVE

32

1CM1055

BOLT

33

1DM10

NUT

34

6536531

BALL JOINT

35

1CM1025

BOLT

36

6536543

PIN

37

1F212

PIN

38

1CM820

BOLT

39

6660787

RING tolerance

40

6658184

KNOB
