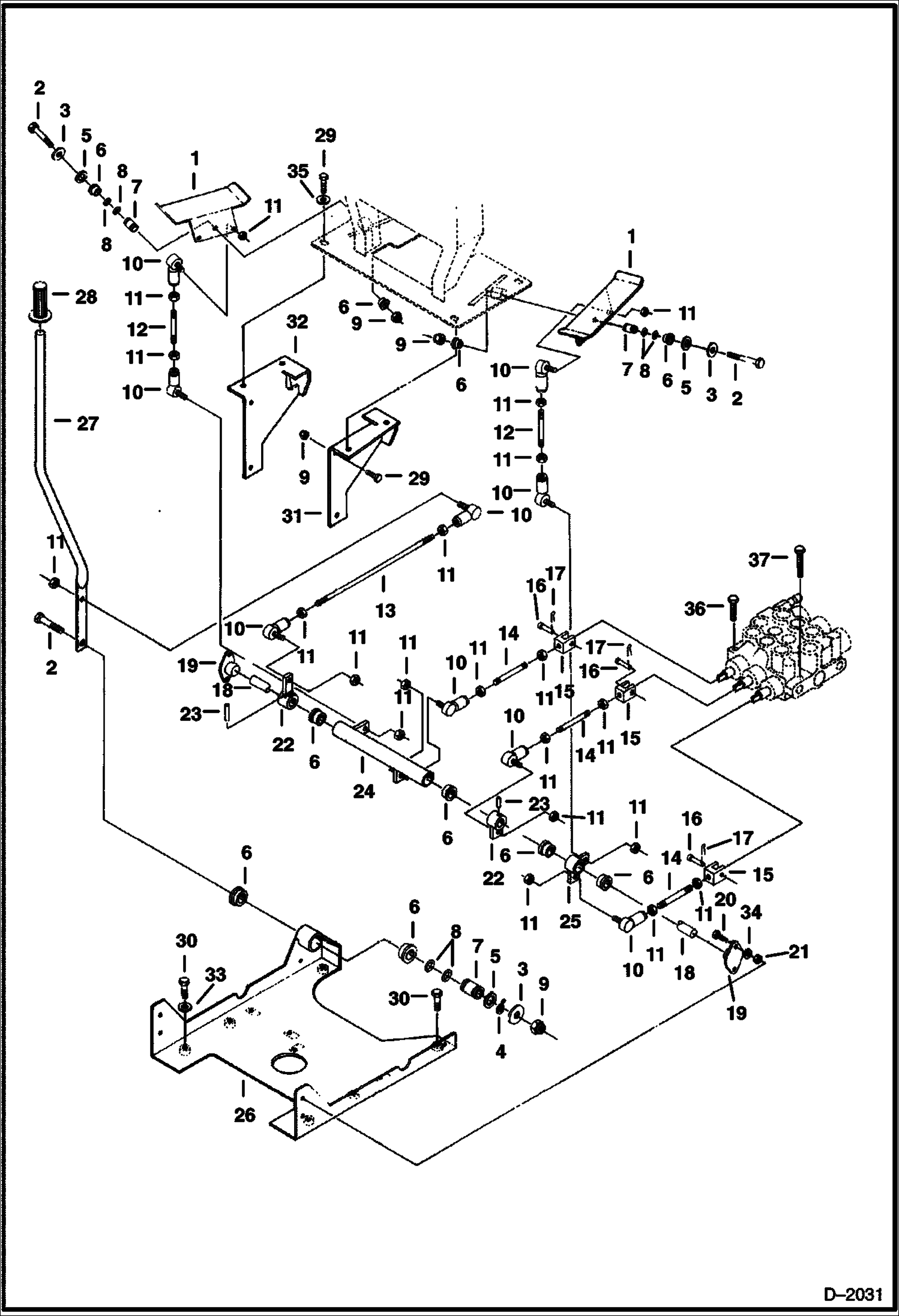

Запчасти Bobcat 220 BLADE, BOOM SWING & AUXILIARY CONTROLS (S/N 508212000-12951) WORK EQUIPMENT

1

6536547

PEDAL

2

1CM1055

BOLT

3

27E16

WASHER

4

6536803

WASHER wave

5

6536802

WASHER

6

6536801

BUSHING

7

6536545

SLEEVE

8

58K015

O-RING 10

9

49DM10

NUT Was 39DM00010B - A

10

6536531

BALL JOINT

11

1DM10

NUT

12

6536812

ROD

13

6536813

ROD

14

6536811

ROD

15

6536893

YOKE

16

6536543

PIN

17

1F212

PIN

18

6537516

SHAFT See BTIE-008 Was 6536540 - A

19

6536818

BEARING flanged

20

1CM820

BOLT

21

49DM8

NUT Was 39DM00008B - B

22

6537515

LEVER See BTIE-008 Was 6536833 - A

23

14J2124

ROLLPIN See BTIE-008 Was 14J001224B - B

24

6536835

LEVER

25

6536831

LEVER

26

6536550

PLATE

27

6536814

LEVER

28

6656003

KNOB

29

1CM1030

BOLT

30

1CM1040

BOLT

31

6537421

BRACE

32

6537420

BRACE

33

6EM100

WASHER

34

6EM80

WASHER, SPRING

35

15EM100

WASHER

36

1CM840

BOLT

37

1CM860

BOLT
