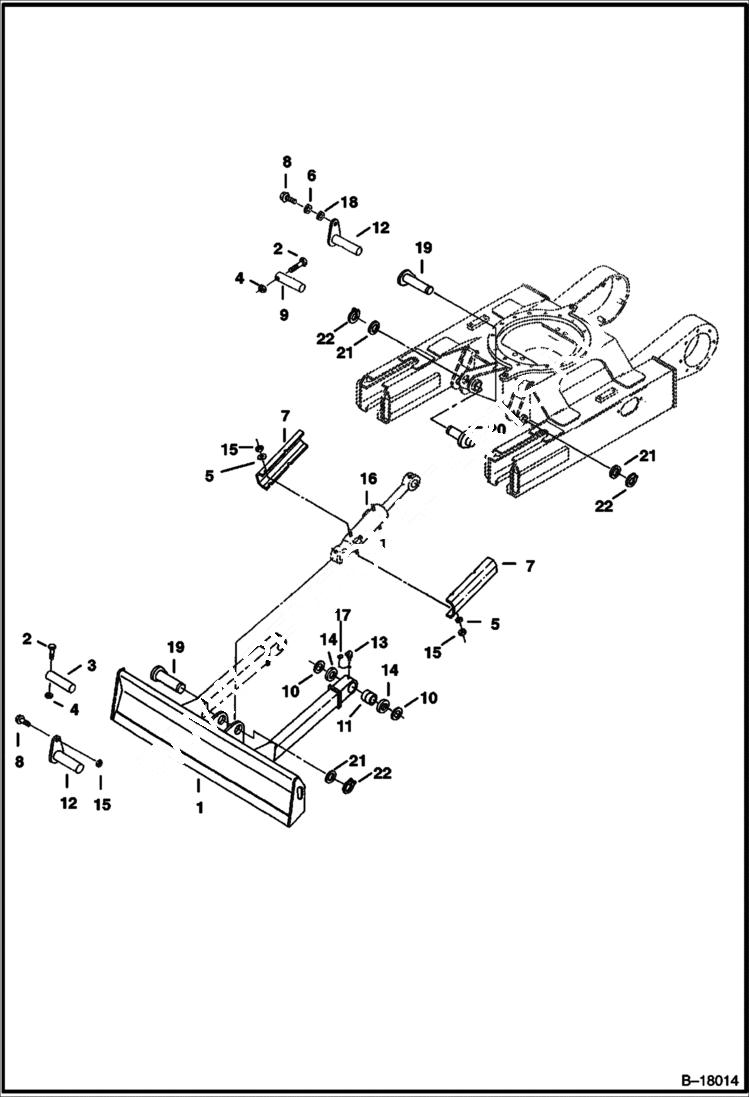

Запчасти Bobcat 220 BLADE WORK EQUIPMENT

1

6597237

BLADE Also order Pin 5297296 , Washer 6589699 & Snap Ring 6512132 - Was 6597296 - D

2

1CM855

BOLT Was 1CM00860B - B

3

6533500

PIN

4

49DM8

NUT Was 39DM00008B - B

5

17EM100

WASHER Was 15EM00080B - B

6

6EM100

WASHER

7

6536611

SHIELD

8

29CM1020

BOLT Was 1CM01025B - B

9

6533501

PIN

10

6533856

SHIM

11

6533484

BUSHING Use W/blades 6533473 & 6589852 only

12

6533507

PIN

13

12H5

GREASE ZERK

14

6653534

SEAL Use W/blades 6533473 & 6589852 only

15

49DM10

NUT Was 39DM00010B - B

16

6587000

CYLINDER See Illustration BLADE CYLINDER/ C3182 WAS 6534421 - A

17

6652943

COVER grease fitting

18

15EM100

WASHER

19

6597296

PIN

20

6597305

PIN

21

6589699

WASHER

22

6512132

SNAP RING

27

CYLINDER See Illustration BUCKET CYLINDER/ C3183 bucket
