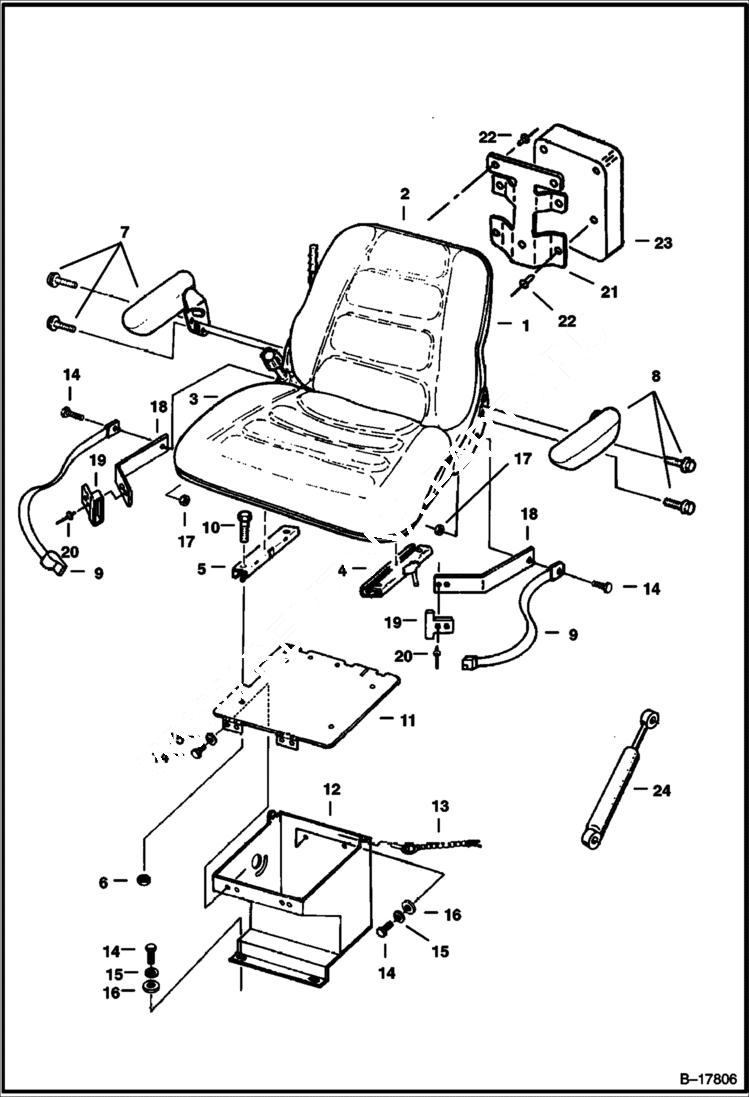

Запчасти Bobcat 220 SEAT MAIN FRAME

1

6632388

SEAT W/Ref. 2-5 & 24

2

3737081

BACKREST backrest

3

3737010

CUSHION, SEAT seat

4

3737000

TRACK W/adjusting handle

5

3737001

ADJUSTER W/O adjusting handle

6

1DM8

NUT

7

6599515

ARM REST R.H. W/Bolt - Was 6657189 - A

8

6656006

BRACKET, ARM REST L.H. W/Bolt

9

6564774

SEAT BELT

10

1CM812

BOLT

11

6534801

LID

12

6534803

FRAME

13

6649496

CLICK PIN

14

1CM1020

BOLT

15

6EM100

WASHER

16

15EM100

WASHER

17

1DM10

NUT

18

6534812

GUIDE ASSY. seat belt - W/Ref. 20 & 21

19

GUIDE NLA - Order 6703703 - Was 6565355

20

6630207

RIVET 5 Was 1662965 - A

21

6539806

BRACKET

22

6630207

RIVET 5

23

6633394

CONTAINER Manuals

24

6660348

GAS SPRING
