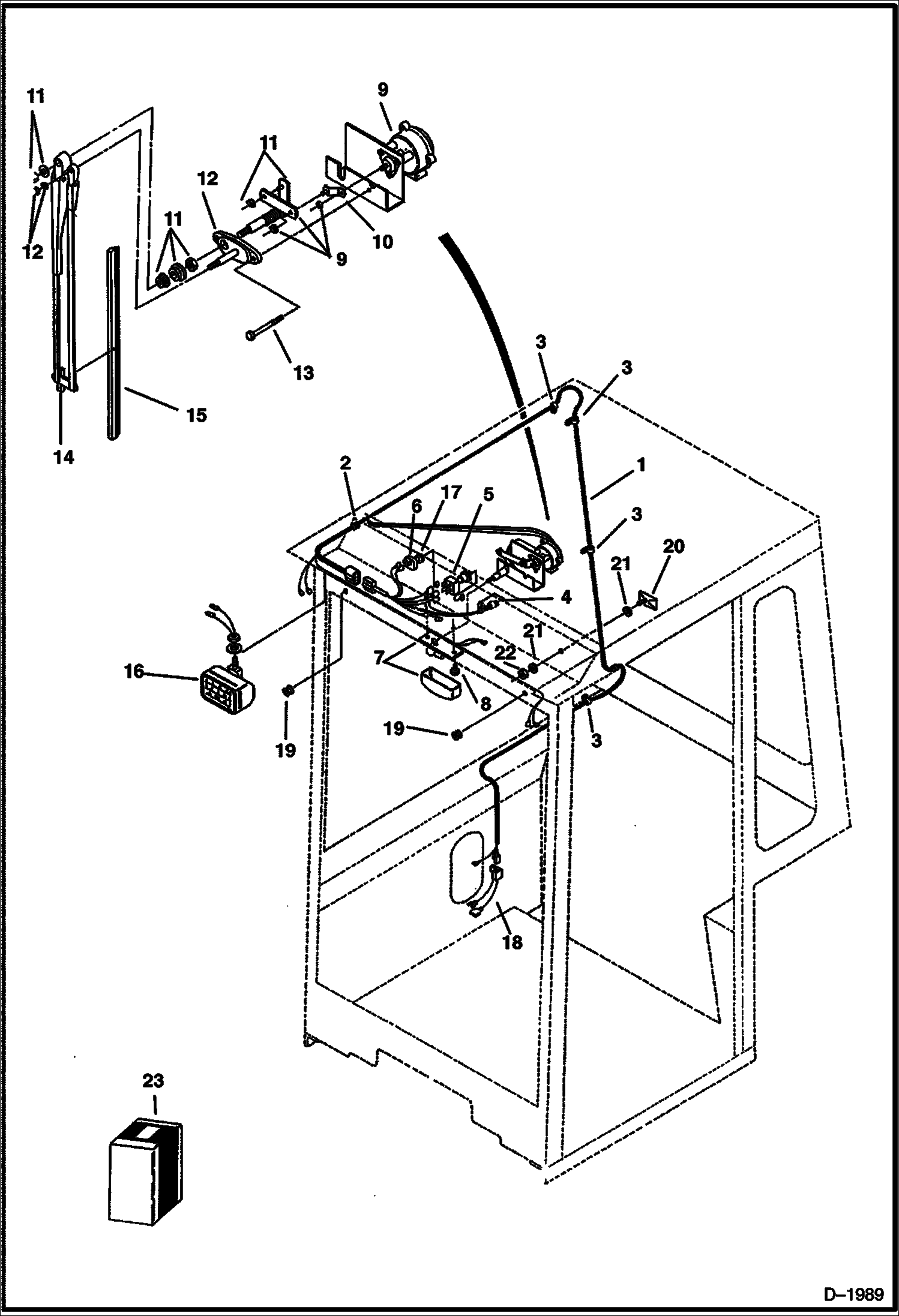

Запчасти Bobcat 220 OPERATOR CAB ELECTRICAL SYSTEM MAIN FRAME

1

6657090

HARNESS cab

2

6515109

GRIP

3

6654150

CLIP wiring

4

6513469

HOLDER Was 6654166 - A

4

6586498

FUSE 15 amp. - Was 6535441 - B

5

6654158

SWITCH wiper

6

SWITCH NLA - dome light - Was 6648446 - A

7

6654169

DOME LIGHT

7

6655055

BULB #1141

8

6532168

BOLT

9

6654163

WIPER MOTOR

10

6654155

ARM

11

PIVOT SHAFT NLA - assy. - .625 Shaft - Order Ref. 23 - Was6654159 - A

11

6669059

PIVOT SHAFT .690 Shaft

12

6654156

LINKAGE For .625 Shaft

12

6669145

LINKAGE For .690 Shaft

13

2C408

SCREW

14

6658698

ARM wiper - Was 6654151 - A

15

6654157

BLADE wiper

16

6644980

LIGHT

17

KNOB NLA - Was 6648424 - A

18

6537687

HARNESS adapter - not used on some models

19

515069

GROMMET

20

6658285

MIRROR W/Ref. 22

21

6658286

WASHER

22

62D4

NUT

23

KIT NLA - .690 - Ref. 11 & 12 - Was 6669058 - A
