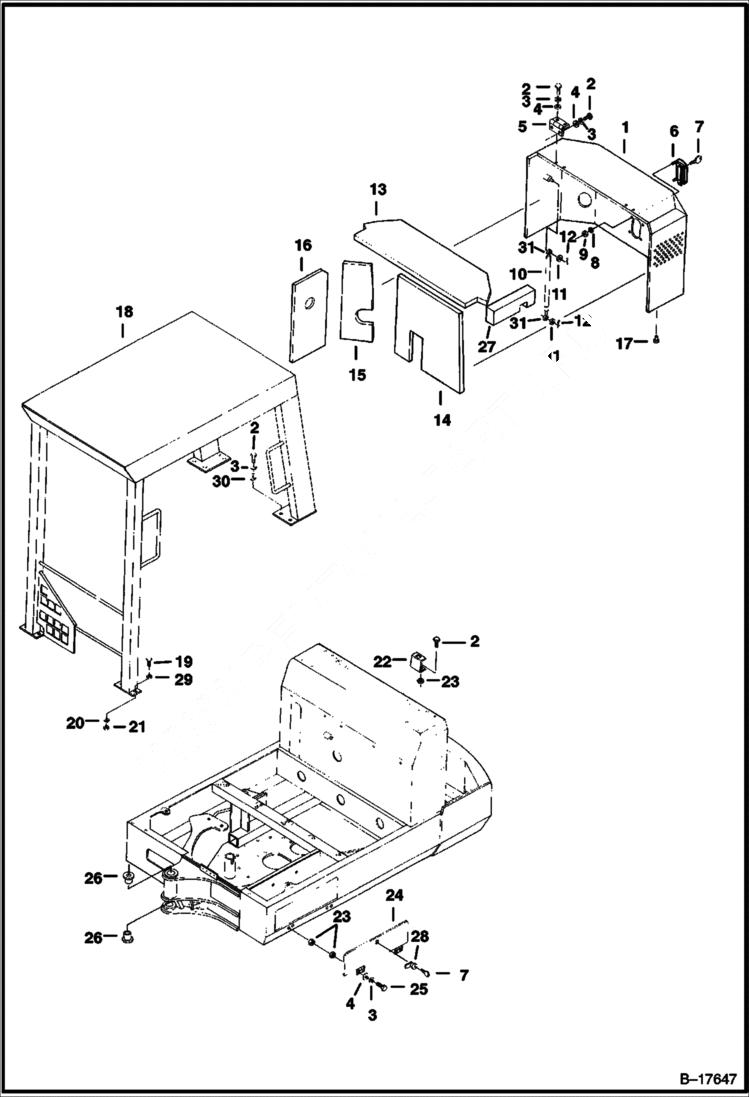

Запчасти Bobcat 220 MACHINE CANOPY & ENGINE COVER MAIN FRAME

1

6534813

COVER

2

1CM1030

BOLT Was 1CM01025B - B

3

6EM100

WASHER

4

15EM100

WASHER

5

6533959

HINGE

6

6660132

LATCH W/Ref. 7 - Was 6648421 - B

7

6650683

KEY LL-24

8

4E4

WASHER

9

61D4

NUT 5

10

6654364

CYLINDER W/Ref. 31 - Was 6654052 - A

11

15EM80

WASHER

12

COTR.PIN NLA - Was 13JM16016 - A

13

6535477

INSULATION fastens inside of hood

14

6535457

INSULATION fastens inside of hood

15

INSULATION NLA - fastens inside of hood - Was 6534759 - A

16

6534758

INSULATION fastens inside of hood

17

6653459

STOP rubber

18

CANOPY NLA - Was 6661594 - A

19

1CM1235

BOLT

20

6EM120

WASHER

21

1DM12

LOCK NUT

22

6534890

BRACKET

23

1DM10

NUT

24

6536846

LID

25

1CM1015

BOLT

26

6539897

BUSHING

27

INSULATION NLA - fastens inside of hood - Was 6535458 - A

28

6656164

LATCH W/Ref. 7

29

25E21

WASHER 5

30

25E18

WASHER

31

6664042

CLEVIS
