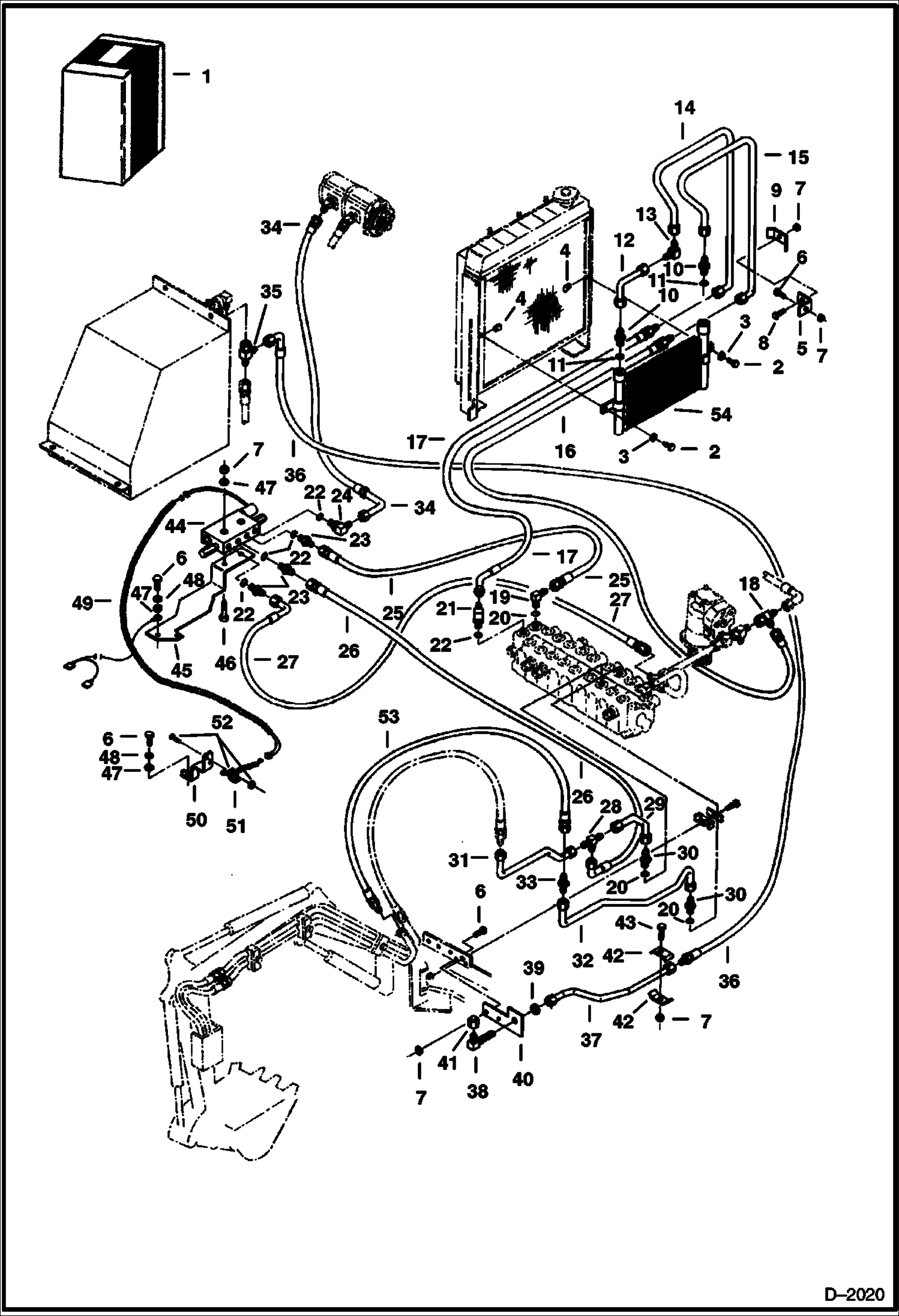

Запчасти Bobcat 220 HI-FLOW AUXILIARY HYDRAULIC KIT 11501-11999 ACCESSORIES & OPTIONS

1

6537183

KIT Hi-Flow Aux. Hyd. - Was Sales

2

17C512

BOLT 5

3

25E15

WASHER

4

6656354

NUT Clip

5

6537019

BRACKET

6

1CM825

BOLT

7

39DM8

NUT

8

1CM835

BOLT

9

CLAMP NLA - Was 6536685 - A

10

15KB0812

FITTING, HYD CONNECTOR W/Ref. 11 - Was 755054B - A

11

79K12

O RING 10

12

6536815

TUBE

13

77F6

ELBOW

14

6536817

TUBE

15

6536816

TUBE

16

6537091

HOSE

17

6537090

HOSE

18

13K7

FITTING

19

6654376

ELBOW W/Ref. 20 - Existing Part

20

79K6

O RING 10

21

6654893

ELBOW W/Ref. 22 - Existing Part

22

79K8

O RING 10

23

15K6

ADAPTER W/Ref. 22

24

17K6

ELBOW W/Ref. 22

25

6537087

HOSE

26

6537088

HOSE

27

6537092

HOSE

28

10K6

FITTING

29

6537084

TUBE

30

6654894

ADAPTER W/Ref. 20 - Existing Part

31

6537081

TUBE

32

6537082

TUBE

33

656108

CONNECTOR

34

6537086

HOSE

35

13K8

TEE

36

6537089

HOSE

37

6537083

TUBE

38

88F7

ELBOW Bulkhead

39

86F7

LOCK NUT

40

6537085

BRACKET

41

36K7

FITTING

42

6502426

CLAMP

43

1CM850

BOLT

44

6657013

VALVE See Illustration SOLENOID VALVE/ C3245 ASSY. - Was 6655675 - A

45

6535482

BRACKET

46

1CM860

BOLT

47

1EM80

WASHER

48

6EM80

WASHER, SPRING

49

6536140

HARNESS

50

6535463

BRACKET

51

6579357

SWITCH

52

6646840

HARDWARE KIT Actuator, Bolt & Nut

53

6537093

HOSE

54

6656008

OIL COOLER
