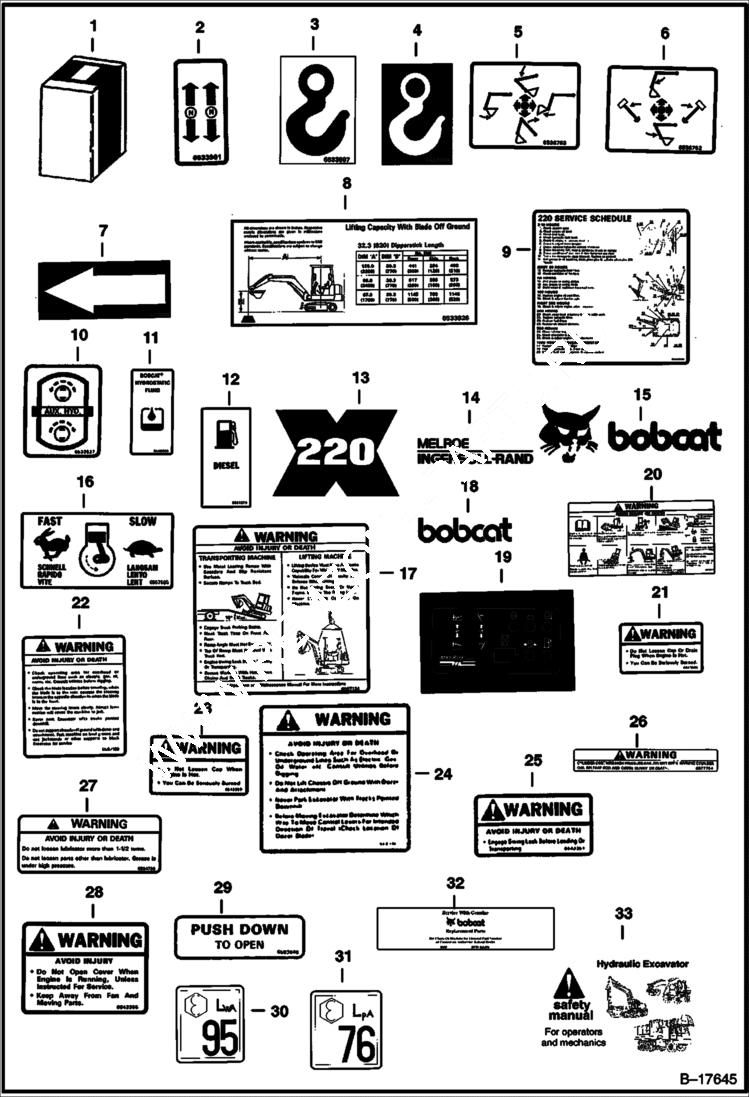

Запчасти Bobcat 220 DECALS ACCESSORIES & OPTIONS

1

6533571

KIT DECAL incl. Ref.1-22 & 26-32

2

6533901

DECAL drive

3

6533897

DECAL hook

4

6533898

DECAL hook

5

6536763

DECAL control - R.H. - Was 6533902 - A

6

6536762

DECAL control - L.H. - Was 6533900 - A

7

6533899

DECAL arrow

8

6533926

DECAL lift chart

9

6586697

DECAL service schedule - Was 6533836 - A

10

6533927

DECAL aux. hydraulic

11

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

12

6589739

DECAL diesel - Was 6561379 - A

13

6532816

DECAL model no.

14

DECAL NLA - Logo - Was 6714353 - A

15

6560986

DECAL, LOGO BOBCAT AND HEAD

15

6560987

DECAL

16

6735140

DECAL, THROTTLE Was 6557565 - A

17

6587124

DECAL warning transport loading - Was 6643354 - A

18

6591837

DECAL

19

6533903

DECAL console

20

6579549

DECAL warning

21

6804233

DECAL warning radiator - Was 6643356 - A

22

6587139

DECAL warning service & repair - Was 6643358 - A

23

DECAL NLA - warning radiator - Order Ref. 21 - Was 6643359 - A

24

DECAL NLA - Warning Operational - Order Ref. 22 - Was 6643360 - A

25

DECAL NLA - Warning swing lock - Order Ref. 22 - Was 6643361 - A

26

6577754

DECAL, WARNING 5 gas spring

27

7168039

DECAL, WARNING See Illustration DECALS/ NA6216 - high pressure grease - Was 6804114 - A

28

6643355

DECAL warning eng. moving parts

29

6583848

DECAL door latch

30

6534818

DECAL noise warning

31

6534819

DECAL noise warning

32

6565200

DECAL, FILTER

33

6570354

MANUAL safety
