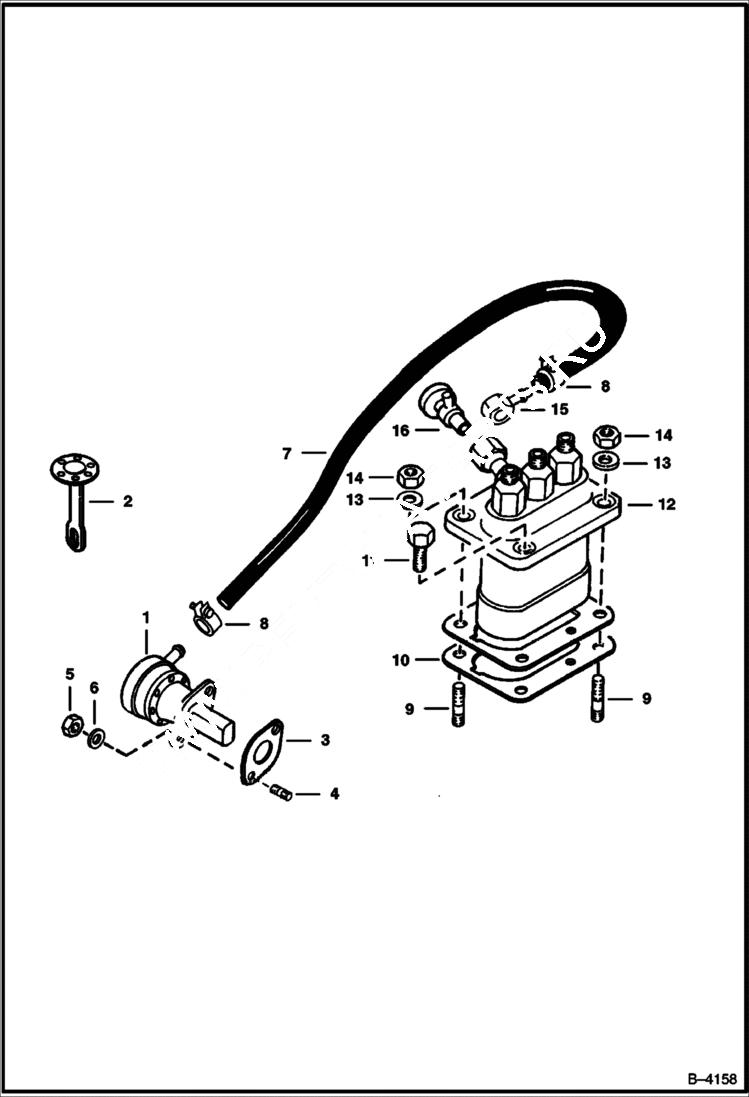

Запчасти Bobcat 220 FUEL & INJECTION PUMP POWER UNIT

1

6598121

FUEL PUMP Was 6599008 - A

2

6669306

DIAPHRAM For Fuel Pump - Was 6630183 - A

3

3974502

GASKET See Illustration LOWER GASKET KIT/ C3244 included W/lower gasket kit

4

3974503

STUD

5

1DM6

NUT

6

6EM60

WASHER, SPRING

7

6598694

HOSE W/Ref. 8

8

6655874

CLIP Was 3974499B - A

9

6652670

STUD Was 3974916B - A

10

6649317

SHIM KIT

11

1CM818

BOLT Was 4CM818 - A

13

6EM80

WASHER, SPRING

14

1DM8

NUT Was 25DM00008B - A

15

6513707

JOINT

16

6598102

VALVE jet start
