Запчасти Bobcat 220 OIL PAN POWER UNIT

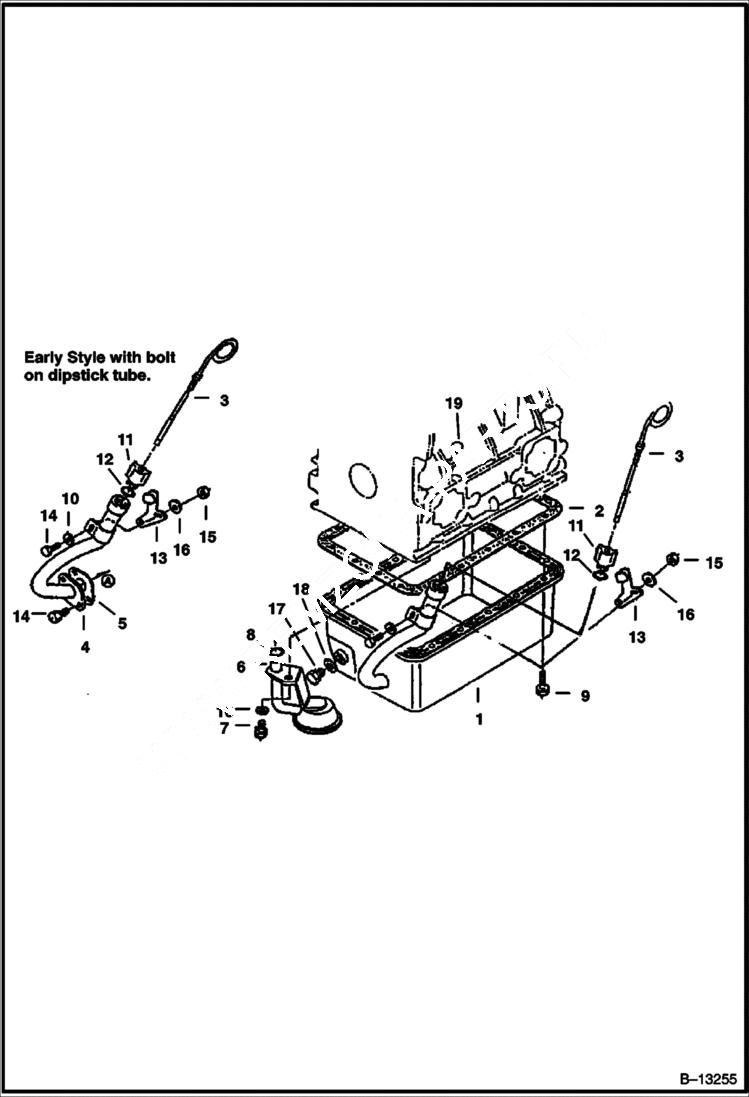

Схема запчастей Bobcat 220 - OIL PAN POWER UNIT

Артикул

Название

Примечание

Количество

1

6641350

PAN W/Adapter

2

6666798

GASKET See Illustration LOWER GASKET KIT/ C3244 included W/lower gasket kit - Was 6599111 - A

3

6599145

DIPSTICK

4

6599143

TUBE bolt on

5

6599142

GASKET See Illustration LOWER GASKET KIT/ C3244 included W/lower gasket kit

6

6652650

SCREEN was 6599003 - A

7

1CM818

BOLT Was 4CM818 - A

8

6599983

O-RING See Illustration LOWER GASKET KIT/ C3244 included W/lower gasket kit

9

6652582

BOLT was 6599069 - A

10

6EM60

WASHER, SPRING

11

6599144

PLUG

12

25K40100

O RING 10 See Illustration LOWER GASKET KIT/ C3244 included W/lower gasket kit

13

BRACKET NLA - Was 6599146 - A

14

1CM818

BOLT

15

1DM8

NUT Was 25DM00008B - A

16

1EM80

WASHER

17

3390195

PLUG

18

6631046

SEAL sealing

19

6657048

PLUG

Выбрано товаров: 19
