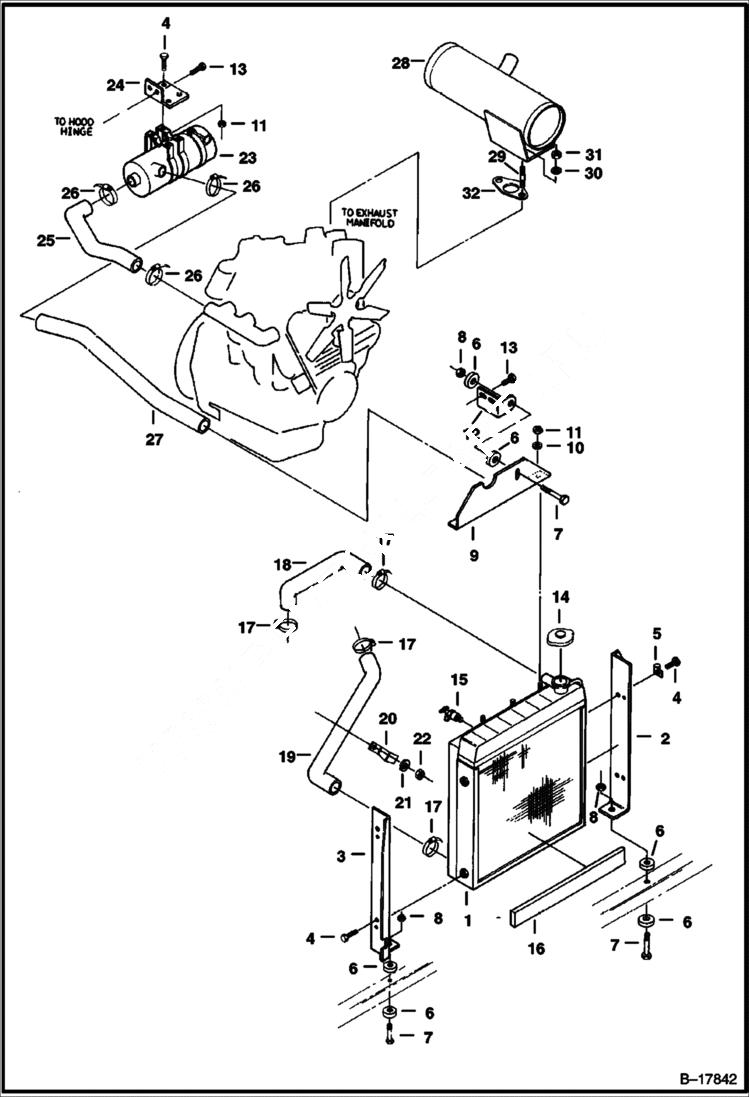

Запчасти Bobcat 220 RADIATOR, AIR CLEANER & MUFFLER MOUNTING POWER UNIT

1

RADIATOR NLA - W/Ref. 14 - Order Radiator 6664487 and Mount 6537539 - Was 6657311 - A

2

6534784

MOUNT

3

6534785

MOUNT

4

1CM816

BOLT

5

30H30

CLAMP

6

6653763

MOUNT

7

1CM1045

BOLT

8

39DM10

NUT

9

6534786

MOUNT

9

6537539

MOUNT Use With New Radiator 6657311

10

15EM80

WASHER

11

1DM8

NUT

12

6534787

MOUNT attaches to hood hinge

13

1CM1025

BOLT

14

6666606

RADIATOR CAP radiator - Was 6646545 - A

15

6513679

VALVE

16

6554274

INSULATION 17''(432mm) long - Bulk - Sold Per Foot

17

42H16

CLAMP, HOSE 5

18

6534727

HOSE upper radiator

19

6534728

HOSE lower radiator

20

6535470

CLAMP

21

6EM60

WASHER, SPRING

22

1DM6

NUT

23

905282

AIR CLNR See Illustration ENGINE AIR CLEANER/ B17728 WAS 6555551 - A

24

6534783

MOUNT attaches to hood hinge

25

6534730

HOSE

26

42H24

CLAMP-5 Was 6513595 - A

27

6534729

HOSE

28

6653777

MUFFLER

28

6664006

EXHAUST PURIFIER

29

6533138

STUD spark arrestor

30

1EM100

WASHER

31

2DM10

NUT Ref. 28

32

3974507

GASKET
