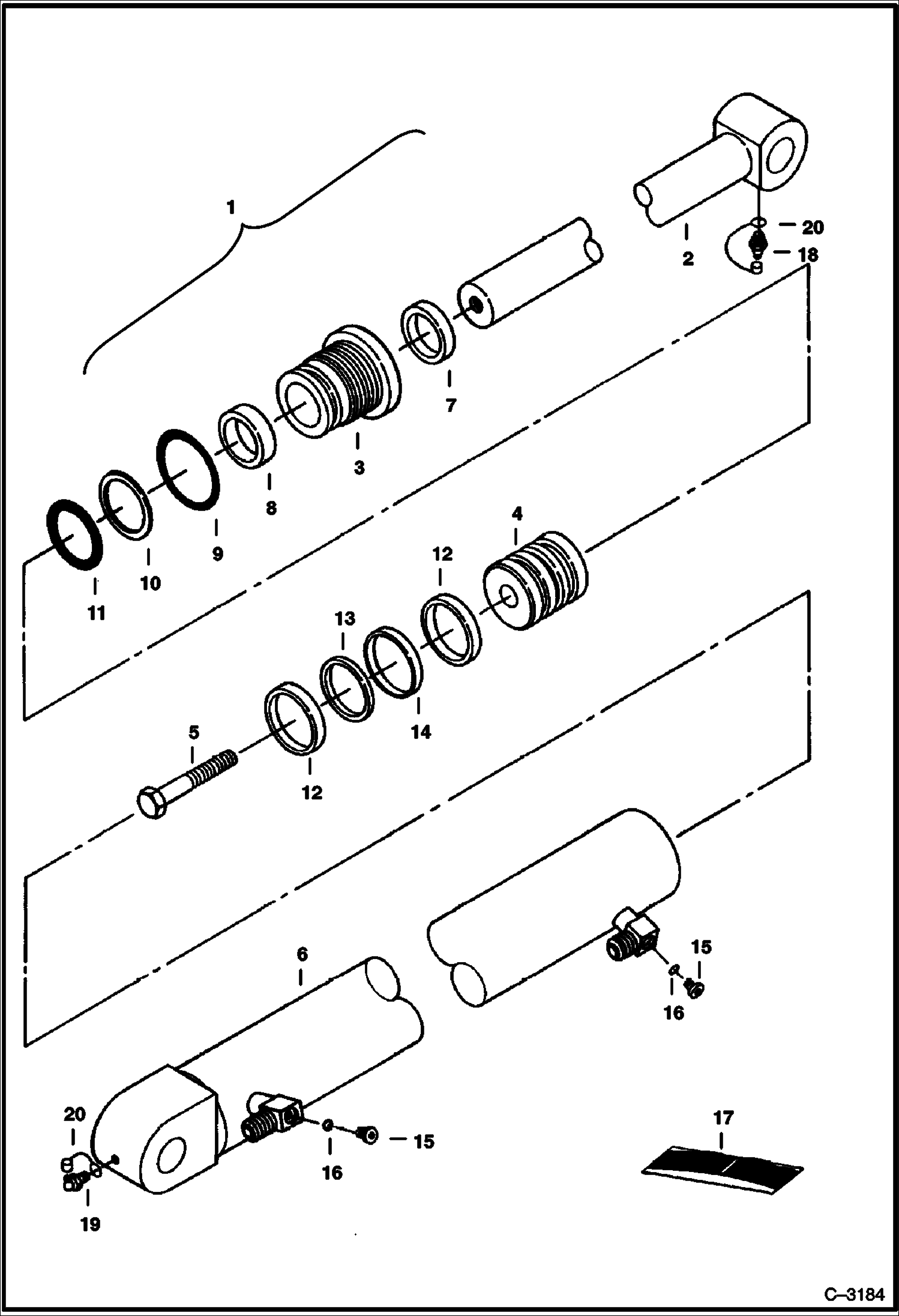

Запчасти Bobcat 220 SWING CYLINDER Bobcat HYDRAULIC SYSTEM

1

6534460

CYLINDER Ref. 2-14

2

6534463

ROD

3

6534429

HEAD

4

6534428

PISTON

5

6536346

BOLT

6

6536316

HOUSING

7

RING NSS - wiper

8

SEAL NSS

9

O-RING NSS

10

RING NSS - back-up

11

O-RING NSS

12

RING NSS

13

O-RING NSS

14

RING NSS

15

PLUG NLA - W/Ref. 16 - flat boss face - Was 47K000002B - A

15

90KV2

PLUG W/Ref. 16 - tapered boss face

16

79K3

O RING 10 for flat boss face - Was 91F000002B - A

16

95K3

O'RING for tapered boss face

17

6661046

SEAL KIT Ref. 7-14 - Was 6536322 - A

18

10H25

FITTING, GREASE 5

19

12H15

FITTING, GREASE 5

20

6652943

COVER grease fitting
