Запчасти Bobcat 220 SWING CYLINDER Original Equipment HYDRAULIC SYSTEM

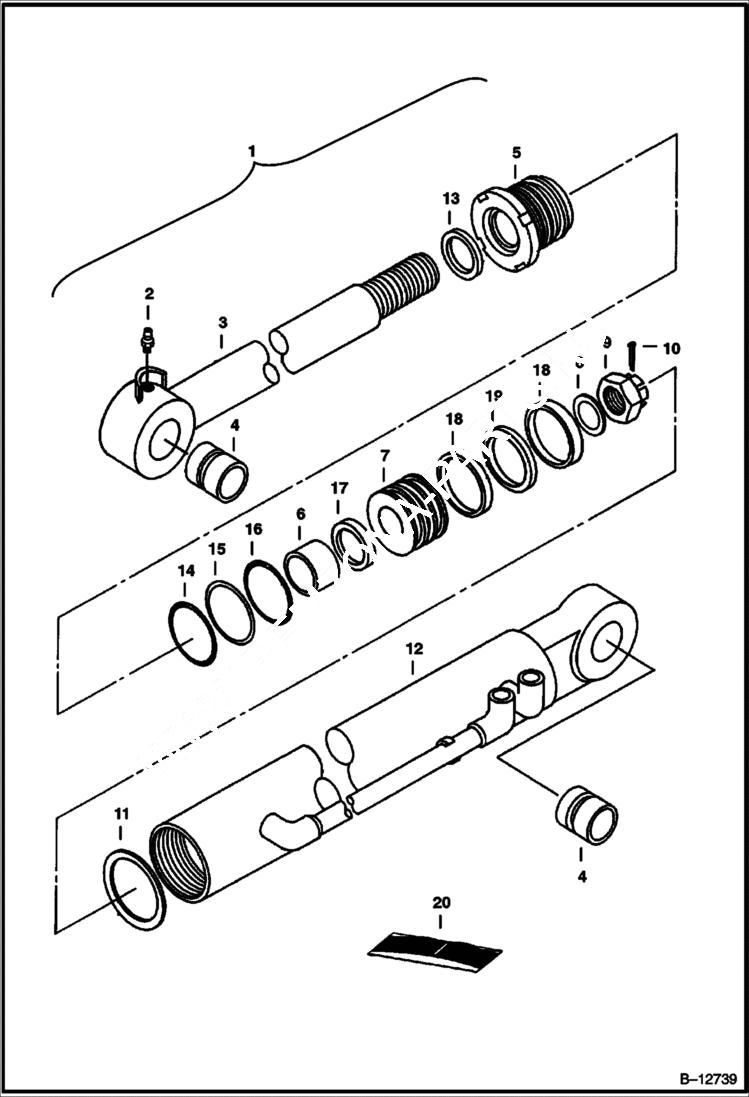

Схема запчастей Bobcat 220 - SWING CYLINDER Original Equipment HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

CYLINDER See BTIE-003 NLA - Ref. 2-19 - Was 6651896 - A

2

6652990

GREASE ZERK

3

ROD NLA - W/Ref. 4 - Was 6653003 - A

4

6652986

BUSHING

5

HEAD NLA - Was 6652995 - A

6

6652974

BUSHING

7

PISTON NLA - Was 6652996 - A

8

6652997

SHIM set

9

6652998

NUT

10

6652999

COTTER PIN

11

WASHER NLA - Was 6652980 - A

12

CASE NLA - W/Ref. 4 - Was 6653002 - A

13

RING NSS - wiper - See Ref. 20 - Was 6652976 - A

14

O-RING NSS - See Ref. 20 - Was 6652979 - A

15

BACK-UP RING NSS - See Ref. 20 - Was 6652978 - A

16

O-RING NSS - See Ref. 20 - Was 6652977 - A

17

RING NSS - See Ref. 20 - Was 6652975 - A

18

RING NSS - slide - See Ref. 20 - Was 6652988 - A

19

SEAL NSS - See Ref. 20 - Was 6652982 - A

20

6653001

SEAL KIT Ref. 13-19

Выбрано товаров: 20
