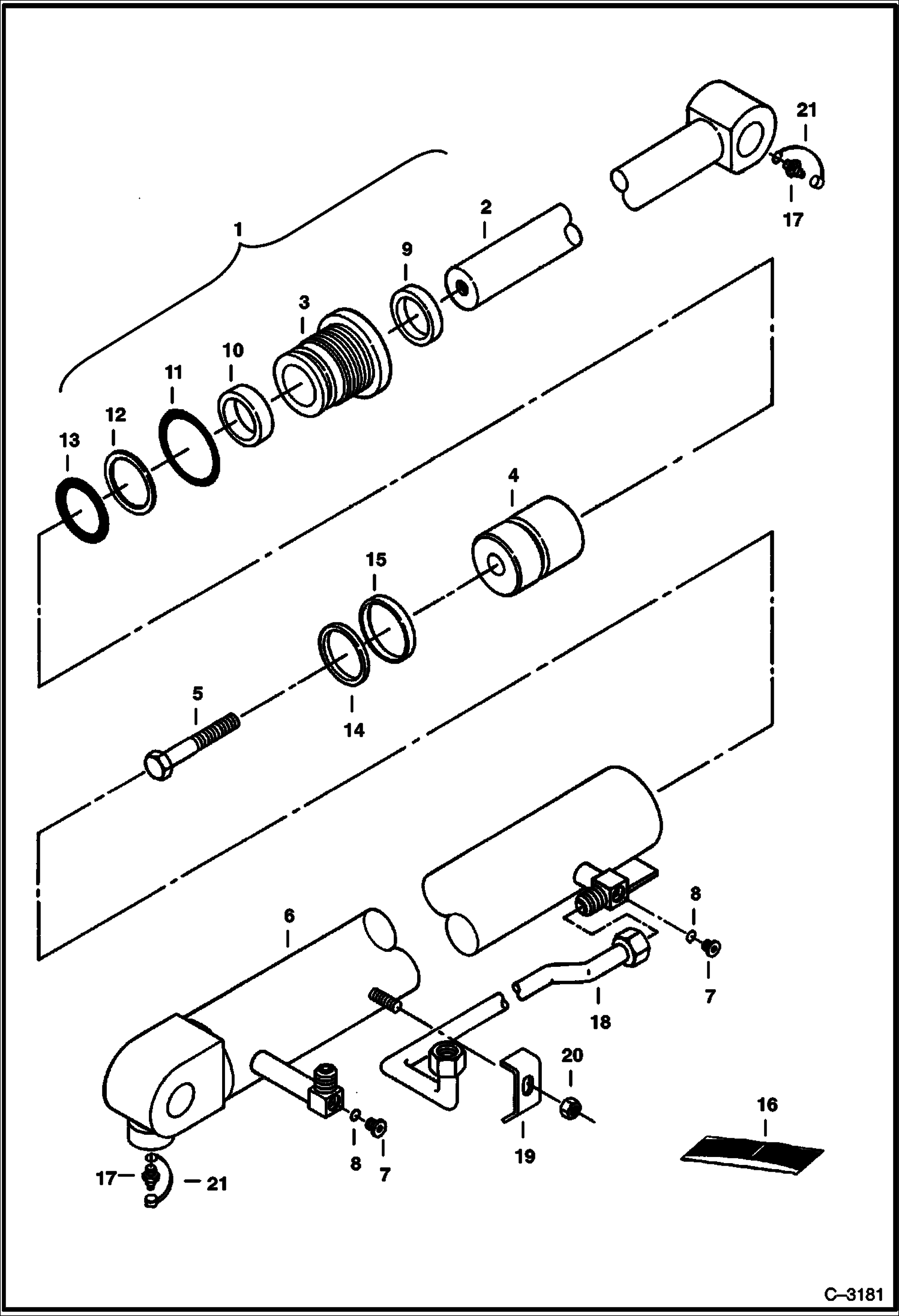

Запчасти Bobcat 220 BOOM CYLINDER Bobcat HYDRAULIC SYSTEM

1

6586723

CYLINDER See BTIE-003 Ref. 2-15 - Was 6535779 - A

2

6535782

ROD

3

6534429

HEAD

4

6535794

PISTON

5

6536345

BOLT

6

HOUSING NLA - Was 6536314 - A

7

PLUG NLA - W/Ref. 8 - flat boss face - Was 47K000002B - A

7

90KV2

PLUG tapered boss face

8

79K3

O RING 10 for flat boss face - Was 91F000002B - A

8

95K3

O'RING for tapered boss face

9

6666543

WIPER, ROD CYL

10

6665185

SEAL

11

82K229

ORING Was 58K229 - B

12

73K227

RING back-up - Was 80K-227 - B

13

25K40204

O-RING Was 54K40204 - B

14

25K30130

O RING 10 Was 54K30130 - B

15

6536642

RING

16

6661047

SEAL KIT Ref. 9-15 - Was 6536671 - A

17

10H25

FITTING, GREASE 5

18

6535778

TUBE

19

6562266

CLAMP

20

39DM10

NUT

21

6652943

COVER grease fitting
