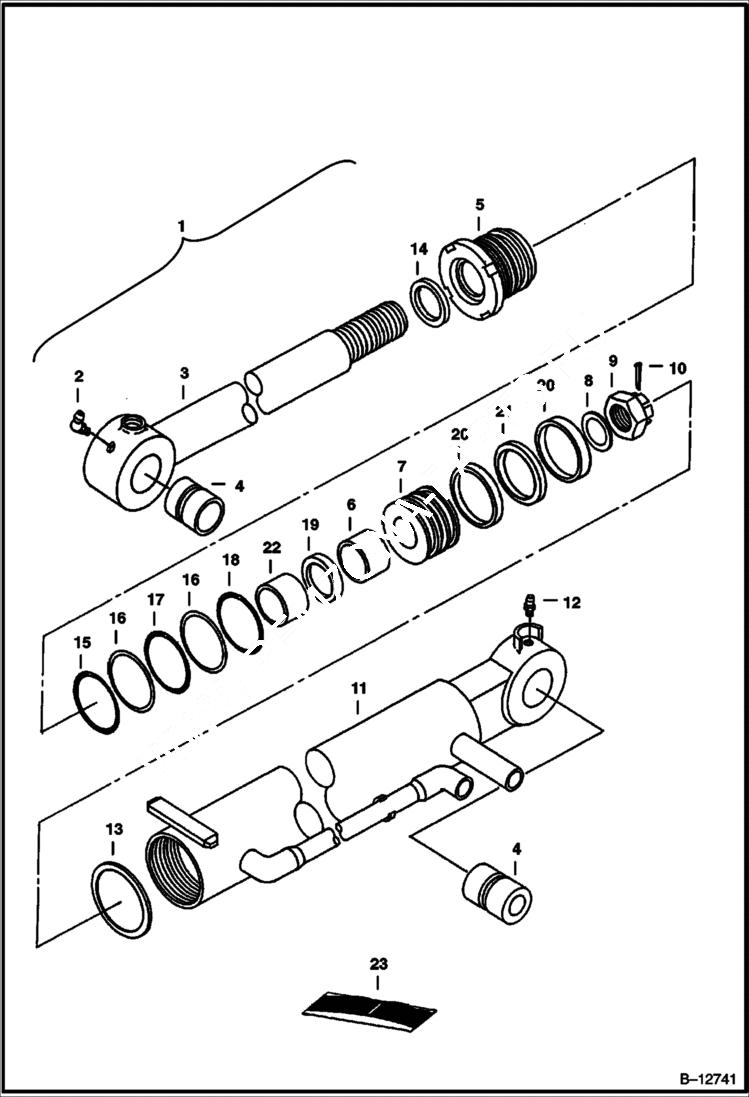

Запчасти Bobcat 220 BOOM CYLINDER Original Equipment HYDRAULIC SYSTEM

1

CYLINDER See BTIE-003 NLA - Ref. 2-22 - Was 6651893 - A

2

6652991

GREASE ZERK

3

ROD NLA - W/Ref. 4 - Was 6652972 - A

4

6652986

BUSHING

5

HEAD NLA - Was 6652973 - A

6

6652987

BUSHING

7

6652981

PISTON

8

6652983

SHIM set

9

6652984

NUT

10

6652985

COTTER PIN

11

CASE NLA - W/Ref. 4 - Was 6652971 - A

12

6652990

GREASE ZERK

13

WASHER NLA - Was 6652980 - A

14

RING NSS - wear - See Ref. 21 - Was 6652976 - A

15

O-RING NSS - See Ref. 21 - Was 6652979 - A

16

BACK-UP RING NSS - See Ref. 21 - Was 6652978 - A

17

O-RING NSS - See Ref. 21 - Was 6652977 - A

18

O-RING NSS - See Ref. 21 - Was 6652989 - A

19

RING NSS - See Ref. 21 - Was 6652975 - A

20

RING NSS - slide - See Ref. 21 - Was 6652988 - A

21

SEAL NSS - See Ref. 21 - Was 6652982 - A

22

6652974

BUSHING

23

6652992

SEAL KIT Ref. 14-21
