Запчасти Bobcat 220 ARM CYLINDER Bobcat HYDRAULIC SYSTEM

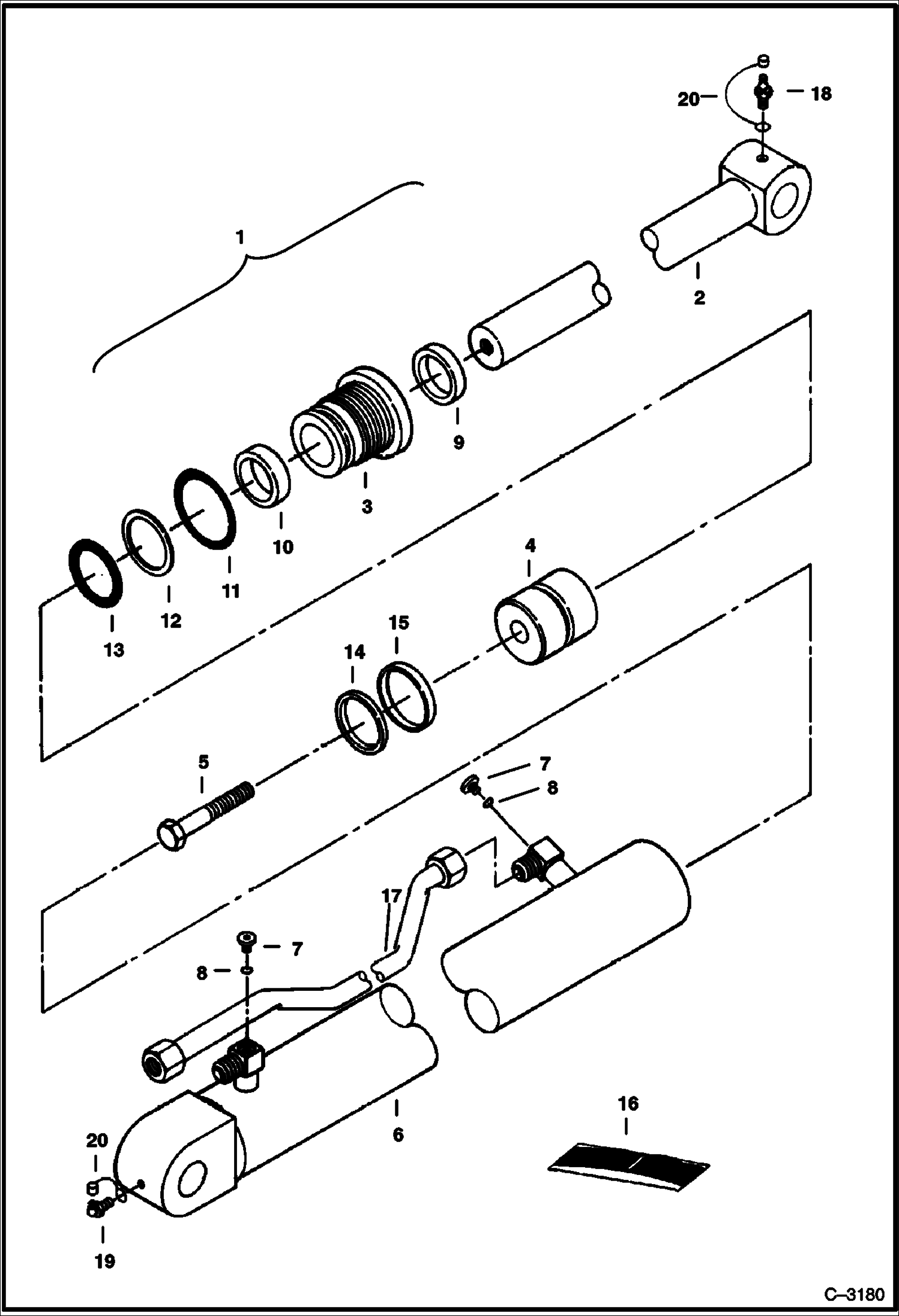

Схема запчастей Bobcat 220 - ARM CYLINDER Bobcat HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6586722

CYLINDER See BTIE-003 Ref. 2-15 - Was 6535709 - A

2

6535712

ROD

3

6586721

HEAD Was 6534429 - A

4

6536311

CYLINDER

5

6536346

BOLT

6

6536315

HOUSING

7

PLUG NLA - W/Ref. 8 - flat boss face - Was 47K000002B - A

7

90KV2

PLUG W/Ref. 8 - tapered boss face

8

79K3

O RING 10 flat boss face - Was 91F000002B - A

8

95K3

O'RING tapered boss face

9

6666543

WIPER, ROD CYL

10

6665185

SEAL

11

82K229

ORING Was 58K229 - B

12

73K227

RING back-up - Was 80K000227B - B

13

25K40204

O-RING Was 54K40204 - B

14

25K30130

O RING 10 Was 54K30130 - B

15

6536642

RING

16

6661047

SEAL KIT Ref. 9-15

17

6535708

TUBE

18

10H25

FITTING, GREASE 5

19

12H15

FITTING, GREASE 5

20

6652943

COVER grease fitting
