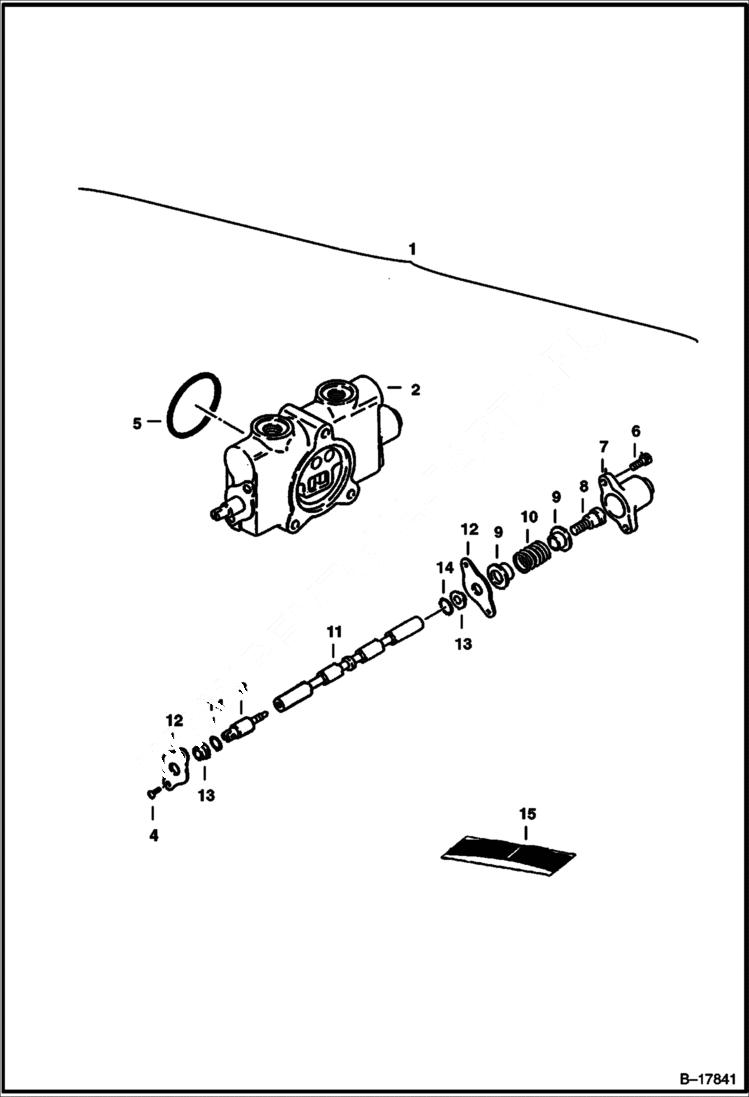

Запчасти Bobcat 220 VALVE SECTION L.H. Travel HYDRAULIC SYSTEM

1

6653092

VALVE assy. - Ref. 3-14

2

HOUSING NSS

3

6653085

HEAD

4

6653077

SCREW

5

6653396

O-RING

6

6653076

BOLT

7

6653081

COVER

8

6653084

SCREW

9

6653083

RETAINER

10

6654030

SPRING Was 6653082 - B

11

SPOOL NSS

12

6653080

PLATE

13

6653398

WIPER

14

6653397

O-RING

15

6653075

SEAL KIT Ref. 5, 13 & 14
