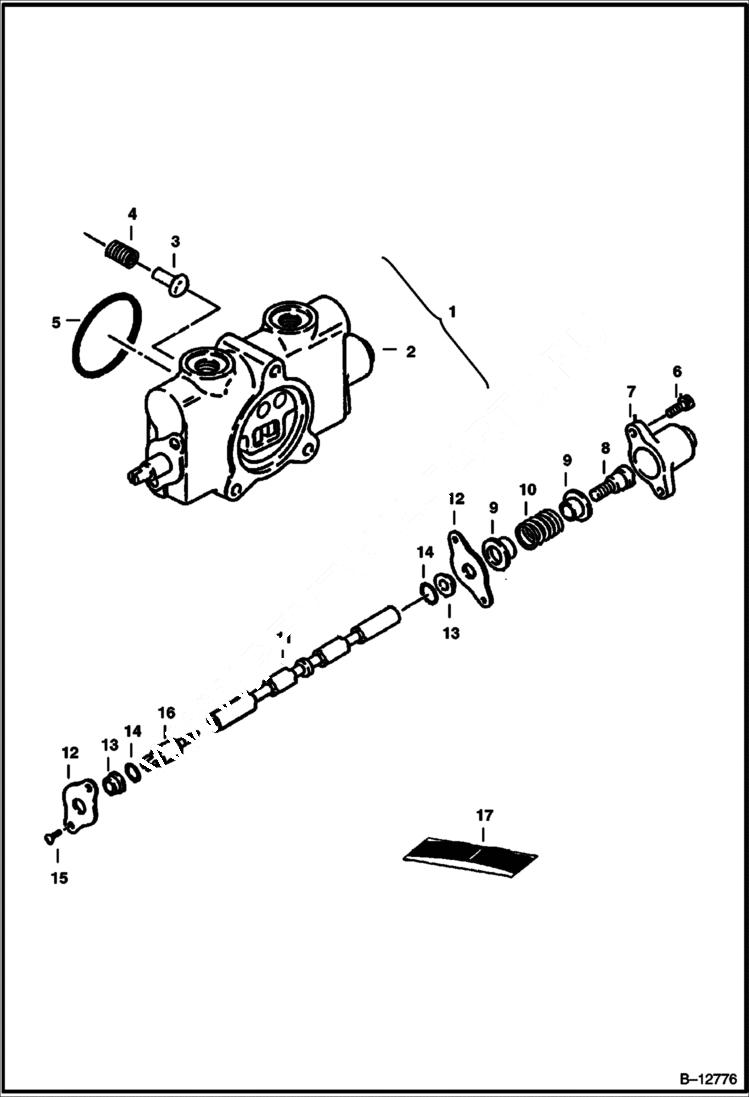

Запчасти Bobcat 220 VALVE SECTION Auxiliary, Swivel & Arm HYDRAULIC SYSTEM

1

6655559

VALVE assy., auxiliary - Ref. 2-15

1

6653090

VALVE assy., swivel - Ref. 2-15

1

6653089

VALVE assy., arm - Ref. 2-15

2

HOUSING NSS

3

6653079

CHECK VALVE

4

6653078

SPRING

5

6653396

O-RING

6

6653076

BOLT

7

6653081

COVER

8

6653084

SCREW

9

6653083

RETAINER

10

6653082

SPRING auxiliary section

10

6654030

SPRING arm & swivel section

11

SPOOL NSS

12

6653080

PLATE

13

6653398

WIPER

14

6653397

O-RING

15

6653077

SCREW

16

6653085

HEAD

17

6653075

SEAL KIT Ref. 5, 13 & 14
