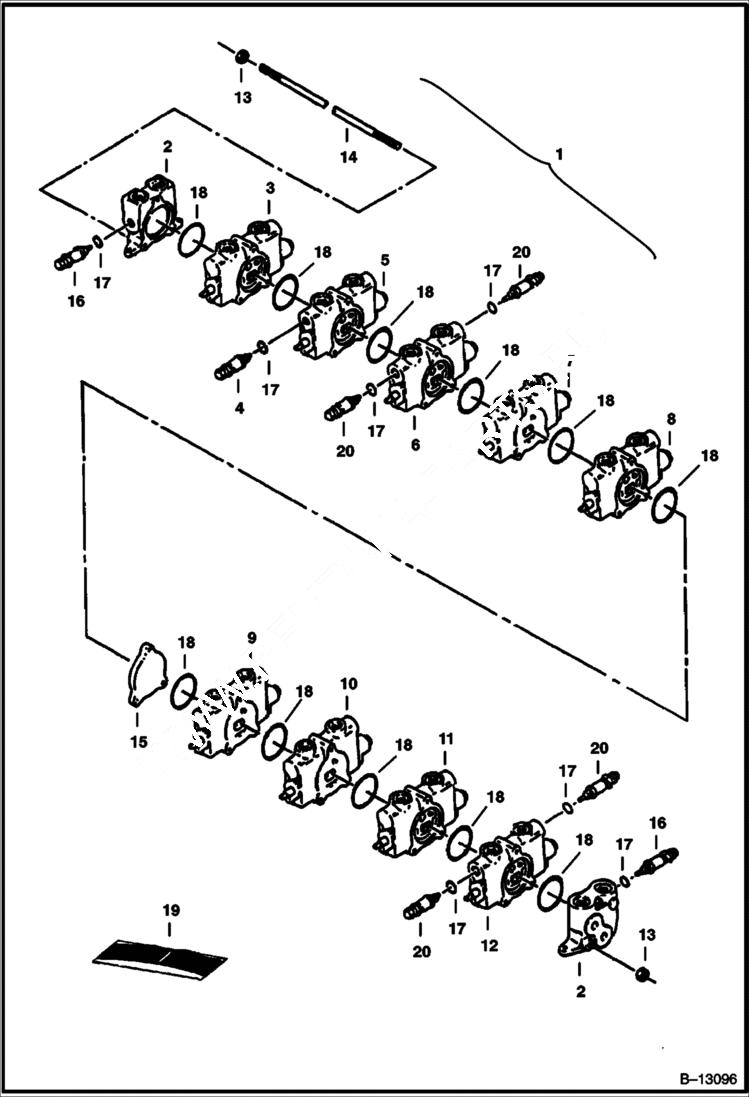

Запчасти Bobcat 220 CONTROL VALVE 9-Spool HYDRAULIC SYSTEM

1

6655393

VALVE assy. - Ref. 2-18 - Was 6654129 - A

2

6653098

SECTION inlet

3

6653097

VALVE See Illustration VALVE SECTION/ B18048 R.H. TRAVEL

4

RELIEF VALVE NLA - Relief set at 1137 PSI - 80 KGF/cm2 - Was 6655558 - A

5

6655560

VALVE See Illustration VALVE SECTION/ B12780 BLADE

6

6653095

VALVE See Illustration VALVE SECTION/ B12780 BOOM

7

6653094

VALVE See Illustration VALVE SECTION/ B12780 BUCKET

8

6653093

VALVE See Illustration VALVE SECTION/ B12780 BOOM SWING

9

6653092

VALVE See Illustration VALVE SECTION/ B17841 L.H. TRAVEL

10

6655559

VALVE See Illustration VALVE SECTION/ B12776 AUX.

11

6653090

VALVE See Illustration VALVE SECTION/ B12776 SWIVEL

12

6653089

VALVE See Illustration VALVE SECTION/ B12776 ARM

13

6653100

NUT

14

6655561

ROD

15

6653088

SPACER

16

6657014

RELIEF VALVE Relief set at 2133 PSI 150 kgf/cm - Was 6653087 - A

17

6653447

O-RING Was 6535174 - A

18

6653396

O-RING

19

6658589

SEAL KIT Includes all O-rings and seals needed to repair complete valve - Was NLA

20

6657015

RELIEF VALVE Relief set at 2700 PSI 190 kgf/cm
