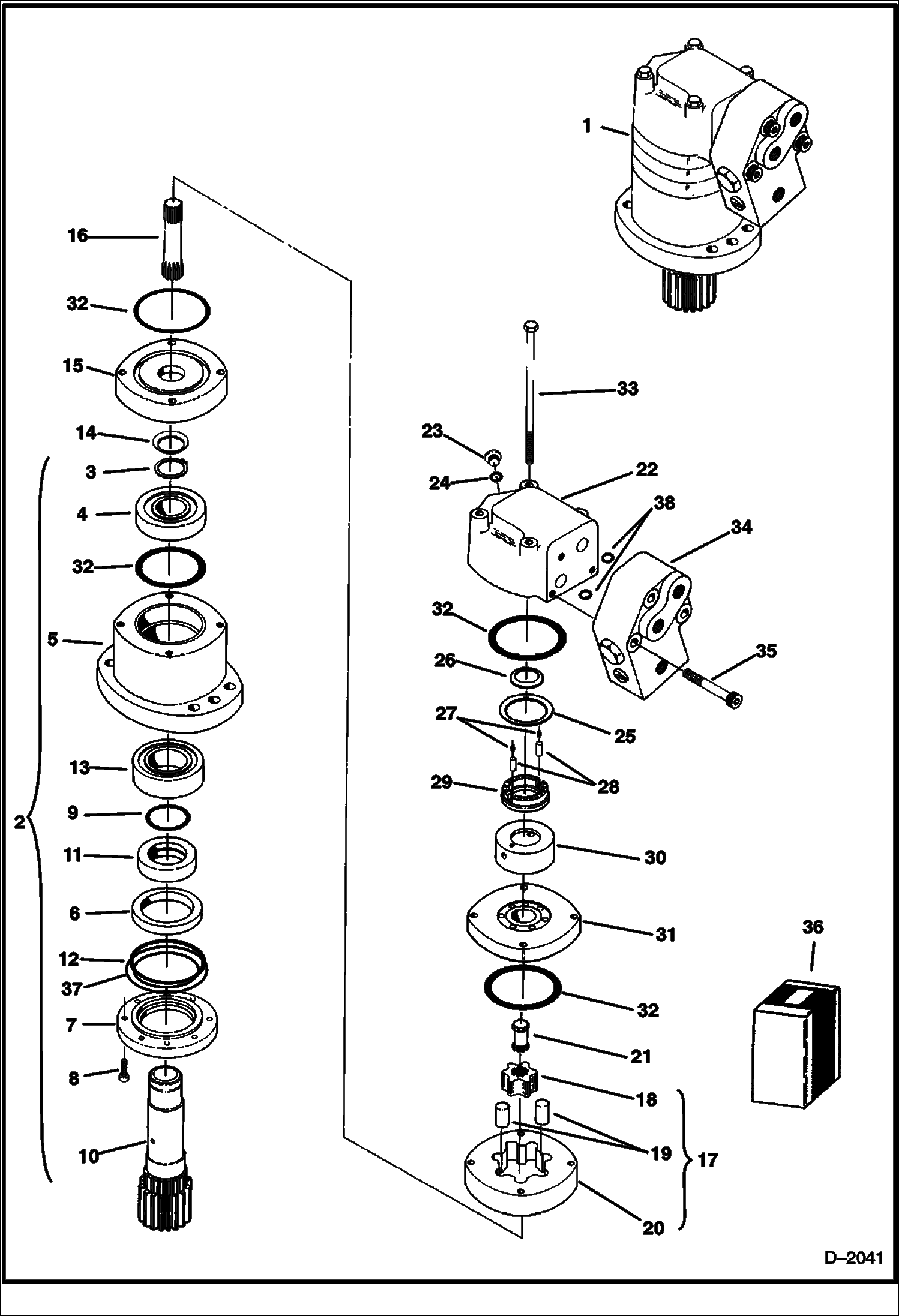

Запчасти Bobcat 220 SWING MOTOR Model # 144-1001-006 HYDRAULIC SYSTEM

1

SWING MOTOR NLA - assy. - W/Ref. 2-35 & 37 - Order 6665347 swing motor, Ref. 38, 6535424, 6535425 & 6535426 - Was 6653461

2

SHAFT NLA - assy. - W/Ref. 3-13, 32 & 37 - Order 6671069 and Ref. 38

3

SNAP RING NLA - Order Ref. 2 - Was 6656359 - A

4

BEARING NLA - Order Ref. 2 - Was 6656360 - A

5

HOUSING NLA - Order Ref. 2 - Was 6656361 - A

6

6656362

SEAL W/Seal Kit Ref. 36

7

6659996

RETAINER seal

8

6659997

BOLT

9

O-RING NLA - Order Ref. 36

10

SHAFT NLA - Order Ref. 2

11

SLEEVE NLA - Order Ref. 2

12

6513537

O-RING W/Seal Kit Ref. 36

13

BEARING NLA - Order Ref. 2

14

SEAL NLA - Order 6690987 - Was 1992098 - A

15

6651956

PLATE

16

6669150

DRIVE Was 6630032 - A

17

6671070

GEROLER assy. - W/Ref. 18-20

18

STAR NSS - Order Ref. 17

19

ROLLER NSS - Order Ref. 17

20

RING NSS - Order Ref. 17

21

1992084

DR VALVE

22

6632348

HOUSING Was 6632289 - A

23

1992104

PLUG W/Ref. 24

24

79K4

O RING 10 W/Seal Kit Ref. 36

25

SEAL NLA - Order Ref. 36 seal kit - Was 6653300 - A

26

1992100

SEAL W/Seal Kit Ref. 36

27

1992088

SPRING

28

1992102

PIN

29

6630027

BALANCE RING

30

6632288

VALVE

31

6656368

PLATE

32

6662955

SEAL W/Seal Kit Ref. 36

33

6651951

BOLT

34

6671071

VALVE See Illustration CROSSOVER RELIEF VALVE/ B25160 ASSY.

35

6656376

BOLT

36

6676960

SEAL KIT W/Ref. 3, 6, 9, 12, 14, 24-26, 32 & 37 - Was 6659998 - A

37

6673869

WASHER back-up - W/Seal Kit Ref. 36

38

25K30022

O RING 10 not in seal kit
