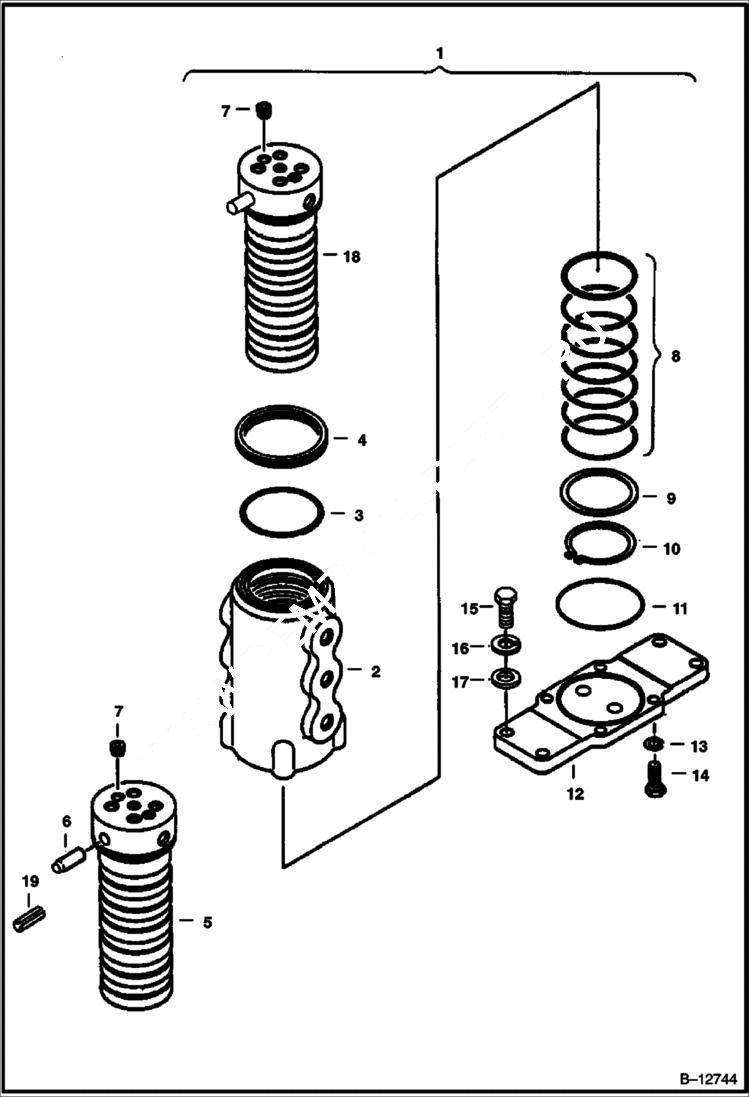

Запчасти Bobcat 220 SWIVEL JOINT (W/Pin Swivel Stop) HYDRAULIC SYSTEM

1

SWIVEL JOINT See BTIE-032 NLA - Ref. 2-14 - W/Press in pin - Was 6533937 - A

1

SWIVEL JOINT See BTIE-032 NLA - Ref. 2-4 & 6 -18 - W/Welded on pin - Was 6658956 - A

2

BODY See BTIE-032 NLA - Was 6533946 - A

3

6535153

O-RING

4

6535154

SEAL

5

ROTOR NLA - W/press in pin - order Ref. 18 & 6538801 - Was 6533947 - A

6

6538824

PIN Use with LocTite #609 - Was 6538800 - D

7

6535156

PLUG

8

6655318

O-RING

9

WASHER NLA - thrust - Was 6533949 - A

10

6535158

SNAP RING

11

6535159

O-RING

12

6533948

FLANGE

13

6EM100

WASHER

14

1CM1025

BOLT

15

1CM835

BOLT

16

6EM80

WASHER, SPRING

17

15EM80

WASHER

18

6658955

ROTOR W/Welded on pin

19

ROLL PIN NLA - Order Ref. 6 - Was 2JM01040B - A
