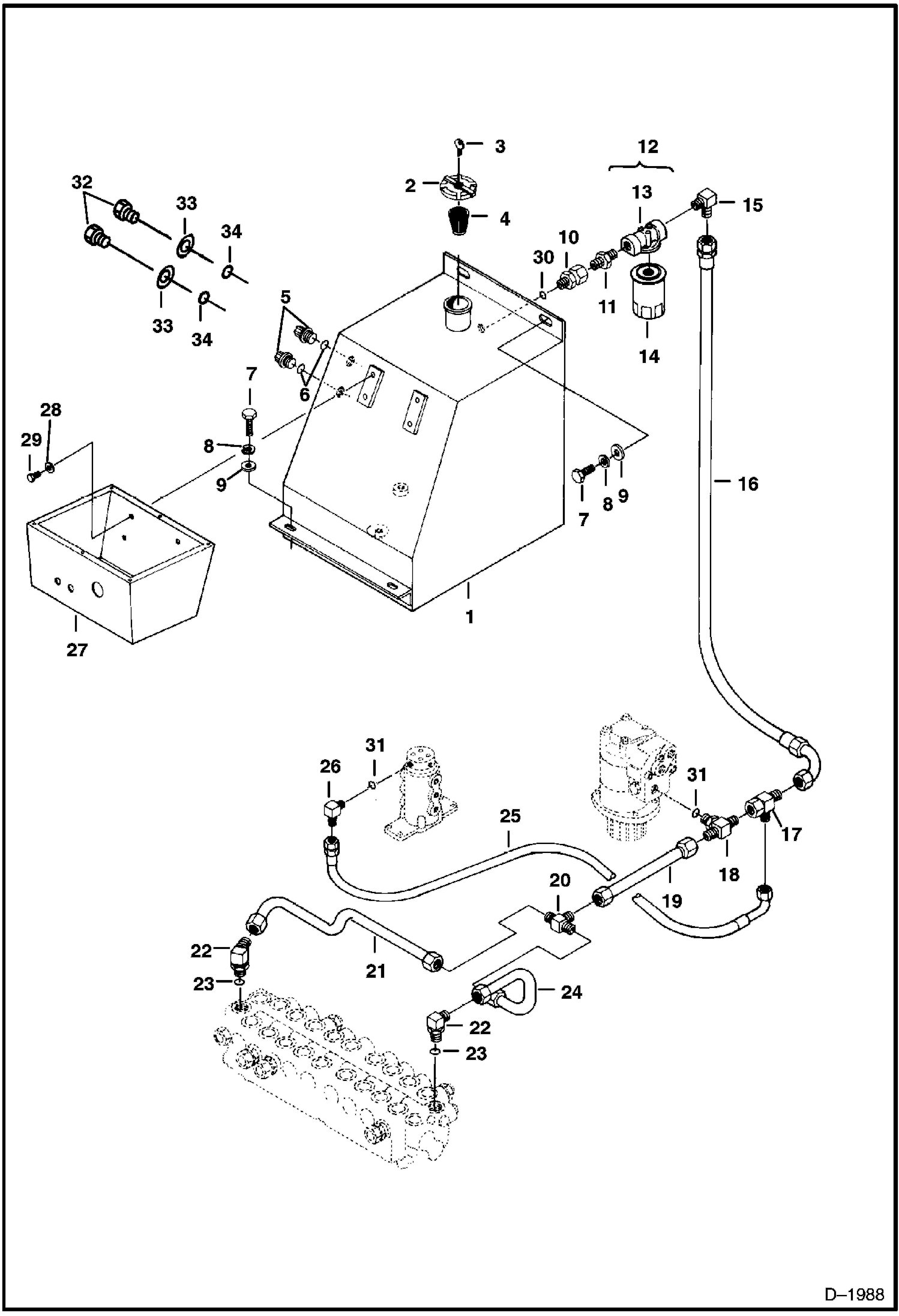

Запчасти Bobcat 220 HYDRAULIC CIRCUITRY Valve to Filter to Tank HYDRAULIC SYSTEM

1

6533941

TANK

2

CAP NLA - locking - W/Ref. 3 - code GC020 - Order 6662030 - Was 6659249 - A

2

6662030

CAP locking - order key separately - code PK510

3

6654374

KEY code GC020

3

6587458

KEY code PK510

4

7120881

SCREEN, FILLER W/brass wear collar - Was 6569219 - A

5

BULB NLA - sight gauge - W/Ref. 6 - Order Ref. 32 - Was 6655035 - A

6

O-RING NLA

7

1CM1020

BOLT

8

6EM100

WASHER

9

15EM100

WASHER

10

2505198

ADAPTER W/Ref. 30

11

15KB1216

FITTING, HYD CONNECTOR Was 712555B - A

12

FILTER NLA - assy - W/Ref. 13 & 14 - Was 6655072 - A

13

6655073

HEAD

14

6653336

ELEMENT

15

731016

ELBOW

16

6535452

HOSE

17

6535460

TEE

18

6535461

TEE

19

6535413

TUBE

19

6535426

TUBE

20

6560136

TEE

21

6535412

TUBE

22

6654893

ELBOW W/Ref. 23

23

79K8

O RING 10

24

6535411

TUBE

25

6535445

HOSE

26

6654378

ELBOW Use W/swivel joint 6658956

26

17K5

ELBOW W/Ref. 31 - Use W/swivel joint 6664906

27

6534800

PANEL instrument

28

6EM60

WASHER, SPRING

29

1CM610

BOLT

30

79K12

O RING 10

31

79K6

O RING 10

32

6539386

SIGHT GAUGE sight gauge - W/Refs. 33 & 34

33

6539342

WASHER

34

79K10

O RING 10
