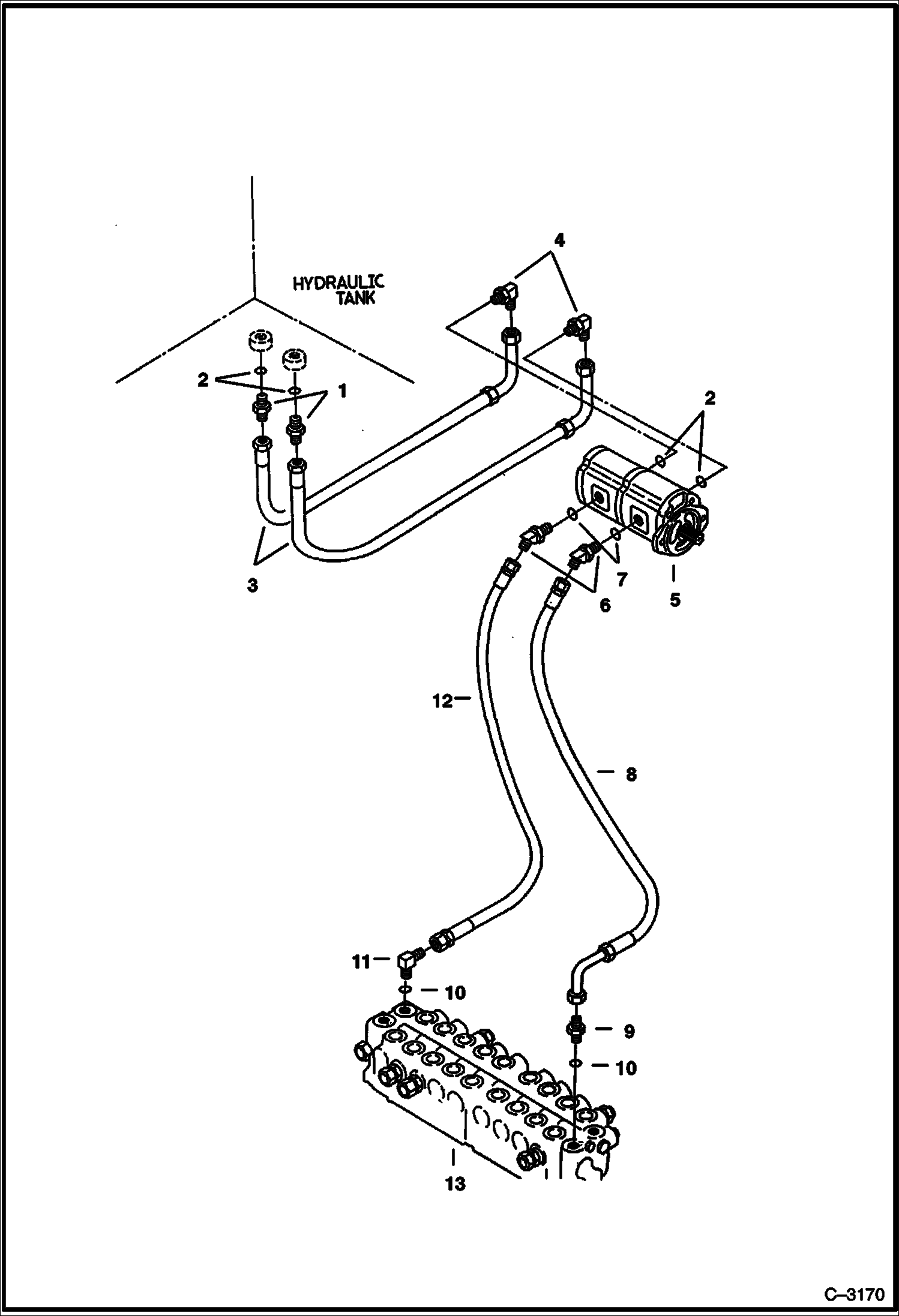

Запчасти Bobcat 220 HYDRAULIC CIRCUITRY Valve to Pump to Tank HYDRAULIC SYSTEM

1

15K8

FITTING W/Ref. 2

2

79K12

O RING 10

3

6535419

HOSE

4

17K8

FITTING W/Ref. 2

5

PUMP ASSY. See Illustration GEAR PUMP/ B12778 NLA - Was 6651890 - A

6

18K7

FITTING

7

79K10

O RING 10

8

6535474

HOSE

9

6654375

ADAPTER W/Ref. 2

10

79K6

O RING 10

11

6654376

ELBOW W/Ref. 2

12

6535475

HOSE

13

6655393

VALVE See Illustration CONTROL VALVE/ B13096 Was 6654129 - A
