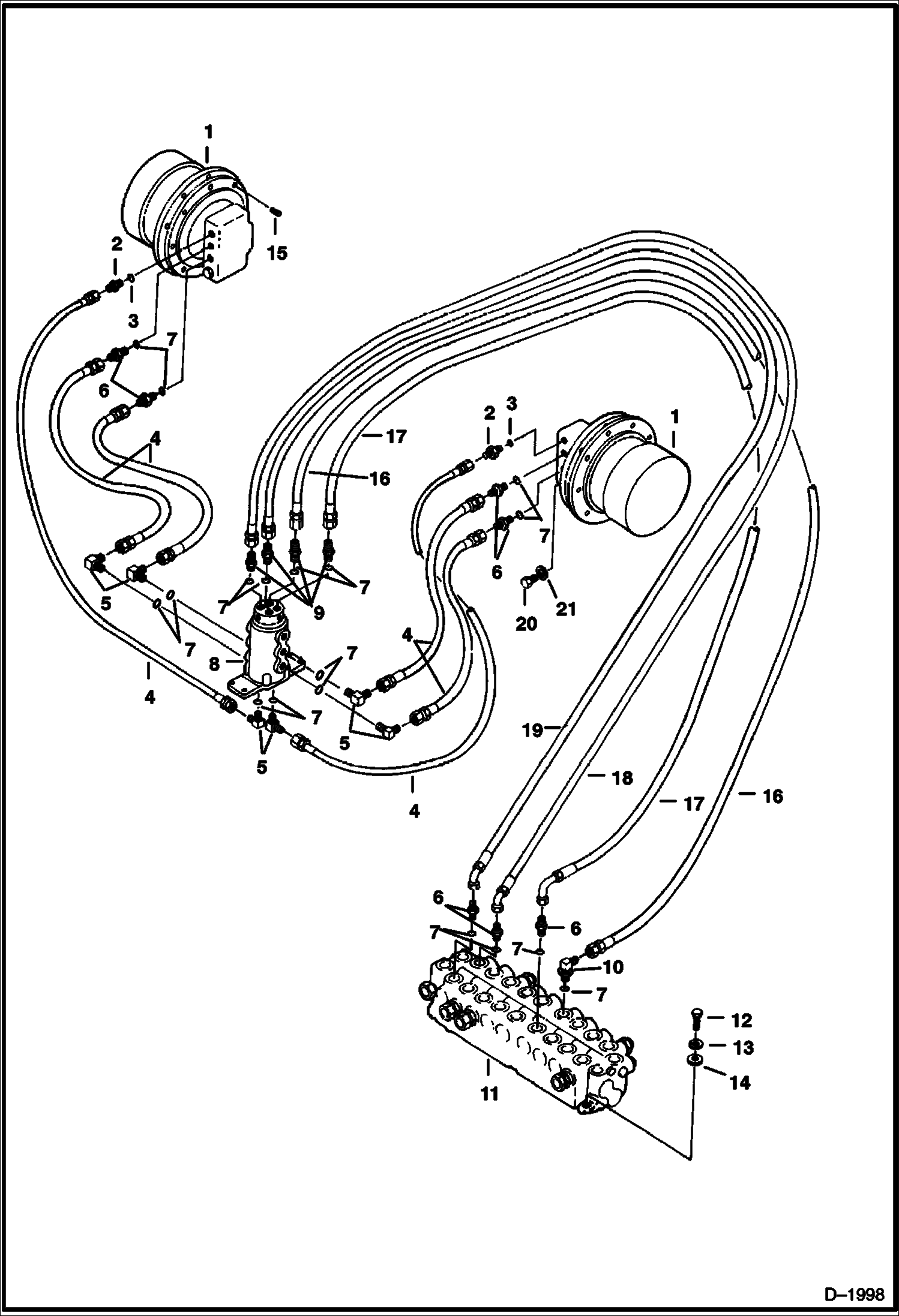

Запчасти Bobcat 220 HYDRAULIC CIRCUITRY Valve to Travel Motor HYDRAULIC SYSTEM

1

MOTOR See Illustration TRAVEL MOTOR/ D1922 See BTIE-049 NLA - travel - Was 6651892 - A

2

6654895

ADAPTER W/Ref. 3

3

79K4

O RING 10

4

6535444

HOSE

5

6654378

ELBOW Use with swivel joint 6658956

5

17K5

ELBOW W/Ref. 7 - Use W/swivel joint 6664409

6

6654375

ADAPTER W/Ref. 7

7

79K6

O RING 10

8

CONNECTOR See Illustration SWIVEL JOINT/ B14077 See Illustration SWIVEL JOINT/ B12744

9

6654377

ADAPTER Use with swivel joint 6658956

9

15K5

FITTING W/Ref. 7 - Use W/swivel joint 6664409

10

6654376

ELBOW W/Ref. 7

11

6655393

VALVE See Illustration CONTROL VALVE/ B13096 Was 6654129 - A

12

1CM1030

BOLT

13

6EM100

WASHER

14

15EM100

WASHER

15

29CM1025

BOLT Was 7GM01025B - A

16

6535451

HOSE

17

6535447

HOSE

18

6535448

HOSE

19

6535449

HOSE

20

6535106

PLUG W/Ref. 21

21

6535105

O-RING
