Запчасти Bobcat 220 HYDRAULIC CIRCUITRY Valve to Bucket & Boom Swing - With Swing Cylinder Lock Valve HYDRAULIC SYSTEM

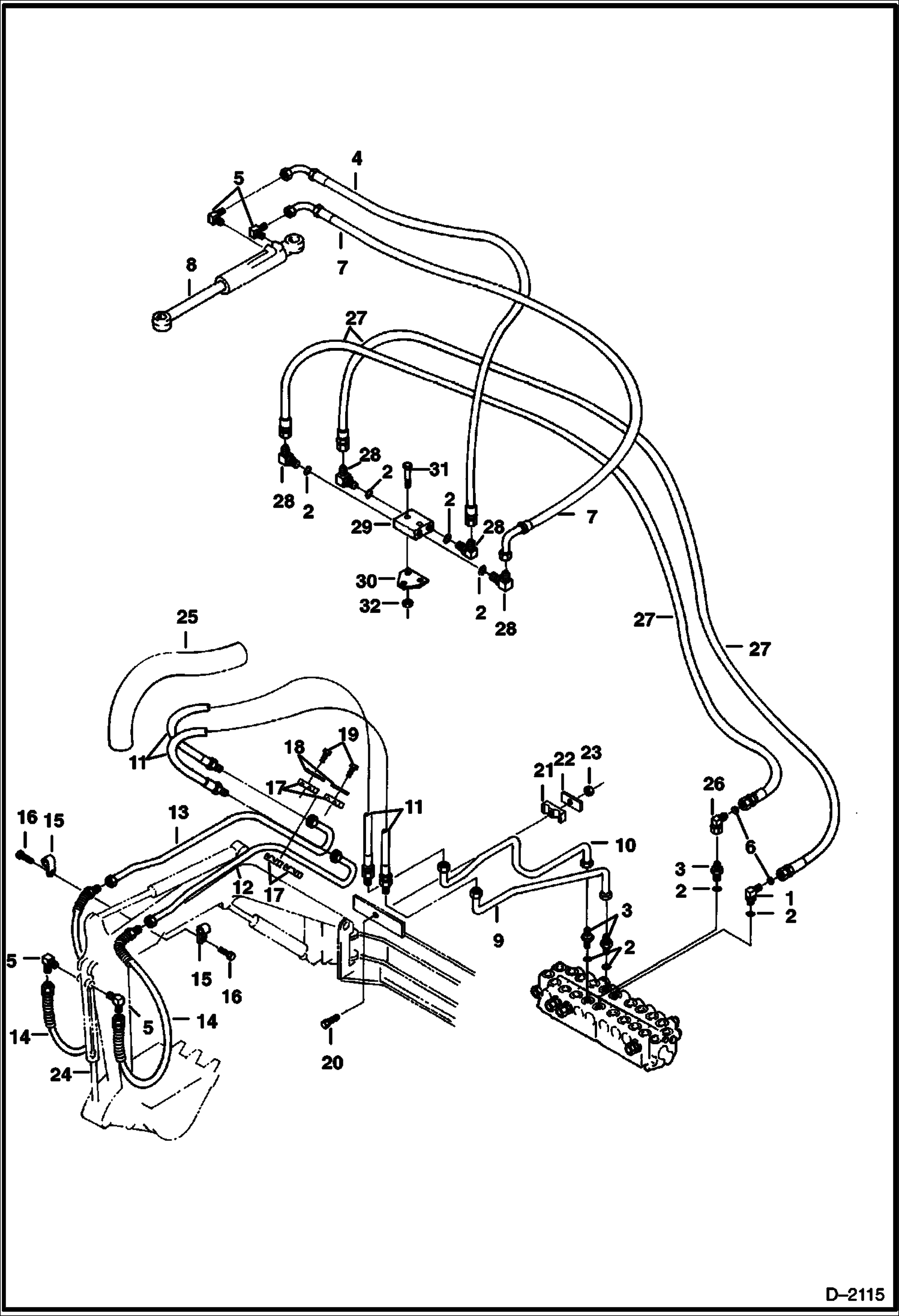

Схема запчастей Bobcat 220 - HYDRAULIC CIRCUITRY Valve to Bucket & Boom Swing - With Swing Cylinder Lock Valve HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6654376

ELBOW W/Ref. 2

2

79K6

O RING 10

3

6654375

ADAPTER

4

6533047

HOSE

5

6654378

ELBOW

6

6593801

ORIFICE

7

6535443

HOSE

8

CYLINDER See Illustration BOOM CYLINDER/ B12741 See BTIE-003 NLA - BOOM SWING - WAS 6651896 - A

9

6535403

TUBE

10

6535404

TUBE

11

6534838

HOSE

12

6534844

TUBE

13

6534843

TUBE

14

6534841

HOSE

15

30H23

CLAMP

16

26GM8026

BOLT Was 26GM10020B - A

17

6658870

CLAMP

18

6535422

COVER Was 6579255 - A

19

17C420

BOLT

20

1CM840

BOLT

21

6577697

CLAMP Was 6701893 - B

22

6652521

PLATE

23

1DM8

NUT

24

CYLINDER See Illustration BUCKET CYLINDER/ B12737 See BTIE-003 NLA - BUCKET - WAS 6651895 - A

25

6650108

HOSE COVER 1.25'' I.D. - Bulk - Sold Per Foot

26

11K5

FITTING

27

6530892

HOSE

28

17K5

ELBOW W/Ref. 2

29

6630527

VALVE See Illustration SWING CYLINDER LOCK VALVE KIT/ B17646 lock - Swing Cylinder Lock Valve Kit

29

6660645

SEAL KIT

30

6537373

BRACKET

31

1CM850

BOLT

32

39DM8

NUT

Выбрано товаров: 33
