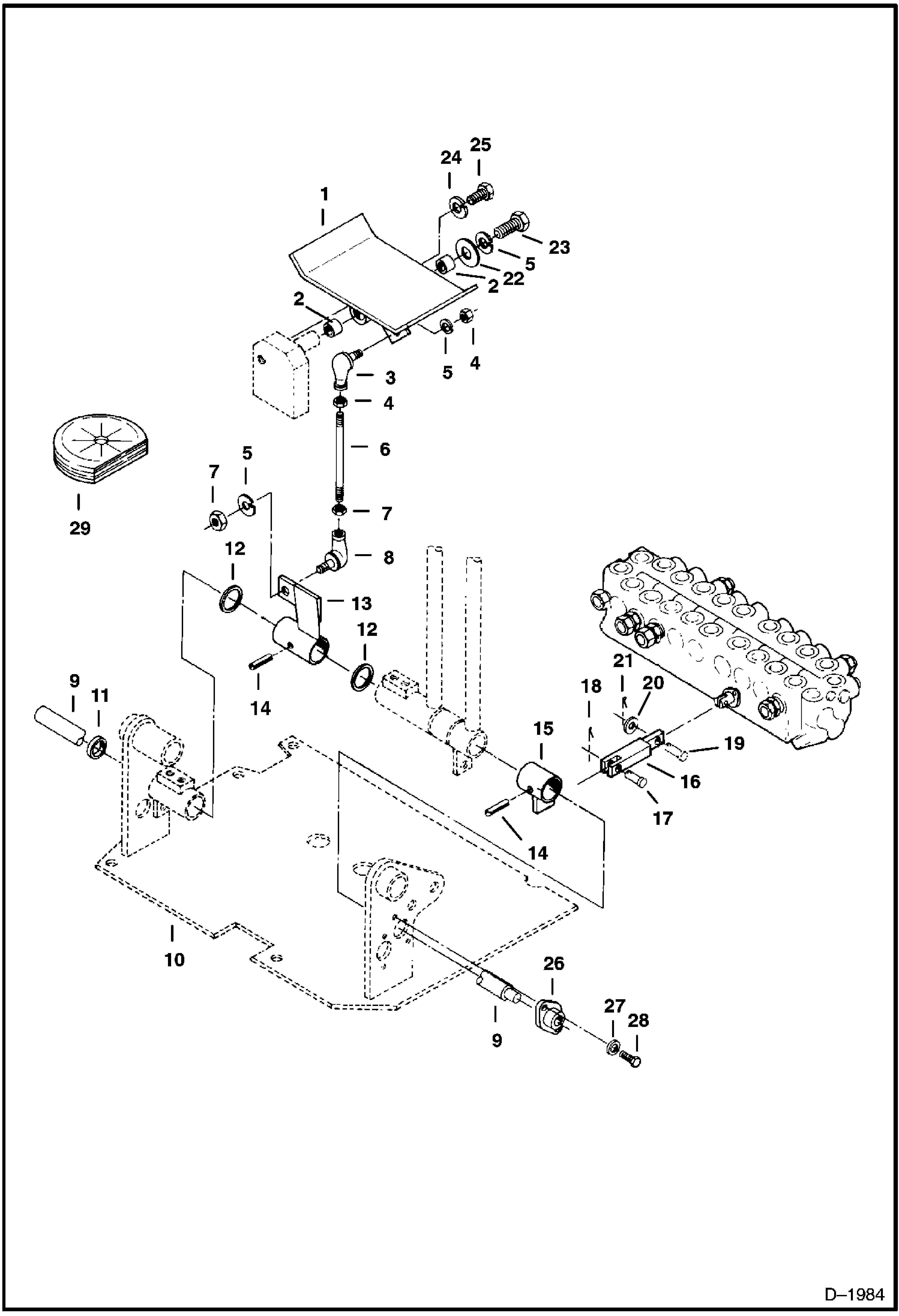

Запчасти Bobcat 220 CONTROL PEDAL Auxiliary Hydraulics CONTROLS

1

6533730

PEDAL W/Ref. 2

2

6652555

BUSHING

3

6535026

BALL JOINT 8 mm thread - R.H.

4

1DM8

NUT

5

6EM80

WASHER, SPRING

6

6535029

ROD

7

6533905

NUT 8 mm thread - L.H.

8

BALL JOINT NLA - Was 6534746 - A

9

SHAFT NLA - Was 6534828 - A

10

6534830

PLATE See Illustration TRAVEL CONTROLS/ D1982 W/Ref. 11

11

6651905

BUSHING

12

6534701

SHIM

13

6533999

LEVER

14

6535030

ROLL PIN

15

6533761

LEVER

16

YOKE NLA - Was 6534825 - A

17

PIN NLA - Was 6533788 - A

18

13JM20016

SPLIT PIN

19

6534700

PIN

20

6535011

WASHER

21

13JM10016

COTTERPIN

22

15EM80

WASHER

23

1CM816

BOLT

24

6EM100

WASHER

25

1CM1016

SCREW

26

6654206

BEARING

27

6EM60

WASHER, SPRING

28

1CM616

SCREW Was 1CM00615B - A

29

6535000

GROMMET
