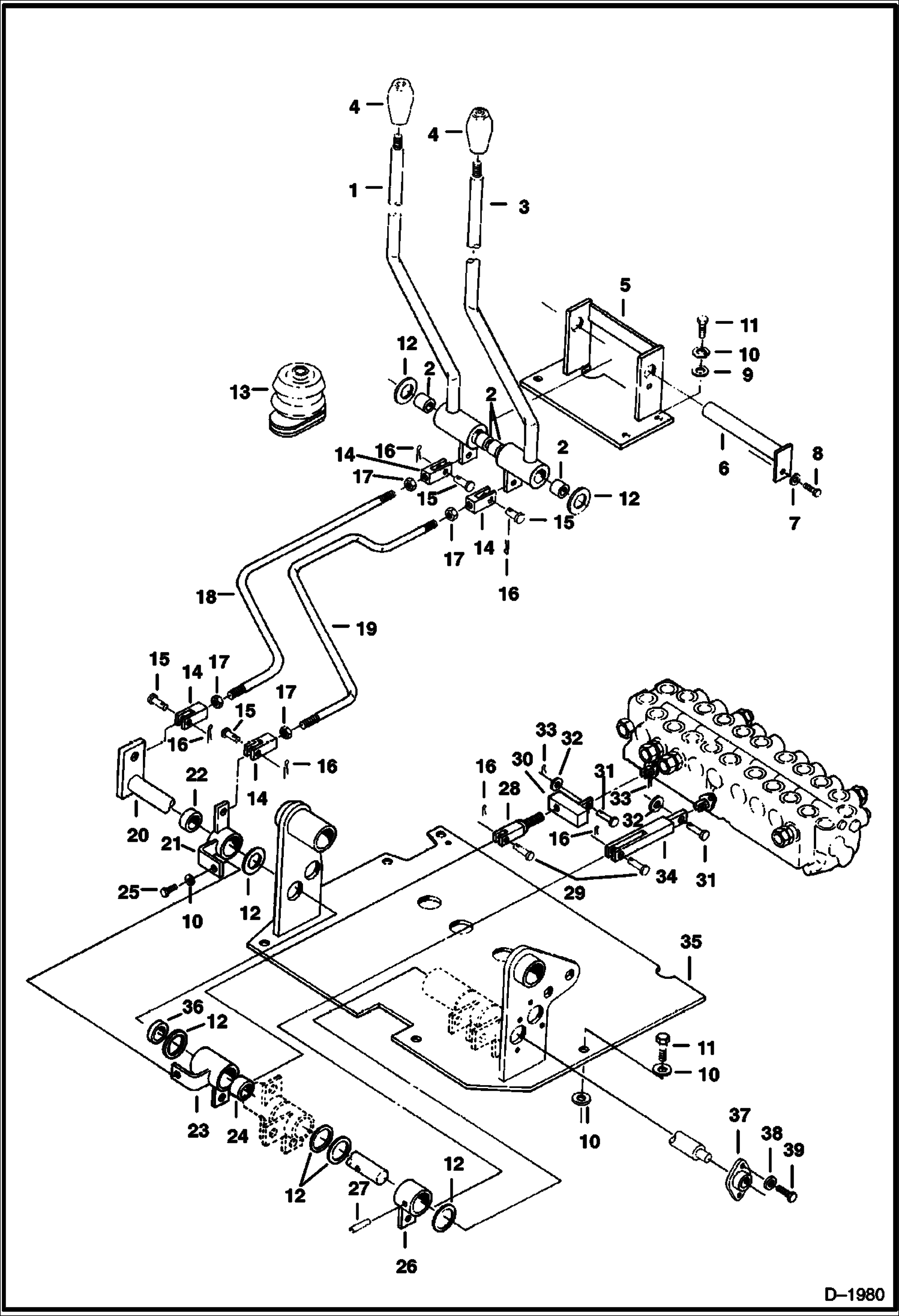

Запчасти Bobcat 220 BOOM SWING & BLADE CONTROL CONTROLS

1

6533725

LEVER W/Ref. 2

2

6651905

BUSHING

3

6533729

LEVER W/Ref. 2

4

6535015

KNOB

5

6533750

BRACKET

6

SHAFT NLA - Was 6533779 - A

7

6EM80

WASHER, SPRING

8

1CM816

BOLT Was 1CM00815B - A

9

15EM100

WASHER

10

6EM100

WASHER

11

1CM1020

BOLT

12

6534701

SHIM

13

6535016

BOOT

14

6533785

YOKE

15

6533787

PIN

16

13JM20016

SPLIT PIN

17

1DM10

NUT

18

6533796

ROD

19

6533795

ROD

20

6534829

ROD

21

6533771

LEVER W/Ref. 22

22

6651907

BUSHING

23

6533767

LEVER

24

6652556

BUSHING

25

1CM1015

BOLT

26

6533763

LEVER

27

1JM6032

PINS

28

6535432

YOKE

29

PIN NLA - Was 6533788 - A

30

6535430

YOKE

31

6534700

PIN

32

6535011

WASHER

33

13JM10016

COTTERPIN

34

6534832

YOKE

35

6534830

PLATE W/Ref. 36

36

6651905

BUSHING

37

6654206

BEARING

38

6EM60

WASHER, SPRING

39

1CM616

SCREW Was 1CM00615B - A
