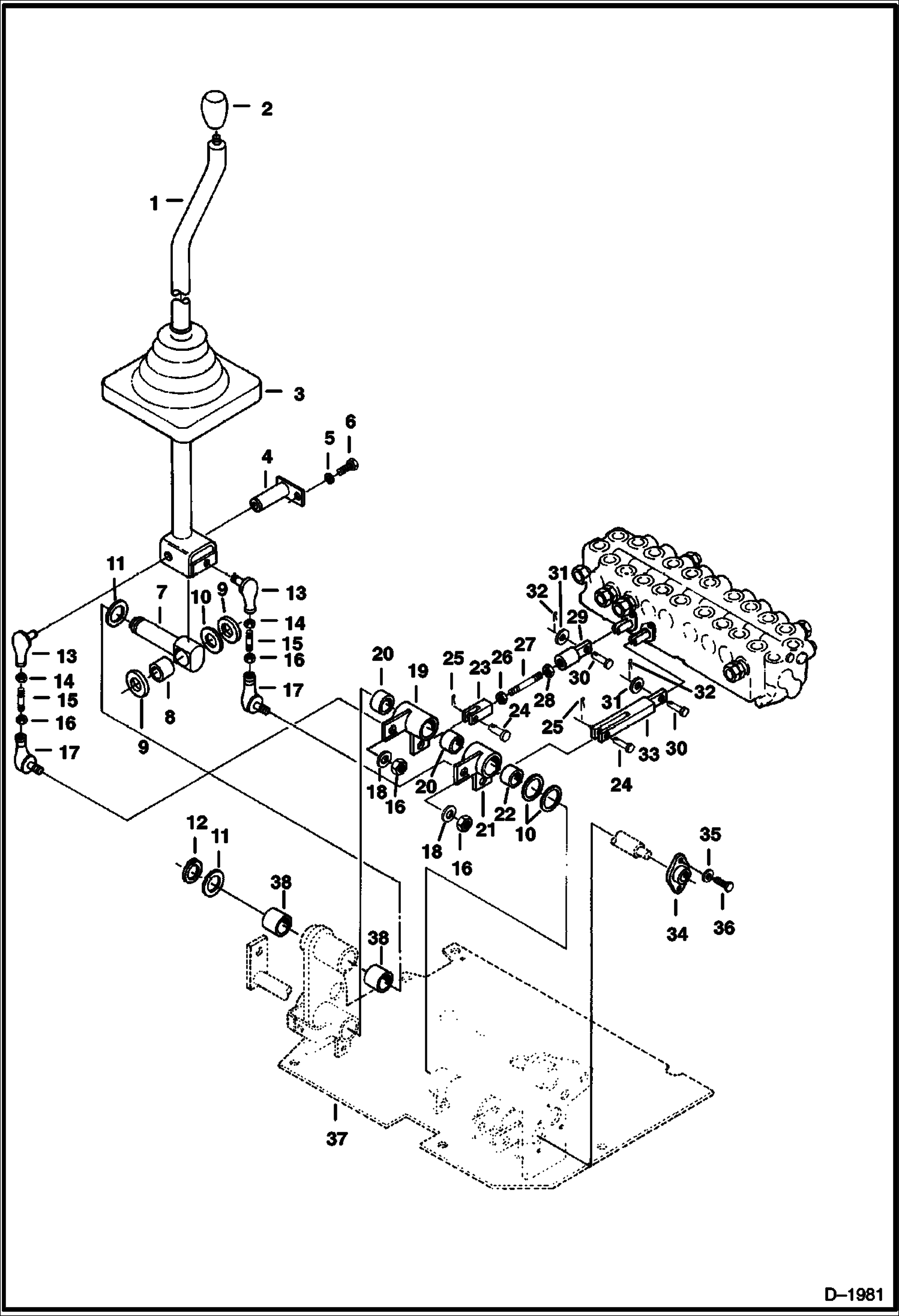

Запчасти Bobcat 220 BOOM & BUCKET CONTROL CONTROLS

1

6533713

LEVER

2

6535015

KNOB

3

BOOT NLA - Was 6535012 - A

4

PIN NLA - Was 6533776 - A

5

6EM80

WASHER, SPRING

6

1CM816

BOLT

7

6533985

ROD W/Ref. 8

8

6535014

BUSHING

9

6533794

SPACER

10

6534701

SHIM

11

6535013

WASHER

12

5JM20

CIRCLIP, EXTERNAL

13

6535010

BALL JOINT 10 mm thread - R.H.

14

1DM10

NUT

15

6533791

ROD

16

6533906

NUT 10 mm thread - L.H.

17

6534745

BALL JOINT 10 mm thread - L.H.

18

6EM100

WASHER

19

6533998

LEVER W/Ref. 20

20

6652556

BUSHING

21

6533766

LEVER W/Ref. 22

22

6651904

BUSHING

23

6533786

YOKE

24

6533788

PIN

25

13JM20016

SPLIT PIN

26

6533905

NUT 8 mm - L.H.

27

6533790

ROD

28

1DM8

NUT

29

6533799

YOKE

30

6534700

PIN

31

6535011

WASHER

32

13JM10016

COTTERPIN

33

6534832

YOKE

34

6654206

BEARING

35

6EM60

WASHER, SPRING

36

1CM616

SCREW Was 1CM00615B - A

37

6534830

PLATE See Illustration BOOM SWING & BLADE CONTROL/ D1980 W/Ref. 38

38

6651908

BUSHING
